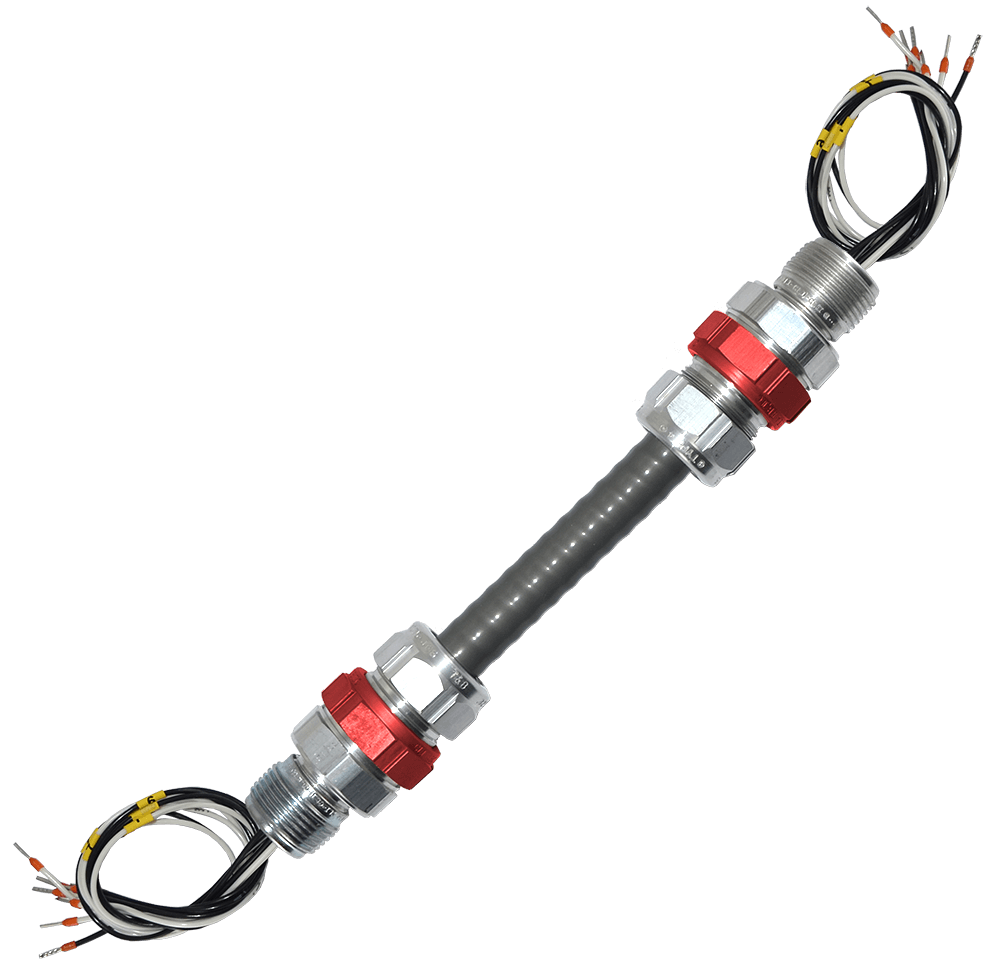

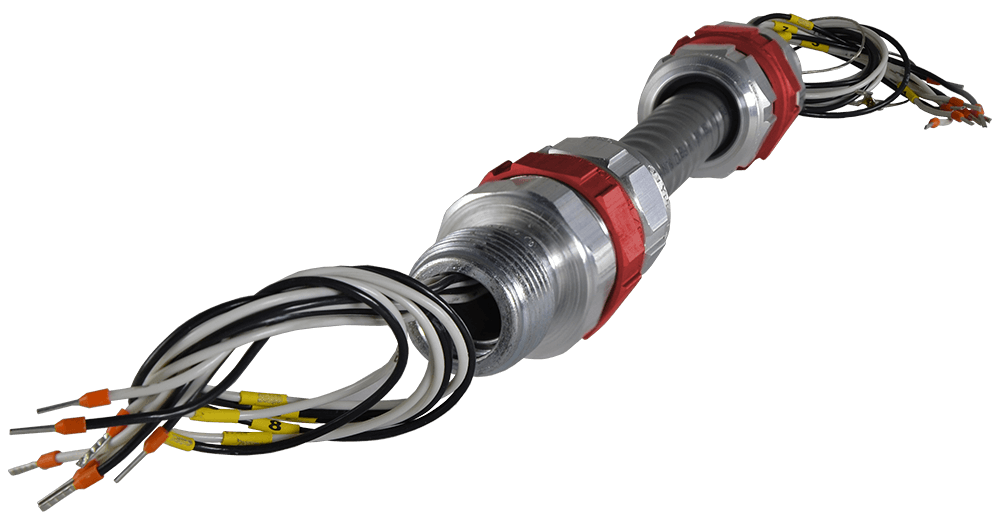

Instrumentation Cable, Flameproof, 2 x T&B Star Teck® Cable Fittings, A06-XP

Brand: Kayden Instruments
Cable Specifications
  • Instrumentation cable comes with two (2) factory sealed hazardous location Thomas & Betts Star Teck XP cable fittings. Assembly includes 2 sealed XP cable fittings, and sealing compound. Cable extra.
Construction
  • 7-strand concentric, Class B tinned copper, .020" PVC insulation, individual and over all foil shield, color & number coded, drain and Mylar separator, PVC inner jacket, aluminum interlock armour, PVC outer jacket.
Voltage Rating
  • 300 volts
Temperature Rating
  • 90° C to -40° C; insulation rated @ 105° C
Specifications
  • CSA Standard C22.2: No. 239, #174 Hazardous Locations, #0.3 Clause 4.31, low acid gas. Multiple shielded pairs meet the CSA "HLX" explosion test; FT4 flame test; IEEE-383 low flame spread.
show more
Images are representations only.
Cable Specifications
  • Instrumentation cable comes with two (2) factory sealed hazardous location Thomas & Betts Star Teck XP cable fittings. Assembly includes 2 sealed XP cable fittings, and sealing compound. Cable extra.
Construction
  • 7-strand concentric, Class B tinned copper, .020" PVC insulation, individual and over all foil shield, color & number coded, drain and Mylar separator, PVC inner jacket, aluminum interlock armour, PVC outer jacket.
Voltage Rating
  • 300 volts
Temperature Rating
  • 90° C to -40° C; insulation rated @ 105° C
Specifications
  • CSA Standard C22.2: No. 239, #174 Hazardous Locations, #0.3 Clause 4.31, low acid gas. Multiple shielded pairs meet the CSA "HLX" explosion test; FT4 flame test; IEEE-383 low flame spread.
20 models matching criteria
A06-XP-0005
T&B® Star Teck® Connectors, XP, Pair, 5-foot Flame-proof Cable
3 - 5 days
$237.94USD
Does not ship to US
A06-XP-0006
T&B® Star Teck® Connectors, XP, Pair, 6-foot Flame-proof Cable
3 - 5 days
$240.41USD
Does not ship to US
A06-XP-0007
T&B® Star Teck® Connectors, XP, Pair, 7-foot Flame-proof Cable
3 - 5 days
$242.88USD
Does not ship to US
A06-XP-0008
T&B® Star Teck® Connectors, XP, Pair, 8-foot Flame-proof Cable
3 - 5 days
$245.35USD
Does not ship to US
A06-XP-0010
T&B® Star Teck® Connectors, XP, Pair, 10-foot Flame-proof Cable
3 - 5 days
$250.29USD
Does not ship to US
A06-XP-10
T&B® Star Teck® Connectors, XP, Pair, (Installed on Cable)
3 - 5 days
$250.29USD
Does not ship to US
A06-XP-0011
T&B® Star Teck® Connectors, XP, Pair, 11-foot Flame-proof Cable
3 - 5 days
$252.76USD
Does not ship to US
A06-XP-0012
T&B® Star Teck® Connectors, XP, Pair, 12-foot Flame-proof Cable
3 - 5 days
$255.23USD
Does not ship to US
A06-XP-0050
T&B® Star Teck® Connectors, XP, Pair, 50-foot Flame-proof Cable
3 - 5 days
$259.34USD
Does not ship to US
A06-XP-0015
T&B® Star Teck® Connectors, XP, Pair, 15-foot Flame-proof Cable
3 - 5 days
$262.64USD
Does not ship to US
A06-XP-0016
T&B® Star Teck® Connectors, XP, Pair, 16-foot Flame-proof Cable
3 - 5 days
$265.11USD
Does not ship to US
A06-XP-0020
T&B® Star Teck® Connectors, XP, Pair, 20-foot Flame-proof Cable
3 - 5 days
$274.99USD
Does not ship to US
A06-XP-0025
T&B® Star Teck® Connectors, XP, Pair, 25-foot Flame-proof Cable
3 - 5 days
$287.34USD
Does not ship to US
A06-XP-0030
T&B® Star Teck® Connectors, XP, Pair, 30-foot Flame-proof Cable
3 - 5 days
$299.69USD
Does not ship to US
A06-XP-0035
T&B® Star Teck® Connectors, XP, Pair, 35-foot Flame-proof Cable
3 - 5 days
$299.69USD
Does not ship to US
A06-XP-0040
T&B® Star Teck® Connectors, XP, Pair, 40-foot Flame-proof Cable
3 - 5 days
$312.04USD
Does not ship to US
A06-XP-0100
T&B® Star Teck® Connectors, XP, Pair, 100-foot Flame-proof Cable
3 - 5 days
$341.67USD
Does not ship to US
A06-XP-0060
T&B® Star Teck® Connectors, XP, Pair, 60-foot Flame-proof Cable
3 - 5 days
$361.43USD
Does not ship to US
A06-XP-0135
T&B® Star Teck® Connectors, XP, Pair, 135-foot Flame-proof Cable
3 - 5 days
$559.03USD
Does not ship to US
A06-XP-0200
T&B® Star Teck® Connectors, XP, Pair, 200-foot Flame-proof Cable
3 - 5 days
$707.23USD
Does not ship to US

A06-XP Cable

Cable Length

Specifications

Approvals & Certifications

  • CSA Standard C22.2: No. 239, #174 Hazardous Locations, #0.3 Clause 4.31, Low Acid Gas. Muliple Shielded Paris Meet the CSA "HLX" Explosion Test, FT4 Flame Test, IEEE-383 Low Flame Spread.

Materials of Construction

  • 7-Strand Concentric, Class B Tinned Copper, .020" PVC Insulation, Individual & over All Foil Shield, Color & Number Coded, Drain & Mylar Separator, PVC Inner Jacket Aluminum Interlock Armour, PVC Out Jacket.

Operating Temperature

  • -40° to 90° C (-40° to 194° F), Insulation Rated at 105° C (221° F)

Operating Voltages

  • Rating: 300 Volts

Standard Features

  • Cable Comes with Two Factory Sealed Hazardous Location Thomas & Betts Star Teck XP Cable Fitting. Includes 2 Sealed XP Cable Fittings, & Sealing Compound.
