Description

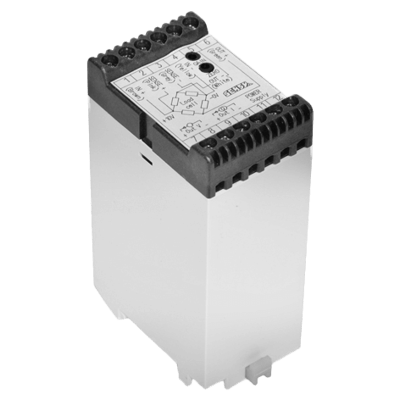

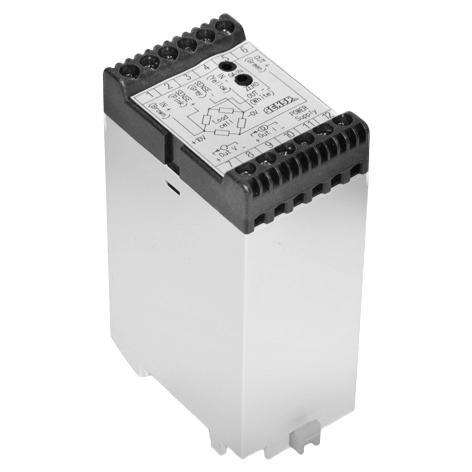

The conditioner - amplifier COND-A420 provides standardized signals in current and voltage from every load cells, force transducer and torque sensor based on the strain-gauge technology.
Features
- Input range: Wheatstone bridge (4 or 6-Wires connection (sense))
- Output: 4(0) to 20 mA and 0-10 V (simultaneously)
- DIN rail mouting
Specifications
Specifications
Brand
Approvals & Certifications
- CE
Bandwidth
- 0 to 10 Hz (-3 dB, 12 dB/Octave)
Consumption
- 3 VA
Environmental Protection
- IP20
Input
- 0.5-2 mV/V
Linearity
- <± 0.01% of Full Scale - Linearity Error
Mounting
- DIN Rail EN 50022
Non-Linearity
- ≤ ± 0.01% of Full Scale
Output
- Output Current: 0 to 20 mA (Load Resistance ≤ 800 ohms)
- Output Current: 4-20 mA (Load Resistance ≤ 800 ohms)
- Output Tension: 0-10 V (Load Resistance ≥ 1,000 ohms)
Power Supply
- 230 Vac (50/60 Hz) (3 VA)
- 24 Vdc (3 W)
Sensor Excitation
- 10 Vdc (120 mA - Maximum
Service Temperature
- -10° to 60° C (14° to 140° F)
Storage Temperature
- -30° to 80° C (-22° to 176° F)
Temperature Coefficient
- <± 0.06% of Full Scale/10° C (18° F) - Temperature Coefficient of the Sensiitivity
- <± 0.2% of Full Scale/10° C (18° F) - Temperature Coefficient of Zero Signal
Thermal Drift
- Thermal Span Drift: ≤ ± 60 ppm / °C of Signal
- Thermal Zero Drift: ≤ ± 200 ppm / °C of Full Scale
Documentation
Documentation
Reviews (0)
Review this product and let us know your experiences
Write a ReviewQ & A (0)
Similar Products

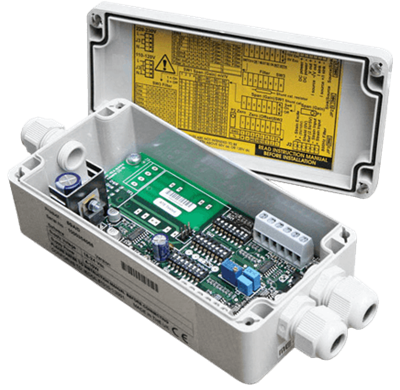

COND-SGA Conditioner - Amplifier
Sensy S.A.

INDI-PSD Hand Held Display for Strain Gauge Based Tranducer
Sensy S.A.

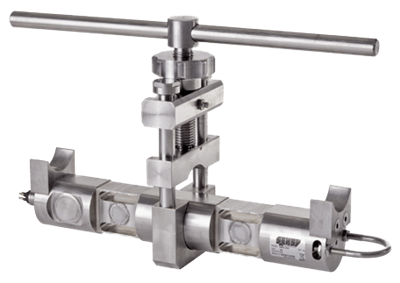

5560S/5565S Static Line Tensiometer
Sensy S.A.

5910 Low Profile Compression Load Cell
Sensy S.A.

INDI-12390 Digital Panel Meter
Sensy S.A.

5180/5182 Compression Washer Load Cell
Sensy S.A.

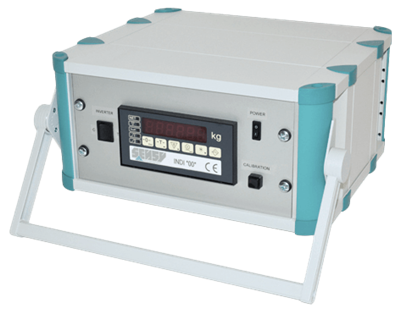

INDI-00 Display for Reference Force Transducer
Sensy S.A.

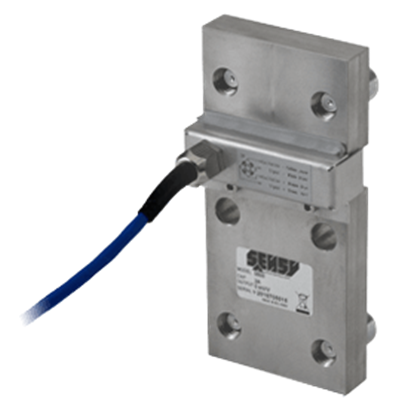

5500 Wire Rope Load Cell
