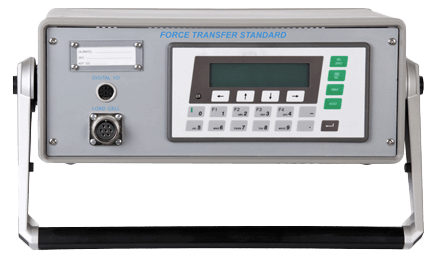

INDI-ISO376 Indicator for Reference Force Transducer

Brand: Sensy S.A.
The INDI-ISO376 is a very high accuracy portable indicator designed to be used in combination with standard reference force transducers with accuracy class 0.5 and 00 following the norm ISO376.
Features
  • Very high accuracy: 0.01%
  • High resolution
  • 6-Wires connection
  • Options:
    • Transportation case
    • Acquisition and managment software
show more
Images are representations only.
The INDI-ISO376 is a very high accuracy portable indicator designed to be used in combination with standard reference force transducers with accuracy class 0.5 and 00 following the norm ISO376.
Features
  • Very high accuracy: 0.01%
  • High resolution
  • 6-Wires connection
  • Options:
    • Transportation case
    • Acquisition and managment software

Specifications

Brand

Accuracy

  • ± 0.01%

Approvals & Certifications

  • CE
  • ISO 376

Communication

  • Modbus RTU
  • RS-232
  • RS-485

Display

  • 6-Digit Display

Environmental Protection

  • IP54

Input

  • 1-3.3 mV/V

Linearity

  • ≤ 0.002% of Full Scale - Linearity Error

Power Supply

  • 110 Vac
  • 240 Vac

Resolution

  • 1,000,000 Div. - Internal
  • 10,000 Div. - Internal

Sensor Excitation

  • 10 Vdc

Service Temperature

  • -10° to +50° C (14° to 122° F)

Storage Temperature

  • -25° to 85° C (-13° to 185° F)

Temperature Coefficient

  • < 0.001% of Full Scale/10° C (18° F) - Temperature Coefficient of Zero Signal
  • < 0.0015% of Full Scale/10° C (18° F) - Temperature Coefficient of the Sensitivity
