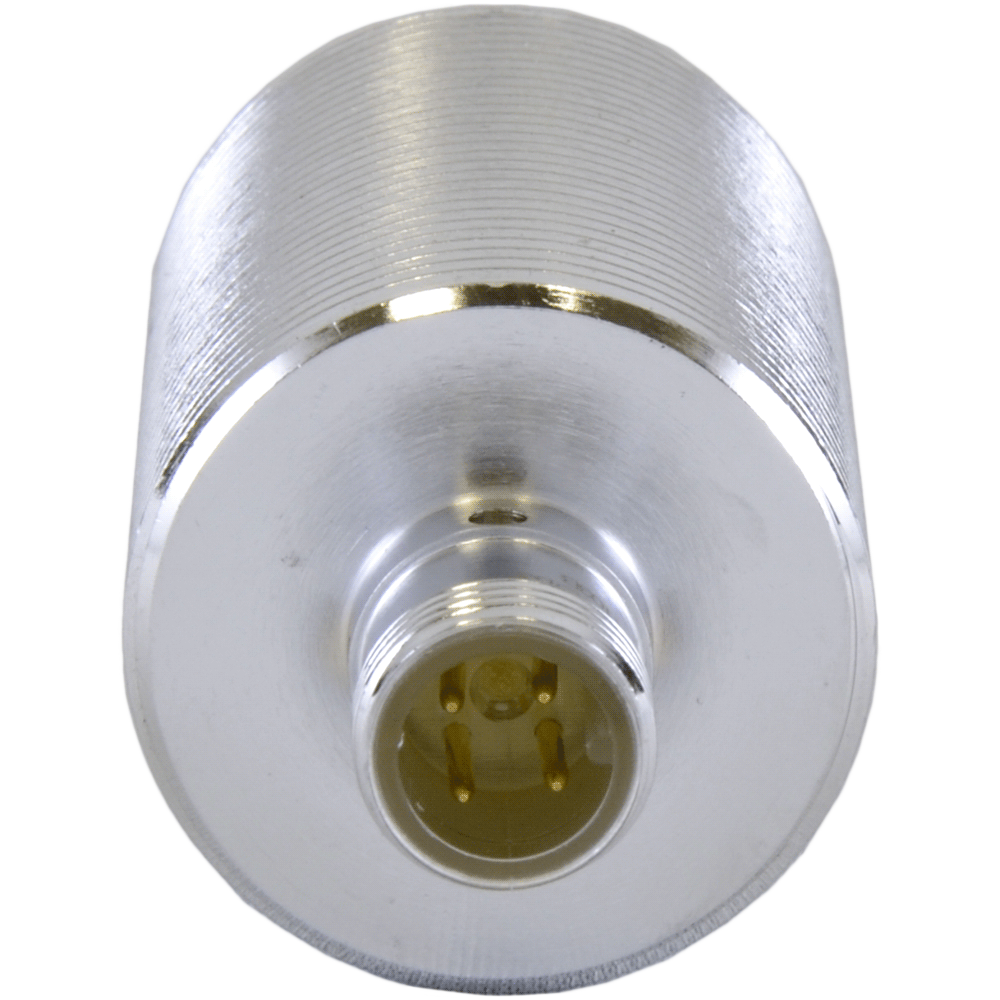

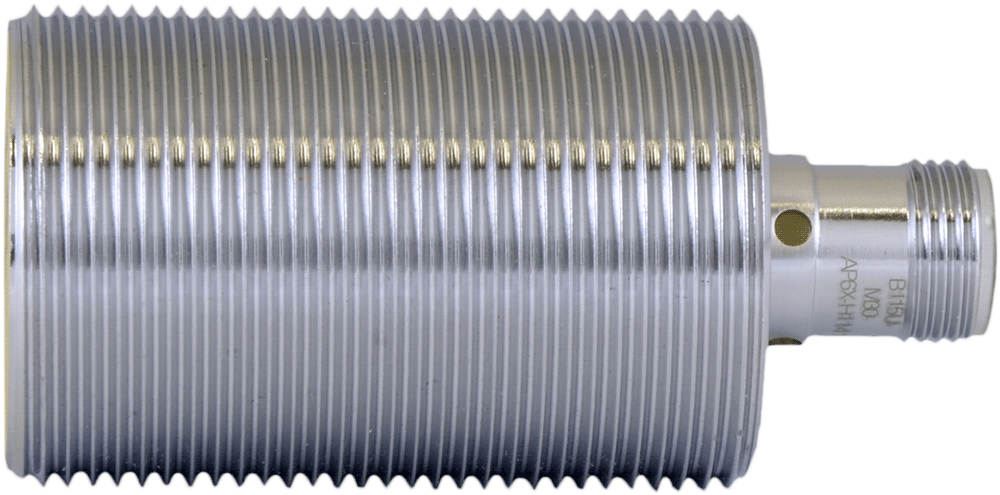

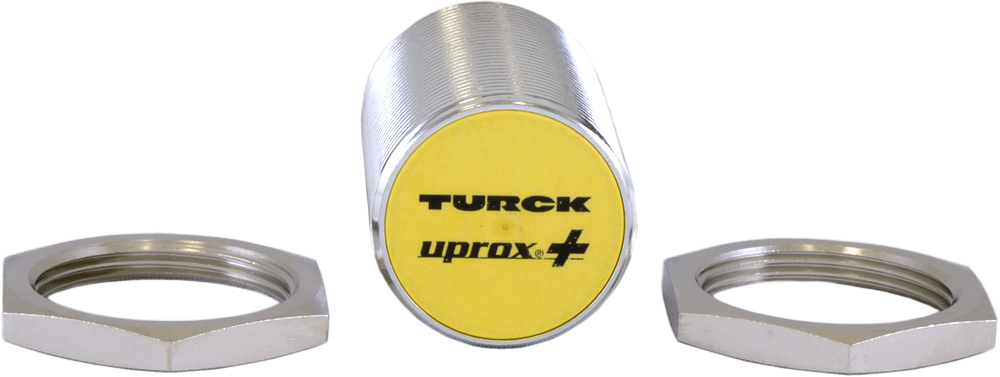

Images are representations only.

Proximity Sensor

Brand: Turck
Features
  • Mounting:
    • Embeddable (Shielded)
    • Non-Embeddable (Unshielded)
  • Sensor Operation:
    • Inductive
    • Inductive Magnet Operated
  • Operating Distance: 1 to 30 mm
  • Housing Shape:
    • Barrel
  • Temperature Range:
    • Operating: -25° to +70° C (-13° to +158° F)
    • Extended Range to -40° C (-40° F) Available
  • Housing Material:
    • Plastic
    • Brass, Chrome Plated
    • Stainless Steel
  • Output Function:
    • Normally Open
    • Normally Closed
    • NAMUR
  • Connectivity:
    • Quick-Connect
    • Potted Cable
  • Intrinsically Safe, Explosion Proof
  • FM, CFM, CSA, ATEX
show more
Features
  • Mounting:
    • Embeddable (Shielded)
    • Non-Embeddable (Unshielded)
  • Sensor Operation:
    • Inductive
    • Inductive Magnet Operated
  • Operating Distance: 1 to 30 mm
  • Housing Shape:
    • Barrel
  • Temperature Range:
    • Operating: -25° to +70° C (-13° to +158° F)
    • Extended Range to -40° C (-40° F) Available
  • Housing Material:
    • Plastic
    • Brass, Chrome Plated
    • Stainless Steel
  • Output Function:
    • Normally Open
    • Normally Closed
    • NAMUR
  • Connectivity:
    • Quick-Connect
    • Potted Cable
  • Intrinsically Safe, Explosion Proof
  • FM, CFM, CSA, ATEX
301 models matching criteria
BIM-UNT-AN6X
TURCK Proximity Sensor, Inductive Magnetic Cylinder Position, NO, NPN, 10-30 VDC, NCNR View More
  • B: Embeddable
  • IM: inductive magnet operated
  • UNT: Plastic, groove mount or strap-on; active face on end
  • A: Normally Open (N.O.)
  • N: NPN Transistor (current sinking)
  • 6: 10-30 VDC, polarity protected, pulsed SCP
  • X: 1 LED
50+ In Stock
Non-Cancellable / Non-Refundable
$106.27 USD
$15.51 Shipping
BI1.5-EG08-Y1-V1131
TURCK 2-Wire Inductive Sensor, SST, M8 x 1 Housing, 1.5mm Sensing Range, DC, NCNR View More
  • B: Embeddable
  • I: Inductive
  • 1.5: Rated Operating Distance (mm)
  • E: Stainless Steel Housing
  • G: full threading, generally chrome plated brass
  • 08: Housing Diameter or Height (mm)
  • Y1: Output Function: NAMUR output, requires switching amplifier
  • V1: picofast ®, snap and M8x1, male (Q08 only)
  • 1: Straight connector
  • 3: Number of Pins
  • 1: Standard wiring
2 In Stock
Non-Cancellable / Non-Refundable
$106.27 USD
$15.51 Shipping
BID 2-G180-Y0-H1141/S212
TURCK 2-Wire Inductive High Pressure Sensor, 18mm, Embeddable, eurofast, NAMUR, NCNR View More
  • BID: High Pressure Sensor
  • 2: Rated Operating Distance (mm)
  • G: Full threading, generally chrome plated brass
  • 180: Housing Diameter or Height (mm)
  • Y0: NAMUR output, requires switching amplifier
  • H1: eurofast ®, M12x1, metal or plastic, male
  • 1: straight Connector
  • 4: Number of Pins
  • 1: standard wiring
  • /S212: BID type high pressure hydraulic switch designation
2 In Stock
NI15-EM30E-Y0X-H1141
TURCK 2-Wire Inductive Sensor, M30 Housing, 15mm Range, NAMUR, NCNR View More
  • N: Mounting: Non-embeddable
  • I: Principle of Operation: Inductive
  • 15: Rated Operation Distance (mm)
  • E: Housing Material Modifier: Stainless Steel,
  • M: Housing Style: Partial threading, chrome plated brass.
  • 30: Housing Diameter or Height: (mm)
  • E: Secondary Barrel Modifier: Extended barrel length
  • Y0: Output Function: NAMUR Output, requires switching amplifier
  • X: Number of LED's: 1 LED
  • H1: Connector Family: eurofast, M12x1, metal or plastic, male
  • 1: Connector/Sensor Transition: 1 = straight
  • 4: Number of Pins: 4 = 4
  • 1: Factory Code: 1 = standard wiring
19 In Stock
BI 5-EM18-Y1X-H1141
TURCK 2-Wire Inductive Sensor, 18mm Housing, 5mm Sensing Range, SST, Embeddable, NAMUR, NCNR View More
  • B: Embeddable
  • I: Inductive
  • 5: Rated Operating Distance (mm)
  • E: Stainless Steel
  • M: partial threading, chrome plated brass
  • 18: Housing Diameter or Height (mm)
  • Y1: NAMUR output, requires switching amplifier, ATEX approved
  • X: 1 LED
  • H1: eurofast ®, M12x1, metal or plastic, male
  • 1: Straight Connector
  • 4: Number of Pins
  • 1: non-standard wiring
3 In Stock
BI15-M30-AN6X-H1141
TURCK 3-Wire Inductive Sensor, M30 x 1.5 Housing, 15mm Sensing Range, DC View More
  • B: Embeddable
  • I: Inductive
  • 15: Rated Operating Distance (mm)
  • M: Partial Threading, Chrome Plated Brass
  • 30: Housing Diameter or Height (mm)
  • A: Normally Open (N.O.)
  • N: NPN Transistor (current sinking)
  • 6: 10-30 VDC, polarity protected, pulsed SCP
  • X: 1 LED
  • H1: eurofast connector, M12 x 1, metal or plastic, male
  • 1: Straight Connector/Sensor Transition
  • 4: Number of Pins
  • 1: Standard Wiring Factory Code
2 - 8 weeks
Non-Cancellable / Non-Refundable
$148.93 USD
$15.51 Shipping
NI15-EM30-Y1X-H1141
TURCK 2-Wire Inductive Sensor, Non-embeddible, M30 Housing, 15mm Range, NAMUR View More
  • N: Mounting: Non-embeddable
  • I: Principle of Operation: Inductive
  • 15: Rated Operation Distance (mm)
  • E: Housing Material Modifier: Stainless Steel,
  • M: Housing Style: Partial threading, chrome plated brass.
  • 30: Housing Diameter or Height: (mm)
  • Y1: Output Function: NAMUR Output, requires switching amplifier
  • X: Number of LED's: 1 LED
  • H1: Connector Family: eurofast, M12x1, metal or plastic, male
  • 1: Connector/Sensor Transition: 1 = straight
  • 4: Number of Pins: 4 = 4
  • 1: Factory Code: 1 = standard wiring
2 - 8 weeks
$130.32 USD
$15.51 Shipping
BI 5-M18E-Y1X-H1141
TURCK 2-Wire Inductive Sensor, Extended Length Barrel - 72mm, Embeddable, eurofast, NAMUR, NCNR View More
  • B: Embeddable (Shielded) Sensor
  • I: Inductive
  • 5: Rated Operating Distance (mm)
  • M: partial threading, chrome plated brass
  • 18: Housing Diameter or Height (mm)
  • E: Extended Barrel Length
  • Y1: NAMUR output, requires switching amplifier, ATEX approved
  • X: 1 LED
  • H1: Connector Family: Eurofast ®, M12x1, metal or plastic, male
  • 1: Connector/Sensor Transition: Straight
  • 4: Number of Pins
  • 1: Factory Code: Standard Wiring
2 - 8 weeks
NI100U-K90SR-VP4X2/M20
TURCK 4-Wire Inductive Uprox Sensor, Straight Term. Chamber, 100mm Range, DC PNP, M20, NCNR View More
  • Mounting:
    • Non-Embeddable (Unshielded)
  • Sensor Operation:
    • Inductive, Uprox+
  • Operating Distance: 100 mm
  • Housing:
    • Slot Sensor, Plastic
    • 90mm, straight terminal chamber
    • 2 LEDs
  • Output:
    • Complementary Outputs: one NO, one NC
    • PNP Transistor (current sourcing)
    • 10-65 VDC, polarity protected, pulsed SCP
  • Connectivity:
    • M20 x 1.5 Female Connector
  • IP67 Class 2
2 - 8 weeks
BI 2-M12-Y1X-H1141
TURCK 2-Wire Inductive Sensor, 12mm, Embeddable, eurofast, DC, NAMUR, NCNR View More
  • B: Embeddable (Shielded) Sensor
  • I: Inductive
  • 2: Rated Operating Distance (mm)
  • M: Partial threading, chrome plated brass
  • 12: Housing Diameter or Height (mm)
  • Y1: NAMUR output, requires switching amplifier, ATEX approved
  • X: 1 LED
  • H1: eurofast ®, M12x1, metal or plastic, male
  • 1: straight Connector
  • 4: Number of Pins
  • 1: standard wiring
2 - 4 weeks

Specifications

Brand

Ambient Temperature Range

  • -25° to 70° C (-13° to 158° F)

Approvals & Certifications

  • ATEX
  • CSA
  • FM

Circuit Protection

  • None
  • Pulsed Short Circuit Protection

Connection Pin-Out

  • 3-Pin
  • 4-Pin

Connector Shape

  • Straight
  • Straight, with Adapter

Enclosure, Body Material

  • Chrome Plated Brass
  • Stainless Steel

Housing Size

  • 5 to 30 mm

Housing Style

  • Barrel, Full Threading
  • Barrel, Partially Threaded
  • Extended Barrel Length
  • Short Barrel Length

Indication

  • LED Indicators for Readiness, Switching, & Error
  • None

Mounting

  • Embeddable
  • Nonembeddable

Options

  • Low Temperature: -40° C (-40° F)

Output

  • 2-10 mV/V
  • 4-20 mA

Output Format

  • 2-Wire AC
  • 2-Wire DC (Transistor Output)
  • NPN Transistor (Current Sinking)
  • PNP Transistor (Current Sourcing)

Output Function

  • Complementary Outputs (One Normally Open, One Normally Closed)
  • NAMUR Output
  • Normally Closed
  • Normally Open

Principle of Operation

  • Inductive
  • Inductive Magnetic

Sensing Range

  • 1 to 30 mm

Sensor, Probe Connection

  • eurofast Male

Sensor, Probe Style

  • Ferrite Core Sensor
  • Uprox Sensor

Wired Connection

  • Connectorized Sensor
  • Potted Cable
