Images are representations only.

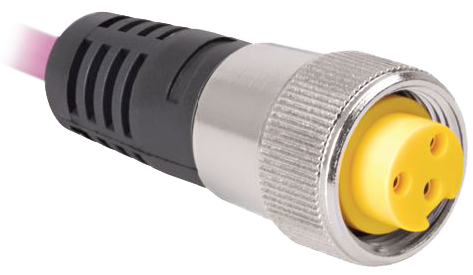

HART minifast Double-Ended Cordset

Brand: Turck, Inc
Features
  • Connector
    • Female or Male
    • Straight or Right Angle
  • Options
    • Cable
      • Shielded Braided
      • PVC Jacket
      • Foil/Drain
    • Connector
      • Nickle Plated Brass
      • Nylon
      • 316 Stainless Steel
Features
  • Connector
    • Female or Male
    • Straight or Right Angle
  • Options
    • Cable
      • Shielded Braided
      • PVC Jacket
      • Foil/Drain
    • Connector
      • Nickle Plated Brass
      • Nylon
      • 316 Stainless Steel
Close

Specifications

Brand

Approvals & Certifications

  • CSA
  • cUL
  • UL

Connection Material

  • Nickel-Plated Brass
  • Nylon
  • Stainless Steel

Connection Pin-Out

  • 3-Pin
  • 4-Pin

Connection Style

  • minifast

Connector Shape

  • Right Angle
  • Straight

Environmental Protection

  • IP10
  • IP54
  • IP66
  • NEMA 1, 3, 4, 6P / IP10, 54, 66
  • NEMA 3
  • NEMA 4
  • NEMA 6P

Operating Temperature

  • -30° to 80° C (-22° to 176° F)

Version / Leadwires

  • 2-Wire
  • 30-026: 2 x 18 AWG BU, BN, ITC/PLTC PVC
  • 36: 3 x 16 AWG GN, BK, WH
  • 3-Wire
  • 40-330: 3 x 18 AWG BU, BN, GN/YE, ITC-Exposed PLTC PVC
  • 40-950 & 40-949: 3 x 18 AWG BU, BN, GN/YE, ITC/PLTC PVC
  • 40A-947: 3 x 18 AWG BU, BN, GN/YE, ITC/PLTC Armor Plum Outer
  • 40A-952: 3 x 18 AWG BU, BN, GN/YE, ITC/PLTC Armor
  • 45-098: 3 x 16 AWG WH, BK, GN, ITC/PLTC PVC
