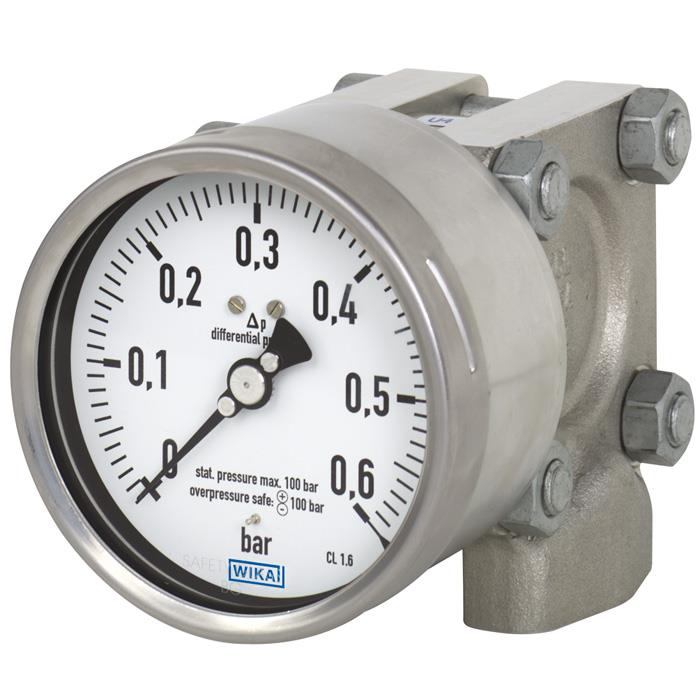

Model 732.14, 762.14 Differential Pressure Gauge

Brand: WIKA Instruments Ltd.
These differential pressure gauges are made of highly corrosion-resistant stainless steel. A high overpressure safety is achieved by the all-metal construction and the close-fitting design of the pressure measuring diaphragm.

With its high-grade stainless steel construction and robust design this pressure gauge is geared to chemical and process engineering applications.
Features
  • Differential pressure measuring ranges from 0 … 60 mbar.
  • High working pressure (static pressure) and high overload safety up to 40, 100, 250 or 400 bar.
  • Hydraulic cushioning protection against rapid pressure changes.
  • Compatible with switch contacts and transmitters.
  • Model 762.14: Monel version.
show more
Images are representations only.
These differential pressure gauges are made of highly corrosion-resistant stainless steel. A high overpressure safety is achieved by the all-metal construction and the close-fitting design of the pressure measuring diaphragm.

With its high-grade stainless steel construction and robust design this pressure gauge is geared to chemical and process engineering applications.
Features
  • Differential pressure measuring ranges from 0 … 60 mbar.
  • High working pressure (static pressure) and high overload safety up to 40, 100, 250 or 400 bar.
  • Hydraulic cushioning protection against rapid pressure changes.
  • Compatible with switch contacts and transmitters.
  • Model 762.14: Monel version.

Specifications

Environmental Protection

  • IP54

Certifications & Approvals

  • KazInMetr
  • BelGIM
  • UkrSEPRO
  • CRN
  • CPA
  • MTSCHS
  • GOST
  • EAC
  • ATEX
  • CE

Case Material

  • Stainless steel

Dial Material

  • Aluminium, white, black lettering

Seal Material

  • FPM/FKM (wetted)

Window Material

  • Laminated safety glass

Fill Fluid

  • Silicone oil, Exception: Glycerine

Process Connection

  • G ½" female

Process Connection Material

  • Stainless steel, Steel

Scale Range

  • 0 to 250 mbar
  • 0 to 40 bar

Typical Applications

  • For measuring locations with a high differential pressure overload and/or high working pressures (static pressures), also in aggressive ambience
  • For gaseous, liquid, particulates-containing, viscous and aggressive media
  • Monitoring and control of pumps
  • Filter monitoring
  • Level measurement in closed tanks
