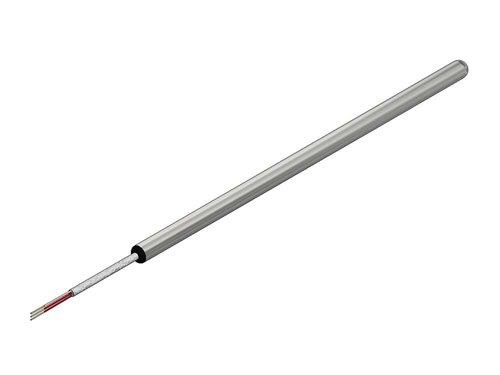

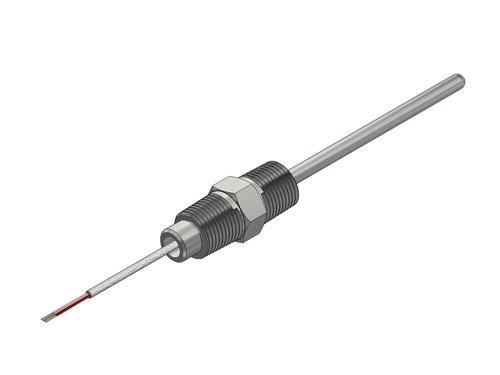

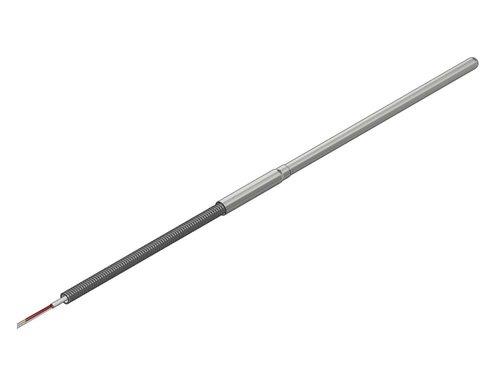

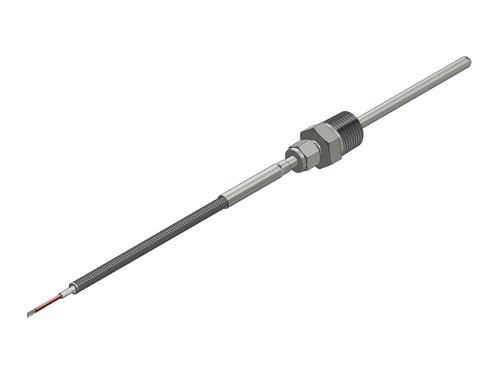

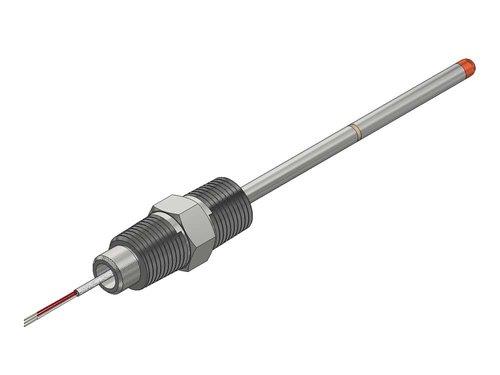

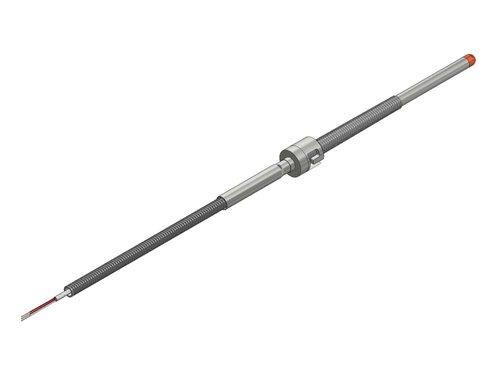

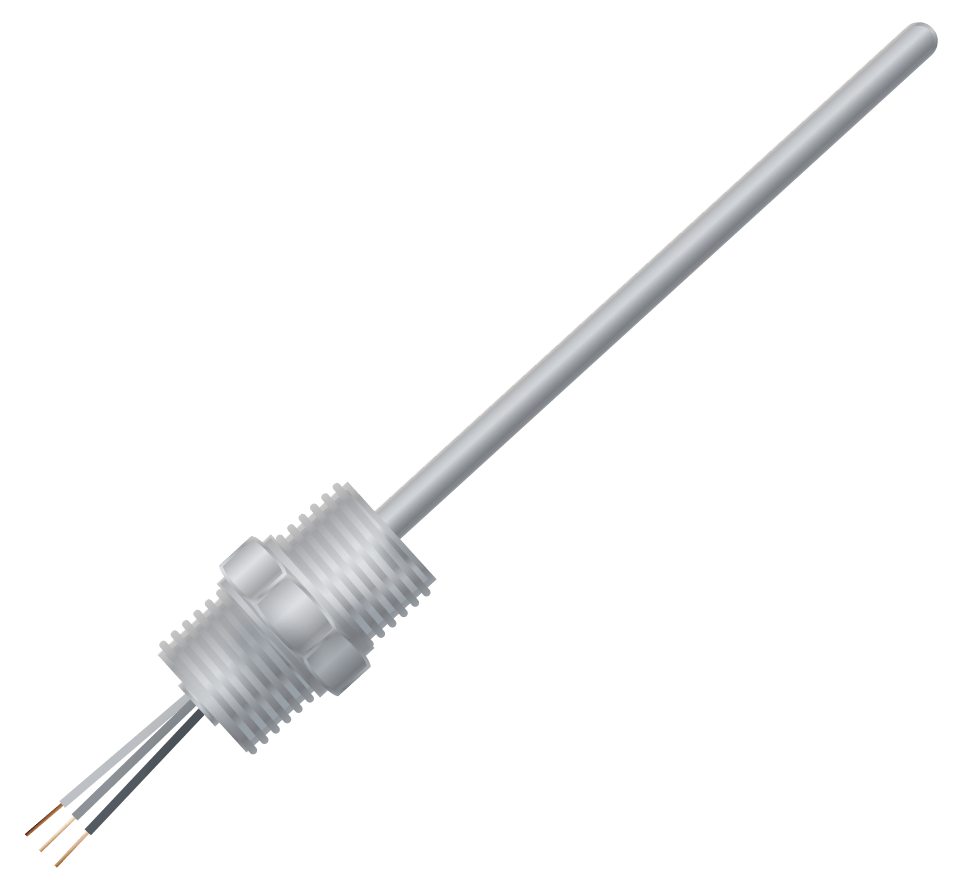

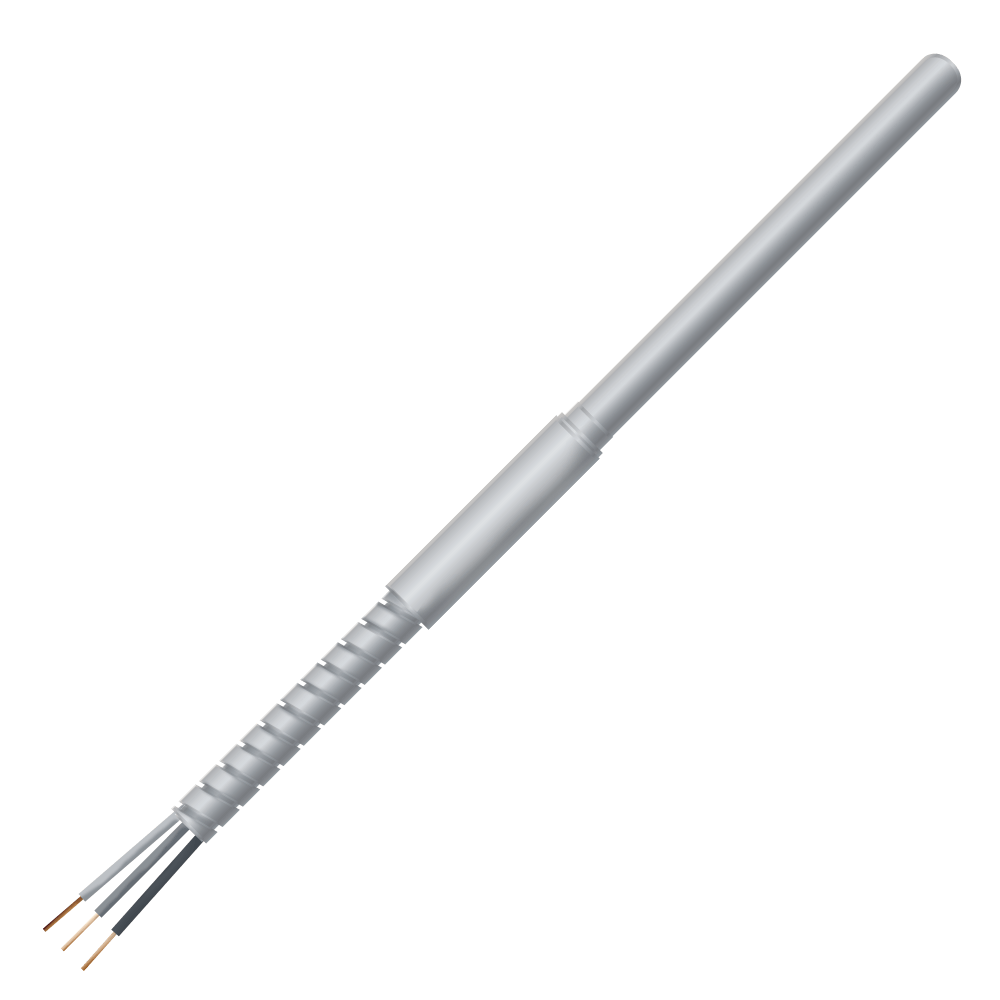

RT4 RTD Assembly

Brand: Aircom Instrumentation Ltd
  • Probe Style:
    • General-Purpose
    • Electrically Isolated
    • Tip Sensitive
    • Bayonet Style
    • Tip Sensitive & Electrically Isolated
    • Bayonet & Tip Sensitive
  • Element:
    • 100Ω Platinum
    • 120Ω Nickel
    • 10Ω Copper
    • Single / Dual Elements
  • Number of Lead wires: 2 to 4 (Compensated Loop w/ 4)
  • Probe Diameter: 1.25 mm to 2.5 mm (1/8" to 1/4")
  • Lead Options:
    • Teflon / Armored Teflon
    • Fiberglass / Armored Fiberglass
    • Standard 6" TFE
  • Termination:
    • Bare Ended Leads
    • Standard Connector
    • Mini Connector
    • Mini Head
  • Process Fitting:
    • Compression Fitting
    • Adjustable Spring
    • Fixed Hex Bushing
    • Spring Loaded Transmitter Bushing
    • Oil Seal Hex Bushing
  • Temperature Rating:
  • Low Temp 204°C (399°F) Max.
  • High Temp 482°C (899°F) Max.
  • High Temp & Vibration 850°C (1,562°F)
  • Probe Style:
    • General-Purpose
    • Electrically Isolated
    • Tip Sensitive
    • Bayonet Style
    • Tip Sensitive & Electrically Isolated
    • Bayonet & Tip Sensitive
  • Element:
    • 100Ω Platinum
    • 120Ω Nickel
    • 10Ω Copper
    • Single / Dual Elements
  • Number of Lead wires: 2 to 4 (Compensated Loop w/ 4)
  • Probe Diameter: 1.25 mm to 2.5 mm (1/8" to 1/4")
  • Lead Options:
    • Teflon / Armored Teflon
    • Fiberglass / Armored Fiberglass
    • Standard 6" TFE
  • Termination:
    • Bare Ended Leads
    • Standard Connector
    • Mini Connector
    • Mini Head
  • Process Fitting:
    • Compression Fitting
    • Adjustable Spring
    • Fixed Hex Bushing
    • Spring Loaded Transmitter Bushing
    • Oil Seal Hex Bushing
  • Temperature Rating:
  • Low Temp 204°C (399°F) Max.
  • High Temp 482°C (899°F) Max.
  • High Temp & Vibration 850°C (1,562°F)
Close

Specifications

Brand

Element

  • 10 ohms Copper 427 0.039 ohm/°C
  • 100 ohms Platinum 385 ± 0.01 %
  • 100 ohms Platinum 385 ± 0.1 %
  • 100 ohms Platinum 392 ± 0.1 %
  • 120 ohms Nickel 627 0.806 ohm/°C
  • Dual Elements
  • Single Element

Materials of Construction

  • 316 Stainless Steel

NPT Connection

  • 1" NPT Male
  • 1/2" NPT Male
  • 1/4" NPT Male
  • 1/8" NPT Male (with Standard Adapter)
  • 1-1/2" NPT Male
  • 3/4" NPT Male

Process Fitting Details

  • Adjustable Spring
  • Compression Fitting (1/4", 1/2", 3/4", 1", 1-1/2" NPT Male)
  • Fixed Hex Bushing (1/4", 1/2", 3/4", 1", 1-1/2" NPT Male)
  • Oil Seal Hex Bushing (1/4", 1/2", 3/4", 1", 1-1/2" NPT Male)
  • Spring Loaded Transmiter Bushing (1/4", 1/2", 3/4", 1", 1-1/2" NPT Male)

Process Temperature

  • -200° to 850° C (-328° to 1,562° F)

Sensor, Probe Diameter

  • 0.215" O.D.
  • 1/4" O.D.
  • 1/8" O.D.
  • 3/16" O.D.

UNF/UNC Connection

  • 3/8" NF Male (with Standard Adapter)

Version / Leadwires

  • 2-Wire
  • 3-Wire
  • 4-Wire
  • 4-Wire Compensated Loop
