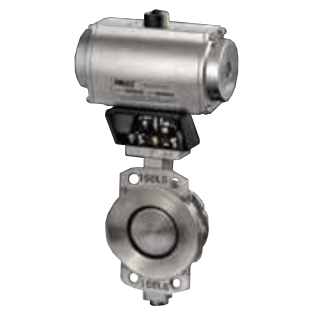

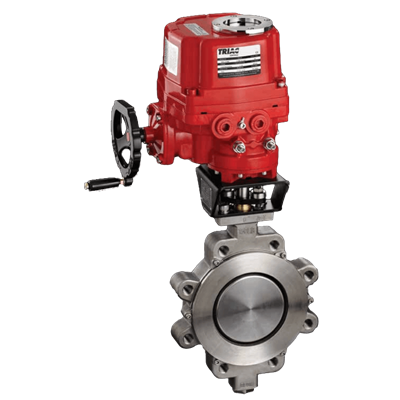

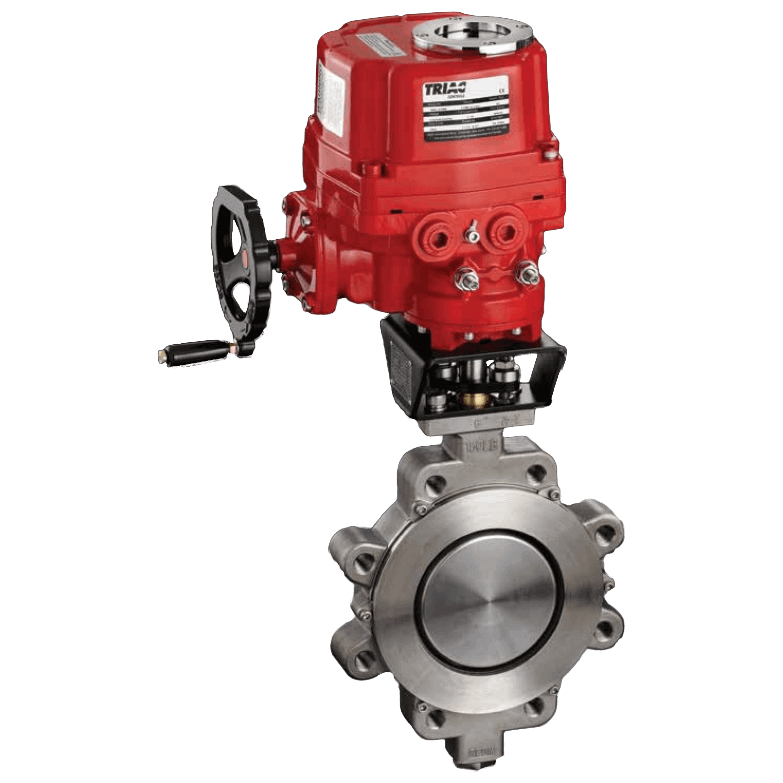

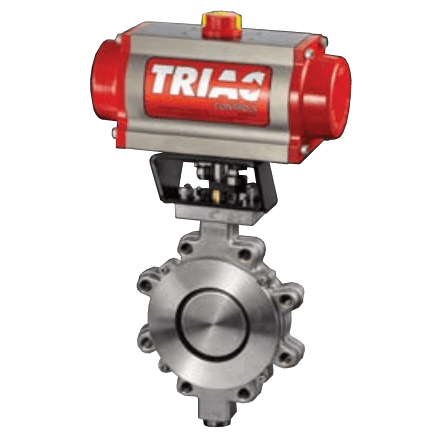

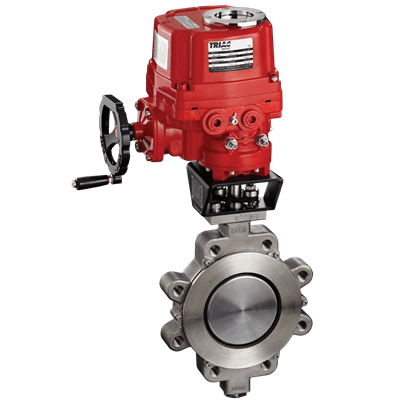

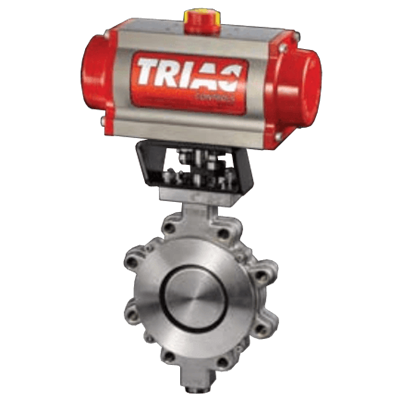

Power-Seal Performance Automated Butterfly Valve

Brand: A-T Controls, Inc.
Features:
  • Available inventory includes sizes 2" to 24".
  • Standard body materials are 316 SST or WCB. Application specific options include: Alloy 20, Monel, CD3MN, Hastelloy® C-276, Inconel® 625, Aluminum Bronze, LCB.
  • ANSI/ASME Class 150 and 300 Lug and Wafer.
  • Standard seat materials are RTFE, RTFE/316L SST (Firesafe), and 316L SST (metal seat). Application specific seat materials include: 50/50 STFE, PTFE, PEEK, UHMWPE, TFM-1600 and Inconel® 625.
  • Standard Stem Material is 17-4 pH. Other options include 316 SST or XM-19.
  • RTFE and Firesafe seat designs offer bubble-tight, bi-directional shutoff to full ANSI/ASME Class 150 and 300 standards. Metal seat design offers Class V shutoff.
  • Blow out proof stem design.
show more
Images are representations only.
Features:
  • Available inventory includes sizes 2" to 24".
  • Standard body materials are 316 SST or WCB. Application specific options include: Alloy 20, Monel, CD3MN, Hastelloy® C-276, Inconel® 625, Aluminum Bronze, LCB.
  • ANSI/ASME Class 150 and 300 Lug and Wafer.
  • Standard seat materials are RTFE, RTFE/316L SST (Firesafe), and 316L SST (metal seat). Application specific seat materials include: 50/50 STFE, PTFE, PEEK, UHMWPE, TFM-1600 and Inconel® 625.
  • Standard Stem Material is 17-4 pH. Other options include 316 SST or XM-19.
  • RTFE and Firesafe seat designs offer bubble-tight, bi-directional shutoff to full ANSI/ASME Class 150 and 300 standards. Metal seat design offers Class V shutoff.
  • Blow out proof stem design.

Power-Seal High Performance

Valve Series

Body Material

End Connection

Valve Size

Seat Material

Disc Material / Style

Stem Bearing

Operator

Stem Material

Packing Material

Actuator Type

Actuator

Actuator

Actuator

Actuator

Actuator

Actuator

Actuator Size

Actuator Size

Actuator Size

Actuator Size

Actuator Size

Actuator Size

Actuator Size

Actuator Size

Actuator Size (On/Off)

Actuator Size (On/Off)

Actuator Size (Modulating)

Actuator Size

Actuator Size (Modulating)

Actuator Size (Modulating)

Specifications

Actuator Type

  • Gear Operator
  • Hand Operated
  • Handwheel

Approvals & Certifications

  • ANSI-B16.10, B16.34
  • API-598/607/609
  • ASME-B16.5
  • FCI 70-2
  • MSS-SP-55
  • MSS-SP-68

Bearing Material

  • Bronze
  • Carbon Graphite

Cover Material

  • Stainless Steel - Bottom Cover

Disc Material

  • 316 Stainless Steel
  • Alloy 20 or Incoloy®
  • Aluminum Bronze
  • Carbon Steel (A351 Gr CF8M-316/LCB)
  • Hastelloy® C-276
  • Inconel® 625
  • Monel®
  • Stainless Steel (A351 Gr CF8M-316) - Disc Pin

Enclosure, Body Material

  • 316L Stainless Steel
  • Alloy 20 or Incoloy®
  • Aluminum Bronze
  • Carbon Steel (A216-WCB/LCB)
  • Cast Stainless Steel (CD3MN)
  • Hastelloy® C-276
  • Inconel® 625
  • Monel®
  • Stainless Steel (A351 Gr CF8M-316)

Flange Size - 10" (DN250)

  • 10" (DN250) - 150#
  • 10" (DN250) - 300#

Flange Size - 12" (DN300)

  • 12" (DN300) - 150#
  • 12" (DN300) - 300#

Flange Size - 14" (DN350)

  • 14" (DN350) - 150#
  • 14" (DN350) - 300#

Flange Size - 16" (DN400)

  • 16" (DN400) - 150#
  • 16" (DN400) - 300#

Flange Size - 18" (DN450)

  • 18" (DN450) - 150#
  • 18" (DN450) - 300#

Flange Size - 2" (DN50)

  • 2" (DN50) - 150#
  • 2" (DN50) - 300#

Flange Size - 20" (DN500)

  • 20" (DN500) - 150#
  • 20" (DN500) - 300#

Flange Size - 24" (DN600)

  • 24" (600) - 150#
  • 24" (600) - 300#

Flange Size - 3" (DN80)

  • 3" (DN80) - 150#
  • 3" (DN80) - 300#

Flange Size - 30" (DN750)

  • 30" (DN750) - 150#
  • 30" (DN750) - 300#

Flange Size - 36" (DN900)

  • 36" (DN900) - 150#
  • 36" (DN900) - 300#

Flange Size - 4" (DN100)

  • 4" (DN100) - 150#
  • 4" (DN100) - 300#

Flange Size - 42" (DN1050)

  • 42" (DN1050) - 150#
  • 42" (DN1050) - 300#

Flange Size - 48" (DN1200)

  • 48" (DN1200) - 150#
  • 48" (DN1200) - 300#

Flange Size - 5" (DN125)

  • 5" (DN125) - 150#
  • 5" (DN125) - 300#

Flange Size - 6" (DN150)

  • 6" (DN150) - 150#
  • 6" (DN150) - 300#

Flange Size - 8" (DN200)

  • 8" (DN200) - 150#
  • 8" (DN200) - 300#

Flow Rate

  • 105 to 96,185 Cv - ANSI Class 150
  • 97 to 48,225 Cv - ANSI Class 300

Gland Material

  • 304 Stainless Steel

Gland Packing Material

  • Carbon Steel - Gland Packing Flange
  • Stainless Steel - Packing Gland Nuts & Studs

Materials of Construction

  • 410 Stainless Steel - Thrust Bearing
  • Carbon Steel - Bracket Washer, Bracket, Belleville Washers & Low/Upper Bearing
  • Metaloplast (316 Stainless Steel+RTFE) - Lower/Upper Bearing
  • Stainless Steel - Clamp Plate (Wafer Only), Belleville Washer Cover

Mounting

  • ISO 5211

Nut & Bolt Material

  • Stainless Steel - Clamps, Clamp Bolt, Nuts, Studs

Packing Material

  • Graphite
  • PTFE Chevron

Pressure Range

  • psi: 0 to 740 (kPa: 0 to 5,100, bar: 0 to 51)

Process Connection Style

  • Lug
  • Wafer

Ring Material

  • Carbon Steel - Retainer Ring
  • Stainless Steel - Seat Ring

Seat/Seal Material

  • Seat Gasket: Graphite
  • Seat Gasket: PTFE
  • Seat: 316L Stainless Steel
  • Seat: 50/50 STFE
  • Seat: Inconel® 625
  • Seat: PEEK
  • Seat: RTFE
  • Seat: UHMWPE (Polyethylene)

Shaft Material

  • 316 Stainless Steel
  • 630 Stainless Steel
  • Inconel® 718
  • K-Monel®
  • Stainless Steel (XM-19 & Duplex 2205)

Stem Material

  • 316 Stainless Steel
  • 630 Stainless Steel
  • Stainless Steel (XM-19)

Temperature Range

  • -73° to 593° C (-100° to 1,100° F)

Torque

  • 135 to 59,600 In/Lbs - ANSI Class 150
  • 135 to 80,600 In/Lbs - ANSI Class 300

Valve Size

  • 2" to 48"
