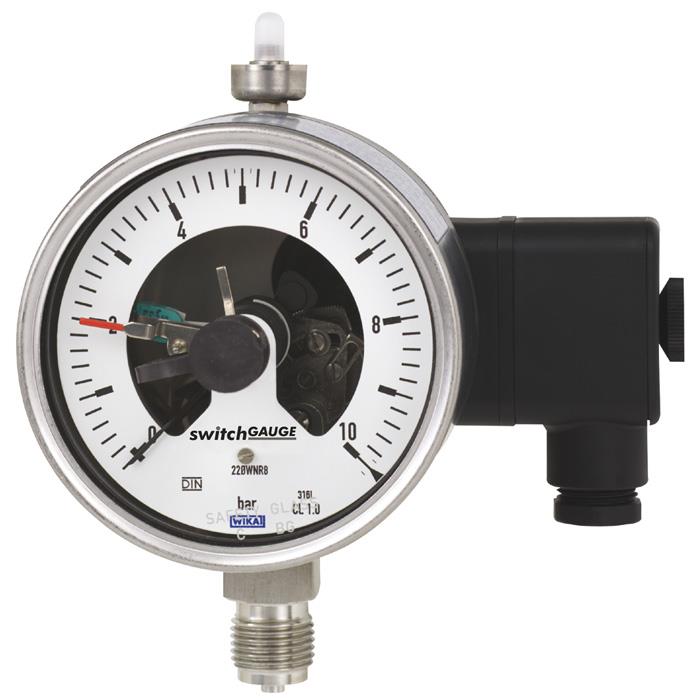

Bourdon Tube Pressure Gauge with Switch Contacts - PGS23.100, PGS23.160

Brand: WIKA Instruments Ltd.
Wherever the process pressure has to be indicated locally and, at the same time, circuits need to be switched, the model PGS23.1x0 switchGAUGE finds its use.
Features
  • Up to 4 switch contacts per instrument
  • Also available with case filling for high dynamic pressure loads or vibrations
  • Instruments with inductive contacts for use in hazardous areas
  • Instruments with contacts for PLC applications
  • Instruments optionally available in safety version S3 per EN 837
show more
Wherever the process pressure has to be indicated locally and, at the same time, circuits need to be switched, the model PGS23.1x0 switchGAUGE finds its use.
Features
  • Up to 4 switch contacts per instrument
  • Also available with case filling for high dynamic pressure loads or vibrations
  • Instruments with inductive contacts for use in hazardous areas
  • Instruments with contacts for PLC applications
  • Instruments optionally available in safety version S3 per EN 837

Specifications

Nominal Size in mm

  • 100
  • 160

Accuracy Class

  • 1.0

Scale Ranges

  • 0 to 0.6 bar [0 to 8.7 psi] to 0 to 1,600 bar [0 to 23,206 psi] other units (e.g. psi, kPa) available
  • or all other equivalent vacuum or combined pressure and vacuum ranges

Scale

  • Single scale
  • Option: Dual Scale

Pressure Limitation

  • Steady: Full scale value
  • Fluctuating: 0.9 x full scale value
  • Short time: 1.3 x full scale value

Connection Location

  • Lower mount (radial)
  • Lower back mount

Process Connection

  • G ½ B
  • G ¼ B
  • G ⅜ B
  • 1/2" NPT
  • M20 x 1.5

Permissible Temperature

  • Ambient: -20 ... +60° C [-4 ... 140° F]
  • Medium: +200° C [+392° F] max. with unfilled instruments, +100° C [+212° F] max. with filled instruments

Temperature Effect

  • When the temperature of the measuring system deviates from the reference temperature (+20° C): max. ±0.4 %/10 K of Full Scale Value

Case

  • Safety version S3 per EN837: With solid baffle wall (Solidfront) and blow-out back
  • Version S1 per EN 837: With blow-out device in case back

Case Filling

  • Without
  • Option: With case filling

Wetted Materials

  • Process connection, pressure element: Stainless steel 316L, option: Monel (model PGS26)

Non-Wetted Materials

  • Case, movement, bayonet ring: Stainless steel
  • Dial: Aluminium, white, black lettering
  • Instrument pointer: Aluminium, black
  • Set pointer: Aluminium, red
  • Window: Laminated safety glass

Ingress Protection Per IEC / EN 60529

  • IP65
  • Option: IP66

Electrical Connection

  • Cable socket PA 6, black
  • Per VDE 0110 insulation group C/250 V
  • Cable gland M20 x 1.5
  • Strain relief
  • 6 screw terminals + PE for conductor cross-section 2.5 mm²
  • For dimensions see page 9
  • others on request

Certifications & Approvals

  • CE
  • ATEX
  • GOST
  • CRN
  • IECEx
  • BelGIM
  • MTSCHS
  • KazInMetr

Typical Applications

  • Control and regulation of processes
  • Monitoring of plants and switching of circuits
  • For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive environments
  • Chemical industry, petrochemical industry, power plants, mining, on-/offshore, environmental technology, machine building and general plant construction
