Description
IME Model 108KN is a Battery Operated Digital Temperature Indicator which accepts a standard Pt100 RTD sensor and provides a crisp 4-digit LCD (approx height 1/2" or 12.5 mm). When compared to the archaic Bimetallic indicators, operating costs are reduced since just one device covers the entire range of local temperature measurement -200° to 850° C (-328° to 1,562° F) with higher accuracy.
Model 108KN is designed for use in process industries where vibration, inclement weather and corrosive atmospheres prevail. The electronics are enclosed in a low cost UV resistant polycarbonate housing, which meets NEMA 4X and IP66/68 requirements.
Features
- Input Pt100 RTD
- 4-digit LCD display on ° C or ° F
- Polycarbonate enclosure
- Designed to replace bimetallic sensors
- Wall or pipe mounting
Configure
108KN
Instrument Connection / Conduit Size
Thread Size and Cable Diameter

Accessories

U Bolt with Nuts and Washers

Specifications
Specifications
Accuracy
- Indication Accuracy: Better than ± 0.1° C (0.18° F)
Battery Life
- 24 Months
Diameter
- Cable Size: 0.19 to 0.70" (5 to 18 mm)
Display
- 4-Digits LCD Display
Electrical Connectors
- Cable Gland: 1/2" NPT Female
- Cable Gland: 1/2" NPT Male
- Cable Gland: 3/4" NPT Female
- Cable Gland: 3/4" NPT Male
- M20 x 1.5P
Enclosure, Body Material
- UV Resistant Polycarbonate
Environmental Protection
- IP66
- IP68
- NEMA 4X
Instrument Connection
- 1/2" BSP Female
- 1/2" NPT Female
- M16 x 2P
Mounting
- 2" Pipe Mounting
- Field Mounting
- Wall Mounting
Operating Temperature
- Ambient: -20° to 60° C (-4° to 140° F)
O-Ring Material
- Hydrogenated Nitrile
Power Requirement
- Lithium AA Cells Batteries
RTD Type
- Pt100
Temperature Range
- -200° to 850° C (-328° to 1,562° F)
Documentation
Documentation
Reviews (0)
Review this product and let us know your experiences
Write a ReviewQ & A (0)
Similar Products
/-8080KN-Battery-Operated-Digital-Temperature-Indicator/Thumbs/400_main_IM_Model_8080KN_Battery_Operated_Digital_Temperature_Indicator.png)
Model 8080KN Battery Operated Digital Temperature Indicator
International Metal Engineering (IME)
/108RR-Field-Mounted-Process-Indicator/Thumbs/400_main_IM_108RR_Field_Mounted_Process_Indicator.png)
108RR Field Mounted Process Indicator
International Metal Engineering (IME)
/108EL-Field-Mounted-Loop-Powered-Indicator/Thumbs/400_main_IM_108EL_Field_Mounted_Loop_Powered_Indicator.png)
108EL Field Mounted Loop Powered Indicator
International Metal Engineering (IME)
/-9080MK-Field-Mounted-Loop-Powered-Indicator/Thumbs/400_main_IM_Model_9080MK_Field_Mounted_Loop_Powered_Indicator.png)
Model 9080MK Field Mounted Loop Powered Indicator
International Metal Engineering (IME)
8080MN Model Digital Process Indicator
International Metal Engineering (IME)

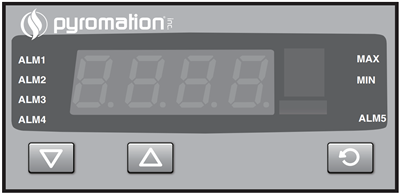

Series 810 1/8 DIN Digital Indicator
