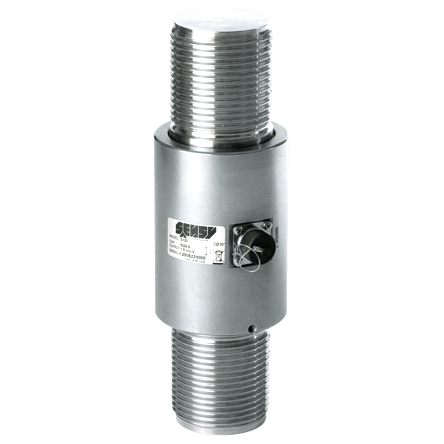

5100/5105 Tension & Compression Load Cell

Brand: Sensy S.A.
Universal load cells combining accuracy, sturdiness and easiness to install.
Features
  • Wide range of capacities: 10 kN (1 t) up to 30 MN (3000 t)
  • Easy to install, compact design
  • Protection IP 66
  • Material: stainless steel (5100), nickel plated steel (5105)
  • Available options:
    • High service temperature (180° C)
    • ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80° C Da
    • 0-10 V or 4 to 20 mA output signal
  • Also available as standard reference load cells following ISO 376 (EN10002/3) (Class "0.5" and "00")
show more
Universal load cells combining accuracy, sturdiness and easiness to install.
Features
  • Wide range of capacities: 10 kN (1 t) up to 30 MN (3000 t)
  • Easy to install, compact design
  • Protection IP 66
  • Material: stainless steel (5100), nickel plated steel (5105)
  • Available options:
    • High service temperature (180° C)
    • ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80° C Da
    • 0-10 V or 4 to 20 mA output signal
  • Also available as standard reference load cells following ISO 376 (EN10002/3) (Class "0.5" and "00")

Specifications

Brand

Accuracy

  • 1,000 D
  • 2,000 D
  • 3,000 D

Applications

  • Force Measuring on Test Bench
  • Industrial Force Measurement
  • Weighing

Approvals & Certifications

  • ATEX Intrinsic Safety Ex II 1 GD Ex Ia IIC T6 or T4 Ga Ex Ia IIIC T80° C Da
  • CE
  • CSA
  • IECEx

Capacity

  • 1 to 3000 T

Electrical Connectors

  • DIN 45322

Enclosure, Body Material

  • Nickel-Plated Steel
  • Stainless Steel

Environmental Protection

  • IP66

Excitation Voltage

  • 10 Vdc
  • 3-12 Vdc - Nominal Voltage

Insulation Resistance

  • > 5,000 MegaOhms

Linearity

  • Error: <± 0.025% (0.03 Model) to <± 0.25% of Full Scale (0.25 Model)

Repeatability

  • Error: <± 0.1% (0.25 Model) to <± 0.015% of Full Scale (0.03 Model)

Resistance

  • Input/Output: 352 ± 2 ohms

Sensitivity

  • Tolerance: <± 0.2% (0.03 Model) to <± 0.3% (0.25, 0.1, & 0.05 Model)

Service Temperature

  • -30 to 70° C (-22° to 158° F)

Storage Temperature

  • -50 to 85° C (-58° to 185° F)

Temperature Coefficient

  • <± 0.015% to <± 0.05% of Full Scale/10° C (18° F)
  • <± 0.023% to <± 0.035% of Full Scale/10° C (18° F)

Zero Balance

  • ± 0.02 mV/V
