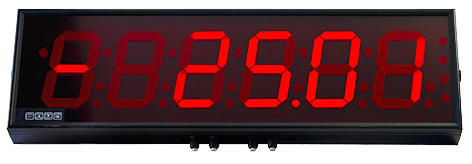

DISP-F Large Digital Display

Brand: Sensy - Sensors & Synergy S.A.
Large digital displays for the reading at long distance.
Features
  • Digits (4 or 6)
  • Digits height:
    • DISP-Fx-y2: 57 mm
    • DISP-Fx-y4: 102 mm
    • DISP-Fx-y6: 150 mm
    • DISP-Fx-y8: 200 mm
    • DISP-Fx-y12: 300 mm
    • DISP-Fx-y16: 400 mm
show more
Large digital displays for the reading at long distance.
Features
  • Digits (4 or 6)
  • Digits height:
    • DISP-Fx-y2: 57 mm
    • DISP-Fx-y4: 102 mm
    • DISP-Fx-y6: 150 mm
    • DISP-Fx-y8: 200 mm
    • DISP-Fx-y12: 300 mm
    • DISP-Fx-y16: 400 mm
Close
Close

Specifications

Brand

Applications

  • Industrial Weighing
  • Load Limitation
  • Torque Measurement

Display

  • 4-Digit Display
  • 6-Digit Display

Environmental Protection

  • IP65

Linearity

  • < ± 0.05 % of Full Scale - Error

Mounting

  • Vertically

Power Supply

  • 100-240 Vac (40 VA)
  • 11-30 Vdc (40 W)
  • 48 Vac (40 VA)

Sensor Excitation

  • 24 Vdc (60 mA - Max.

Service Temperature

  • 0° to 50° C (32° to 122° F)

Storage Temperature

  • -20° to 70° C (-4° to 158° F)

Temperature Coefficient

  • < ± 0.025 % of Full Scale/10° C (18° F) - Sensitivity
  • < ± 0.03 % of Full Scale/10° C (18° F) - Zero Signal
