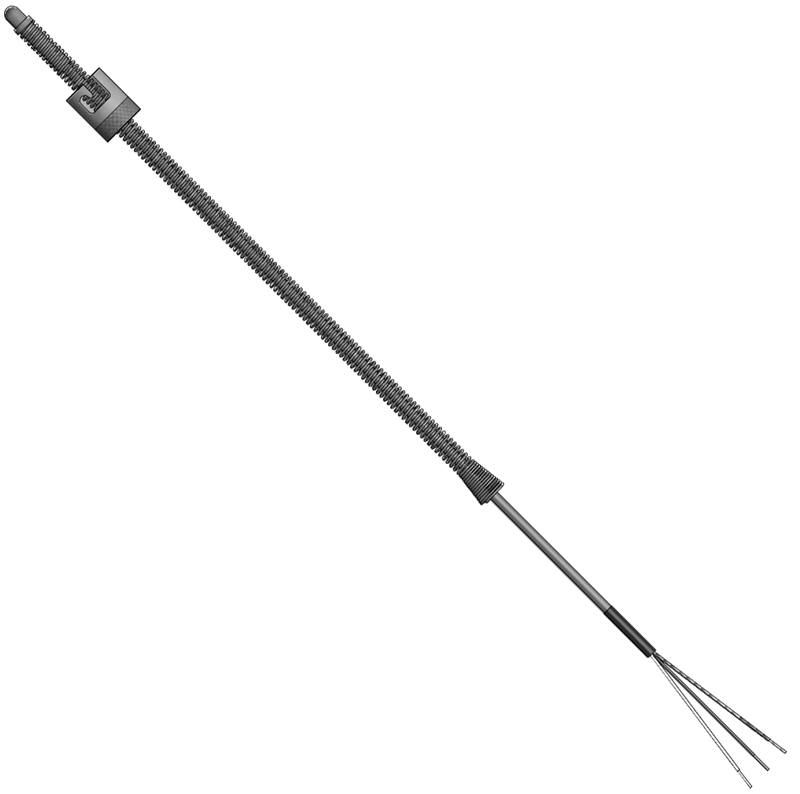

Spring-Adjustable Immersion RTD

Brand: Pyromation
This RTD spring-adjustable immersion sensor has a bayonet cap on an 8" spring (standard) to allow for immersion depths of 1/2" to 7". This assembly is used in a variety of applications (with a bayonet adapter) where ease of installation and quick disconnect is preferred. Standard and metric size bayonet caps and adapters are available.

These assemblies are supplied standard using 316 stainless steel sheath material and a 100 Ω platinum element with a temperature coefficient of 0.003 85 ºC-1 (IEC Class B).
show more
This RTD spring-adjustable immersion sensor has a bayonet cap on an 8" spring (standard) to allow for immersion depths of 1/2" to 7". This assembly is used in a variety of applications (with a bayonet adapter) where ease of installation and quick disconnect is preferred. Standard and metric size bayonet caps and adapters are available.

These assemblies are supplied standard using 316 stainless steel sheath material and a 100 Ω platinum element with a temperature coefficient of 0.003 85 ºC-1 (IEC Class B).

Specifications

Brand

Enclosure / Body Material

  • 316 stainless steel

Element Connection

  • 2-wire
  • 3-wire

Tip OD

  • 0.188", 0.250"

Leadwire Insulationn

  • Fiberglass
  • Polyimide
