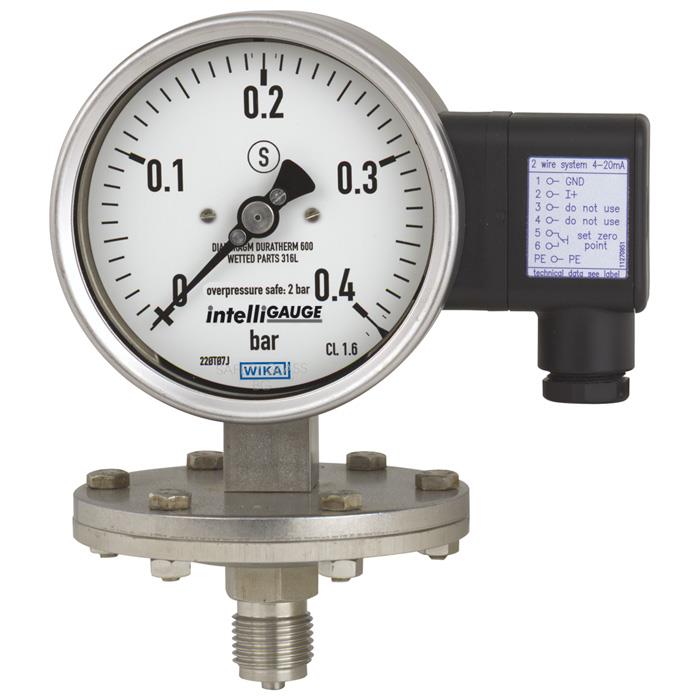

Model PGT43.100, PGT43.160 Diaphragm Pressure Gauge with Output Signal

Brand: WIKA Instruments Ltd.
Wherever the process pressure has to be indicated locally and, at the same time, a signal transmission to the central control or remote centre is desired, the model PGT43 intelliGAUGE® (patent, property right: e.g. DE 202007019025) can be used.

The model PGT43 is based upon a model 43x.30 high-quality, stainless steel safety pressure gauge with a nominal size of 100 or 160. The pressure measuring instrument is manufactured in accordance with EN 837-3.

The intelliGAUGE model PGT43 fulfils all safety-related requirements of the relevant standards and regulations for the on-site display of the working pressure of pressure vessels. The robust diaphragm measuring system produces a pointer rotation proportional to the pressure.
Features
  • No configuration necessary due to “plug-and-play”.
  • Signal transmission per NAMUR.
  • Measuring ranges from 0 ... 16 mbar.
  • Easy-to-read Analog display with nominal size 100 or 160.
  • Safety pressure gauge S3 per EN 837-3.
show more
Images are representations only.
Wherever the process pressure has to be indicated locally and, at the same time, a signal transmission to the central control or remote centre is desired, the model PGT43 intelliGAUGE® (patent, property right: e.g. DE 202007019025) can be used.

The model PGT43 is based upon a model 43x.30 high-quality, stainless steel safety pressure gauge with a nominal size of 100 or 160. The pressure measuring instrument is manufactured in accordance with EN 837-3.

The intelliGAUGE model PGT43 fulfils all safety-related requirements of the relevant standards and regulations for the on-site display of the working pressure of pressure vessels. The robust diaphragm measuring system produces a pointer rotation proportional to the pressure.
Features
  • No configuration necessary due to “plug-and-play”.
  • Signal transmission per NAMUR.
  • Measuring ranges from 0 ... 16 mbar.
  • Easy-to-read Analog display with nominal size 100 or 160.
  • Safety pressure gauge S3 per EN 837-3.

Specifications

Certifications & Approvals

  • CE
  • ATEX
  • IECEx
  • EAC
  • GOST
  • KazInMetr
  • MTSCHS
  • BelGIM
  • UkrSEPRO
  • DNOP
  • Uzstandard
  • CRN

Environmental Protection

  • IP54
  • IP65

Wetted Materials

  • Tantalum
  • Titanium
  • Silver
  • FPM/FKM
  • Nickel
  • Monel
  • PTFE
  • Stainless steel 316L
  • NiCr alloy (Inconel)
  • Hastelloy

Case Material

  • Stainless steel

Dial Material

  • Aluminium, white, black lettering

Window Material

  • Laminated safety glass

Fill Fluid

  • Silicone oil

Process Connection

  • G 1/2" B
  • 1/2" NPT
  • M20 X 1.5
  • Flange DN25, DN50, PN40
  • Flange 1'', 2" Class 150 RF

Nominal Size

  • 100, 160 mm

Accuracy

  • Class 1.6, 1.0

Scale Range

  • 0 to 250 mbar
  • 0 to 25 bar

Typical Applications

  • Acquisition and display of processes
  • Output signals 4 ... 20 mA, 0 ... 20 mA, 0 ... 10 V for the transmission of process values to the control room
  • For measuring points with increased overload
  • Easy-to-read, analogue on-site display needing no external power
  • Safety-related applications
