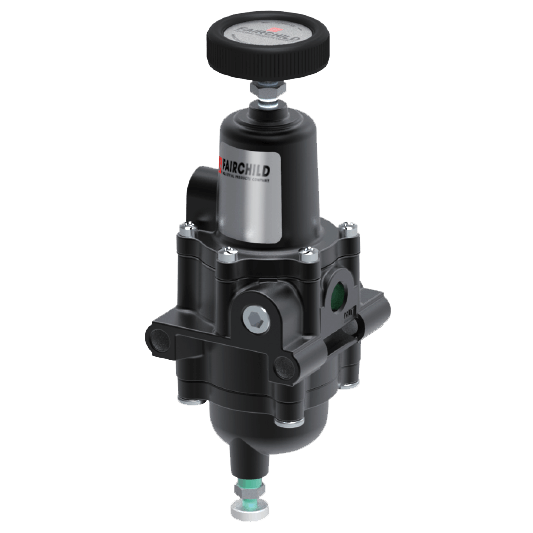

Model 63N NACE Pneumatic Filter Regulator

Brand: Fairchild Industrial Products
New Rotork Fairchild Model 63N NACE MRO175 compliant filter regulator is a service regulator for severe service conditions for sulfide stress crack resistant materials for oil field and associated equipment. This model offers an integral 5 micron filter within its drip well bowl and offers the highest flow capacity of any regulator in its class.

In addition, the Model 63N NACE features control sensitivity of 1" water column and an integral relief valve to deliver consistent and reliable performance to maintain desired set point regardless of supply pressure changes or conditions.

The Fairchild Model 63N NACE will handle 300 psi, 20 BAR, maximum supply pressure and offers three (3) output pressure ranges from 0.5-30 psi, 0.03-2 BAR, 3-200 kPa, up to 2-120 psi, 0.14-8 BAR, 14-800 kPa and up to 25 SCFM, 42.5 m3/hr flow capacity.

This model also has Canadian Registration (CRN) for all territories and provinces.
Features
  • High Flow Capacity
  • Standard 5-micron filter
  • Conforms to NACE MRO175
  • Epoxy coated finish with Stainless Trim standard
  • Non-bleed design
  • Integral Relief Valve
  • Standard Gauge Port
  • Filter Dripwell Drain Plug
  • Standard Tapped Exhaust
  • Soft Relief Seat
  • -60° F Low Temperature Rating
show more
Images are representations only.
New Rotork Fairchild Model 63N NACE MRO175 compliant filter regulator is a service regulator for severe service conditions for sulfide stress crack resistant materials for oil field and associated equipment. This model offers an integral 5 micron filter within its drip well bowl and offers the highest flow capacity of any regulator in its class.

In addition, the Model 63N NACE features control sensitivity of 1" water column and an integral relief valve to deliver consistent and reliable performance to maintain desired set point regardless of supply pressure changes or conditions.

The Fairchild Model 63N NACE will handle 300 psi, 20 BAR, maximum supply pressure and offers three (3) output pressure ranges from 0.5-30 psi, 0.03-2 BAR, 3-200 kPa, up to 2-120 psi, 0.14-8 BAR, 14-800 kPa and up to 25 SCFM, 42.5 m3/hr flow capacity.

This model also has Canadian Registration (CRN) for all territories and provinces.
Features
  • High Flow Capacity
  • Standard 5-micron filter
  • Conforms to NACE MRO175
  • Epoxy coated finish with Stainless Trim standard
  • Non-bleed design
  • Integral Relief Valve
  • Standard Gauge Port
  • Filter Dripwell Drain Plug
  • Standard Tapped Exhaust
  • Soft Relief Seat
  • -60° F Low Temperature Rating

Model 63N

Pressure Range

Port Size

Port Thread

Elastomers

Adjustment Type

Relief

Trim

Vent

Quick Bleed

Gauge

Specifications

Actuator Type

  • Knob
  • Screw
  • Tamper-Proof

Approvals & Certifications

  • CRN

BSP Connection

  • 1/4" BSPP Female
  • 1/4" BSPT Female

Elastomers

  • Nitrile

Enclosure, Body Material

  • Epoxy Coated Aluminum

Exhaust Capacity - Relieving Units Only

  • 0.8 scfm (1.36 m³/hour)

Flow Capacity

  • 25 scfm (42.5 m³/hour) at psig: 100 (kPa: 700, bar: 7) Supply, psig: 20 (kPa: 150, bar: 1.5) Set Point

Gauge Connection

  • 2" NPT

NACE & NIST

  • NACE MR-0175

NPT Connection

  • 1/4" NPT Female

Pressure Range

  • bar: 2.06 to 8.27
  • kPa: 207 to 827
  • psig: 30 to 120

Relief

  • Relieving

Sensitivity

  • 1" WC (2.54 cm)

Supply Pressure - Maximum

  • bar: 20
  • kPa: 2,000
  • psig: 300

Supply Pressure Effect

  • less than psig: 1.25 (bar: 0.09, kPa: 9) Change for psig: 100 (bar: 7, kPa: 700) Change in Supply Pressure psig: 1.90 for 120 psig Range

Temperature Range

  • -51° to 82° C (-60° to 180° F)

Trim Material

  • Stainless Steel

Vent

  • Threaded
