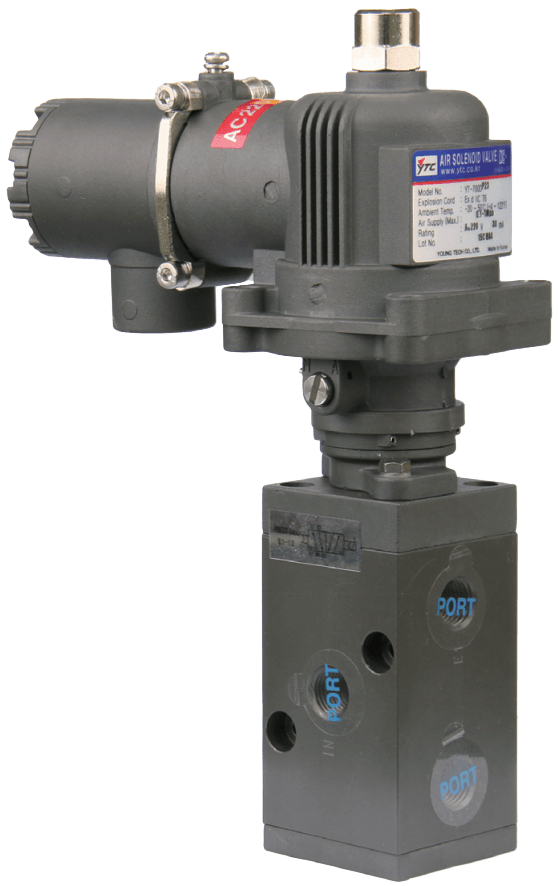

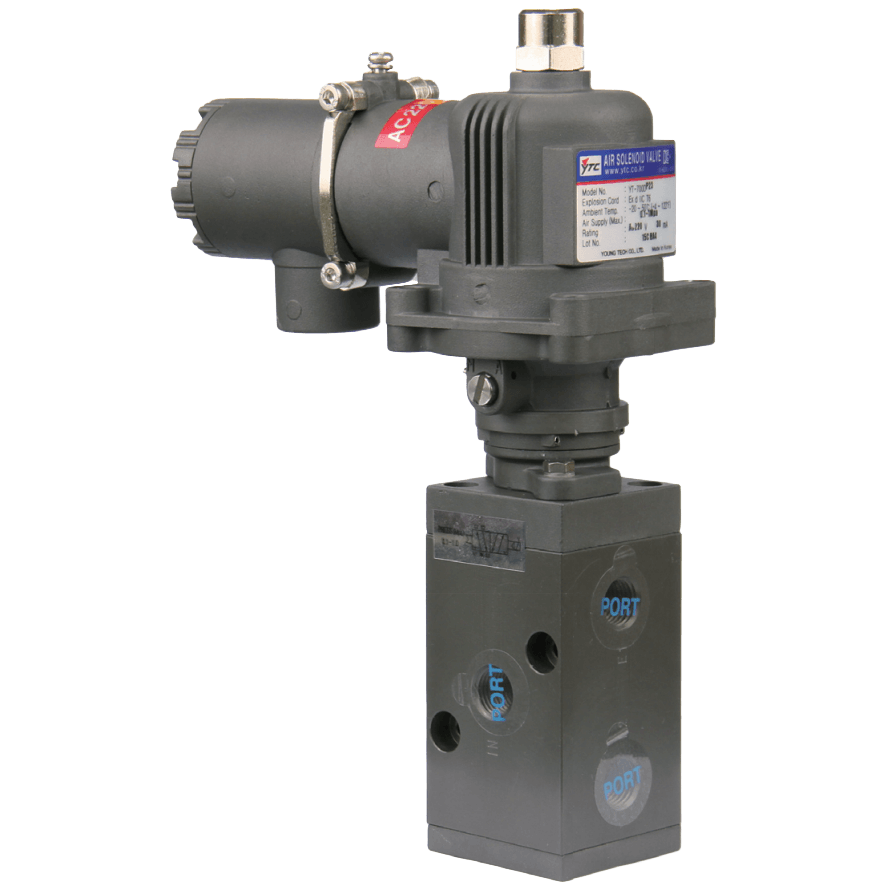

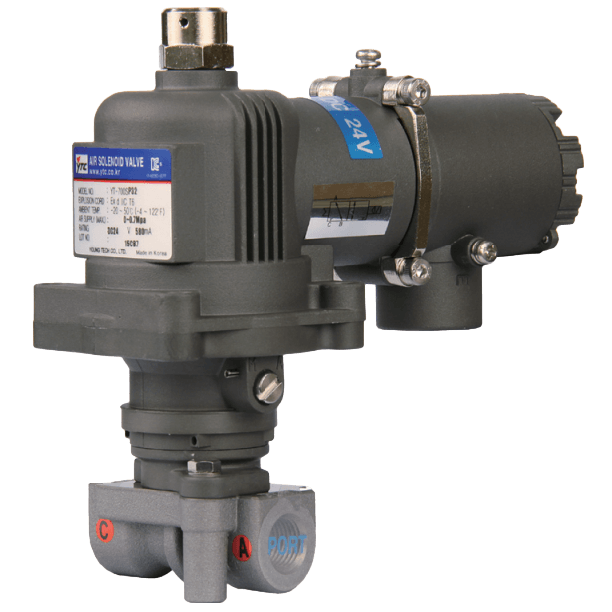

YT-720 Solenoid Valve

Brand: Young Tech Co., Ltd
Solenoid valve YT-720 opens and shuts by electrical signal of AC or DC, it is built as explosion-proof structure.

Features
  • O-ring shapes: Less lubrication required
  • Interchangeable of AC and DC coils
  • Balance spool type: No require of backing spring
  • Manual override switch
  • Coil assembly cab be rotated
show more
Images are representations only.
Solenoid valve YT-720 opens and shuts by electrical signal of AC or DC, it is built as explosion-proof structure.

Features
  • O-ring shapes: Less lubrication required
  • Interchangeable of AC and DC coils
  • Balance spool type: No require of backing spring
  • Manual override switch
  • Coil assembly cab be rotated

YT-720

Valve Type

Connection Type

Power Source

Pressure

Specifications

Approvals & Certifications

  • KC

Conduit Connection

  • 1/2" PF Female
  • G 1/2" Female

Electrical Rating

  • 130 mA at 110 Vac, 12 W
  • 580 mA at 24 Vdc, 14 W
  • 60 mA at 220 Vac, 11 W

Environmental Protection

  • Explosion-proof Typical Ex DIIC T6

Flow Capacity

  • Exhaust (3-Way): 0.093 Cv
  • Output (4-Way): 0.75 Cv

Flow Rate

  • 3-Way Output: 0.084 Cv at 0.7 MPa
  • 3-Way Output: 0.2 Cv at 0.4 MPa

Frequency

  • 50/60 Hz

NPT Connection

  • 1/4" NPT Female

Operating Temperature

  • -20° to 70° C (-4° to 158° F)
  • Explosion: -20° to 50° C (-4° to 122° F)

Power Supply

  • 110 Vac
  • 220 Vac
  • 24 Vdc

PT/PF/PS (JIS) Connection

  • 1/4" PT Female

Supply Pressure - Maximum

  • 3-Way - psi: 0 to 101.5 (MPa: 0 to 0.7, bar: 0 to 7)
  • 3-Way - psi: 0 to 58.02 (MPa: 0 to 0.4, bar: 0 to 4)
  • 4-Way - psi: 14.5 to 145 (MPa: 0.1 to 1, bar: 1 to 10)

Valve Type

  • 3-Way
  • 4-Way
  • Manual
