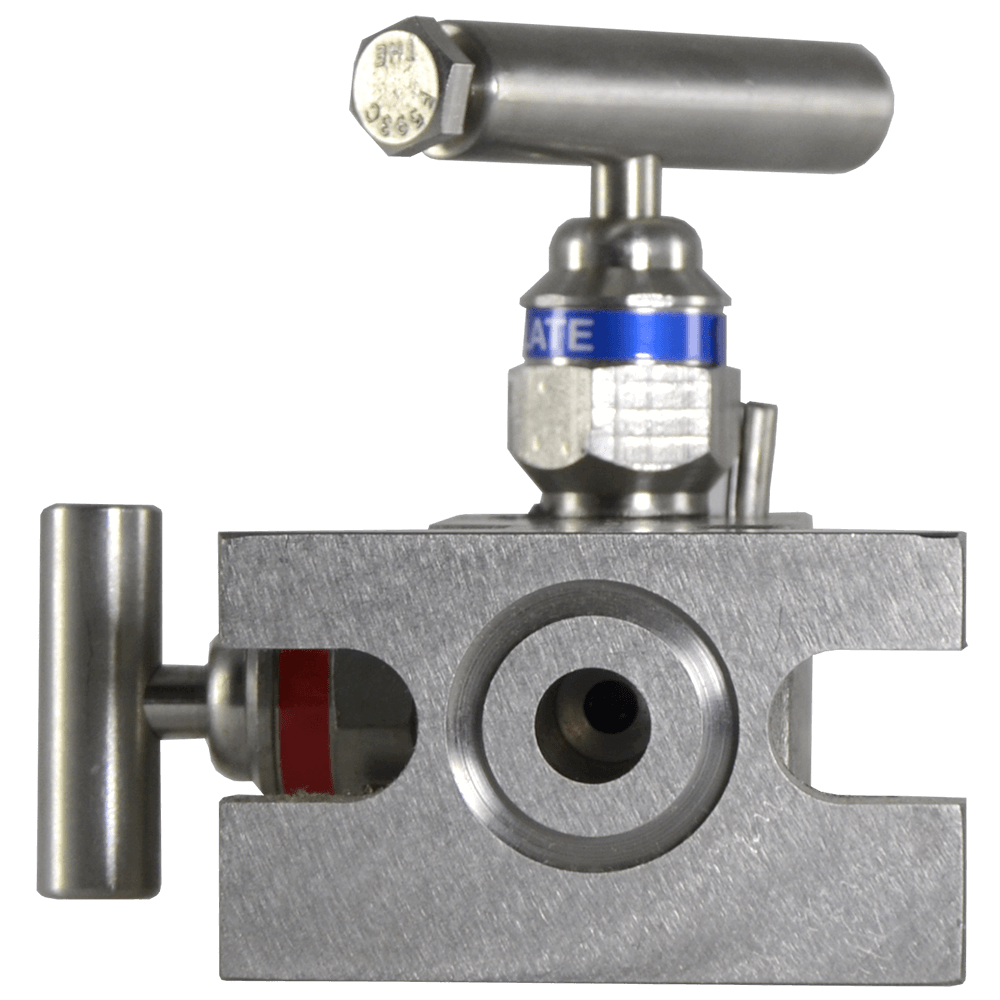

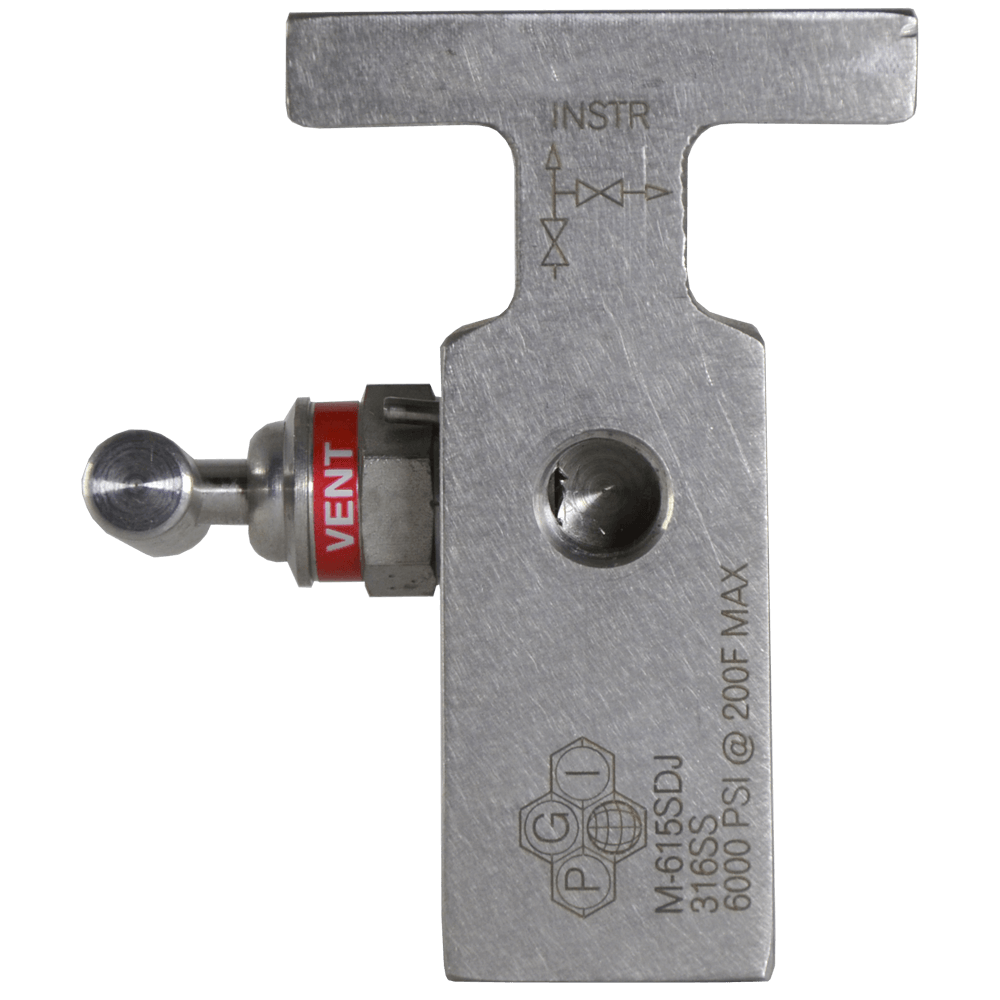

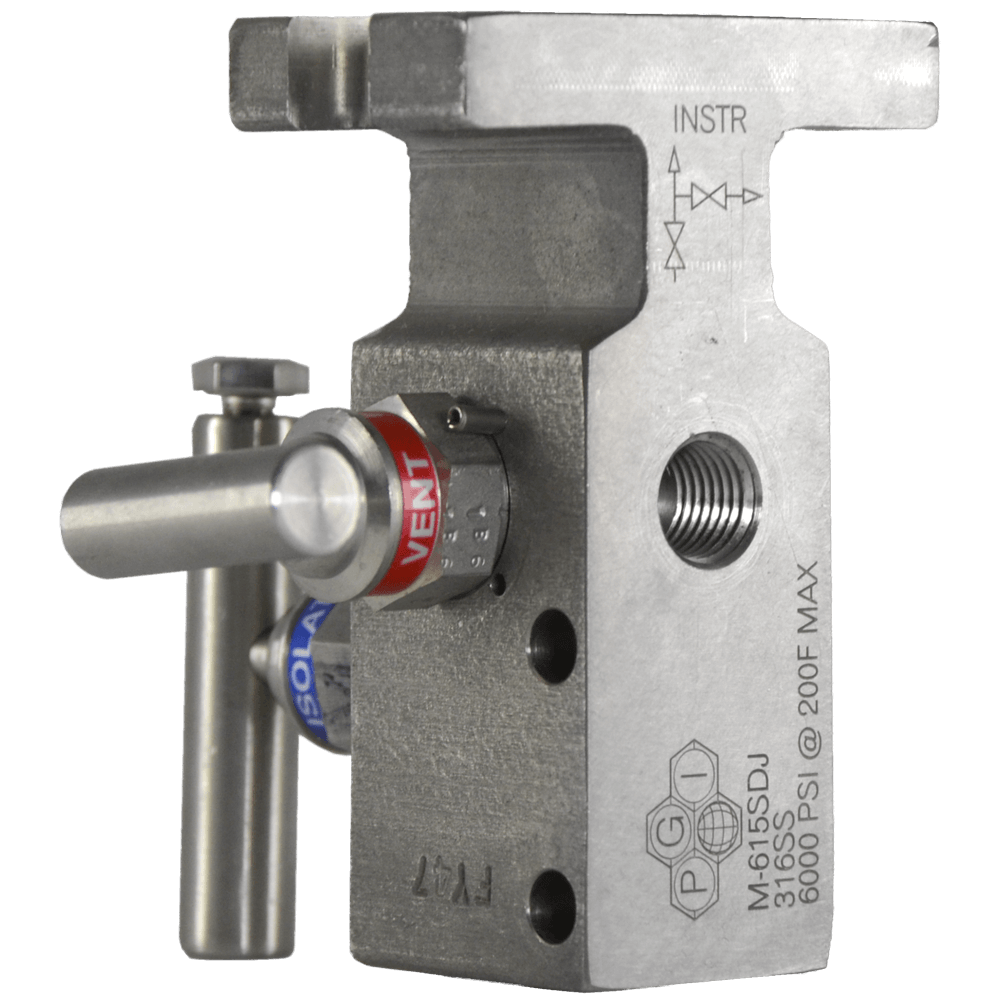

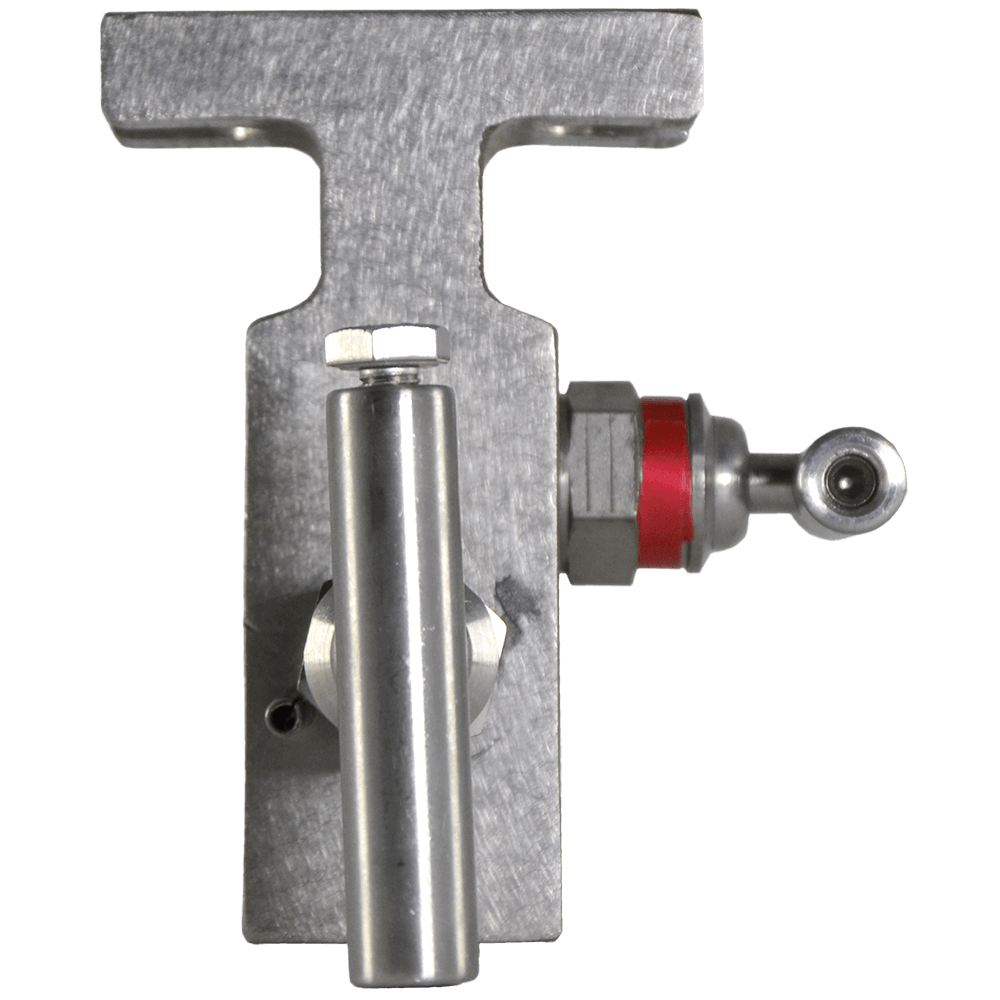

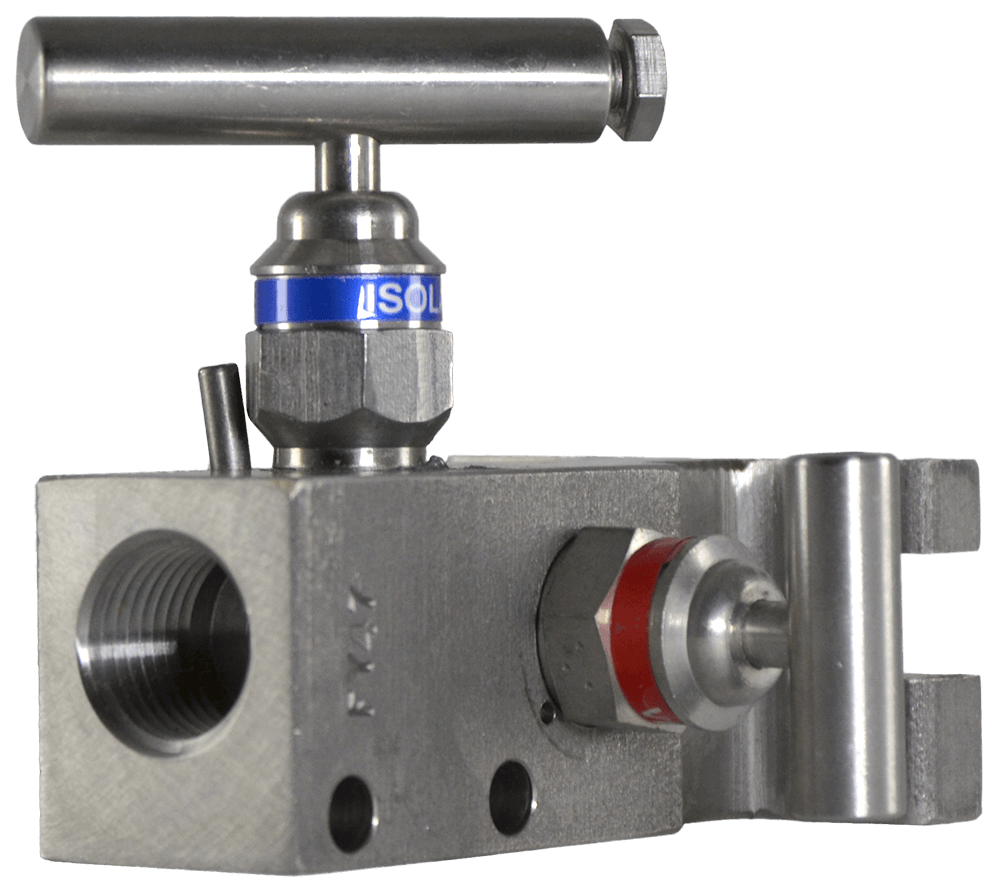

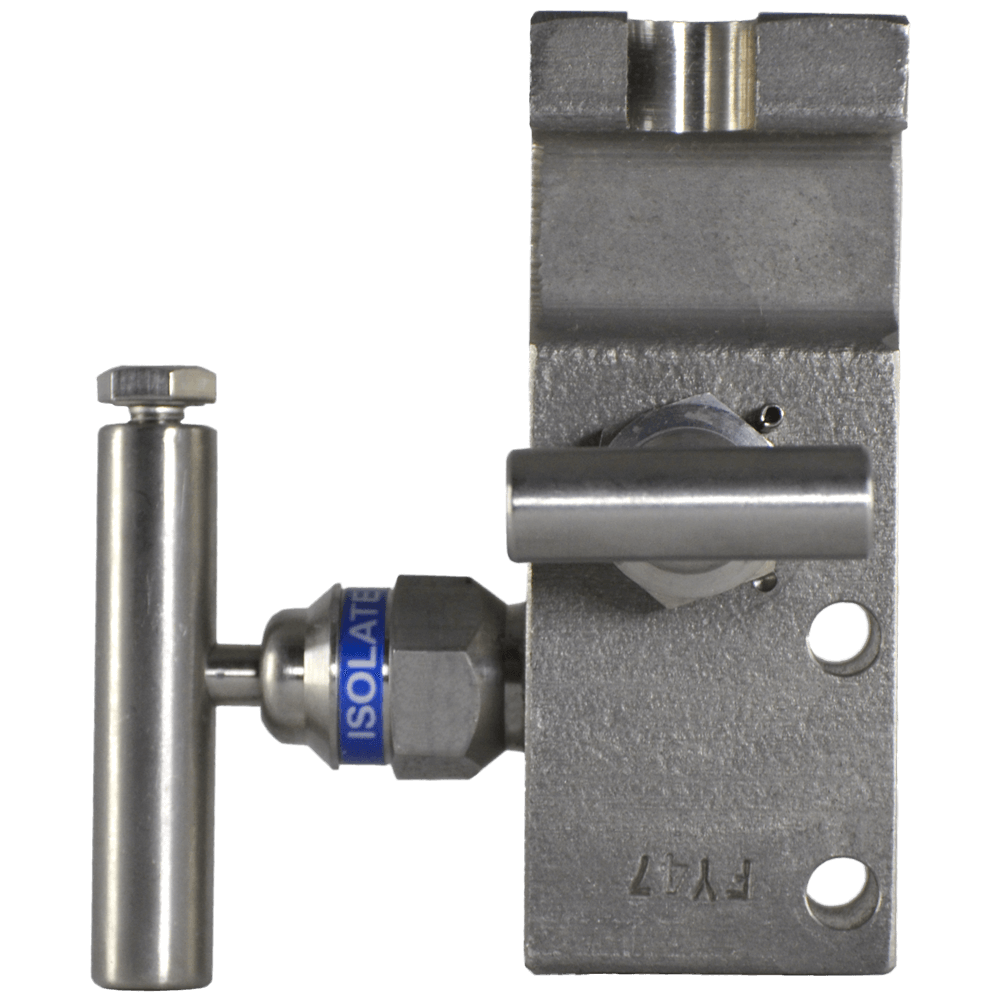

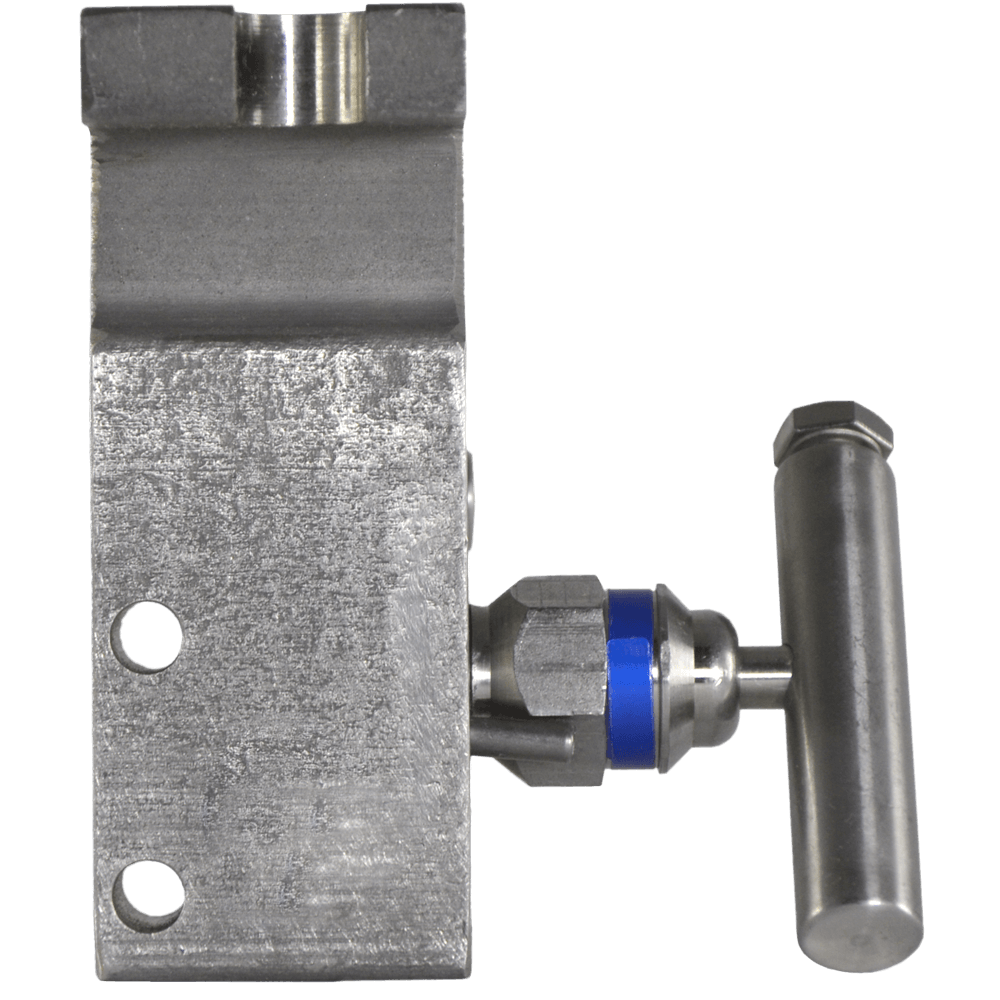

M-615 Two-Valve Manifold

Brand: Parker PGI
Design: Soft Seat Two-Valve Block & Bleed Manifold
Inlet Connection: 1/2" NPT Female
Outlet Connection: Flanged
Features
  • Delrin Ball Seat
  • Teflon Pressure-Core Stem Seal for Low Temperatures
  • Max Pressure 6000 psi @ +200°F (+93°C)
  • Stainless Steel Body and Bonnet
    • 316 Stainless Steel meets the requirements of NACE MR0175/ISO 15156-36
  • Non-rotating ball eliminates seat galling and ball creasing
  • Leak free, bubble tight seating
  • 100% Pressure Tested
show more
Design: Soft Seat Two-Valve Block & Bleed Manifold
Inlet Connection: 1/2" NPT Female
Outlet Connection: Flanged
Features
  • Delrin Ball Seat
  • Teflon Pressure-Core Stem Seal for Low Temperatures
  • Max Pressure 6000 psi @ +200°F (+93°C)
  • Stainless Steel Body and Bonnet
    • 316 Stainless Steel meets the requirements of NACE MR0175/ISO 15156-36
  • Non-rotating ball eliminates seat galling and ball creasing
  • Leak free, bubble tight seating
  • 100% Pressure Tested
M-615-SDJ
PGI 2-Valve Manifold, 1/2" FNPT x Slim Flanged, Soft Seat, NACE View More
  • Design: Two Valve Block & Bleed, 1/2" NPT Female Process x 1/2" NPT Female Instrument, with 1/4" NPT Female Vent
  • Standard Features:
    • Delrin Ball Seat
    • Teflon Packing/Seal
    • Max Pressure 6000 psi @ +200°F (+93°C)
    • ASTM 108 Body & Bonnet
  • Benefits:
    • Non-rotating ball eliminates seat galling and ball creasing
    • Leak free, bubble tight seating
Out of Stock
$289.43 USD
$15.51 Shipping
M-501-SDJ
PGI 3-Valve Manifold, 1/2" FNPT x 1/2" FNPT x 1/4" FNPT, Teflon Packing, 316SS Body, Delrin Seat View More
  • Design: ThreeValve Block & Bleed, 1/2" NPT Female Process x 1/2" NPT Female Instrument, with 1/4" NPT Female Vent
  • Standard Features:
    • Delrin Ball Seat
    • Teflon Packing/Seal
    • Max Pressure 6000 psi @ +200°F (+93°C)
    • ASTM A479-316 Body & Bonnet
  • Benefits:
    • Non-rotating ball eliminates seat galling and ball creasing
    • Leak free, bubble tight seating
6 - 7 weeks
Non-Cancellable / Non-Refundable
$453.93 USD
$15.51 Shipping
M-615-SDT
PGI 2-Valve Manifold, 1/2" FNPT x Slim Flanged, Soft Seat, NACE
Out of Stock

Specifications

Brand

Enclosure, Body Material

  • ASTM A479-316 Stainless Steel

Handle Assembly Material

  • ASTM A581 18-8 300 Stainless Steel

Maximum Cv Ratings

  • Cv 0.53 on 0.187" Orifice

NACE & NIST

  • NACE
  • NACE MR-0175, ISO 15156-36

Orifice Size

  • 0.187"

Packing Material

  • Teflon
  • Teflon Pressure-Core® Stem Seal for Low Temperatures -45.5° C (-50° F)

Pressure Rating

  • psi: 10,000 at 93° C (200° F)
  • psi: 8,000 at 232° C (450° F)

Process Temperature

  • -45° to 232° C (-50° to 450° F)

Seal Retainer

  • ASTM A479-316 Stainless Steel

Stem Material

  • ASTM A479-316 Stainless Steel
