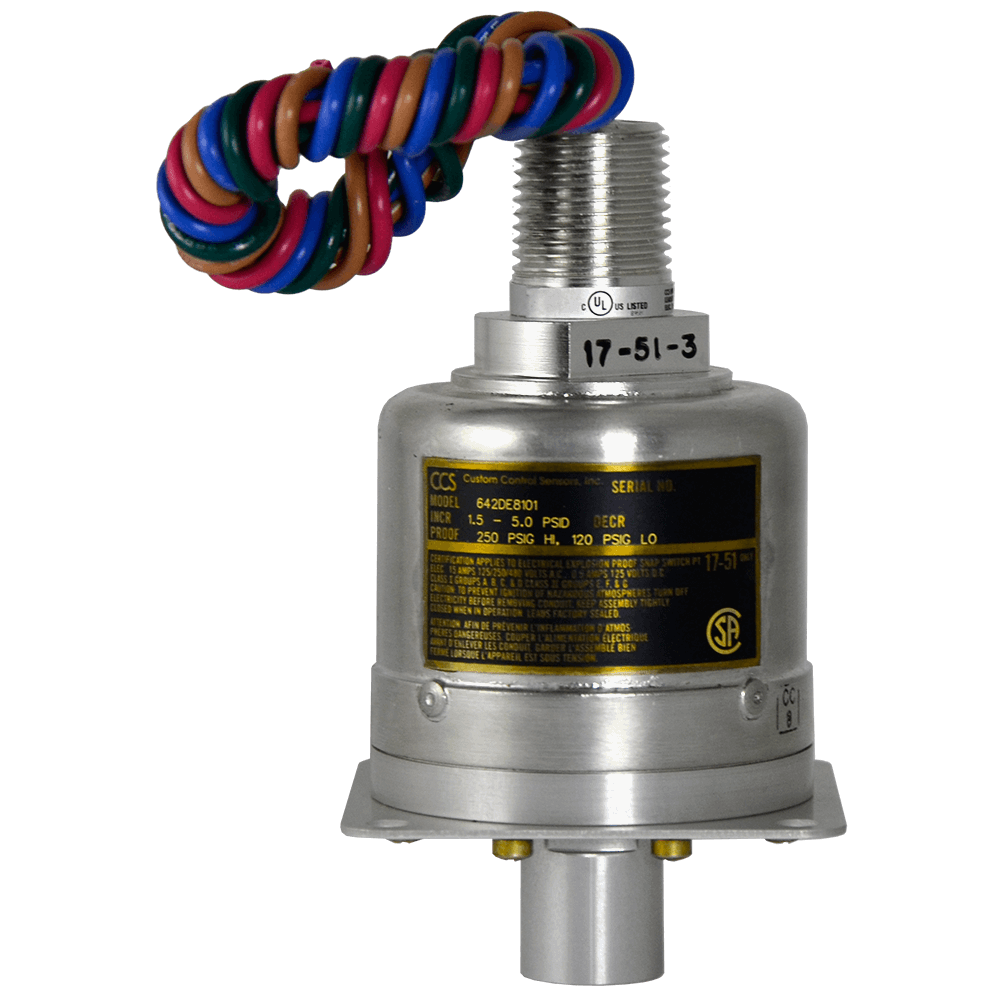

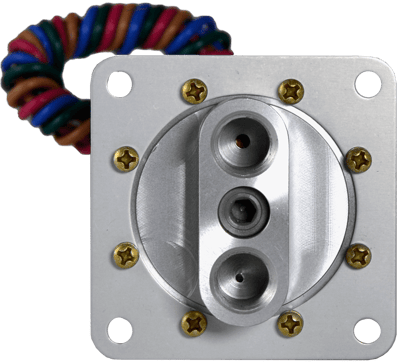

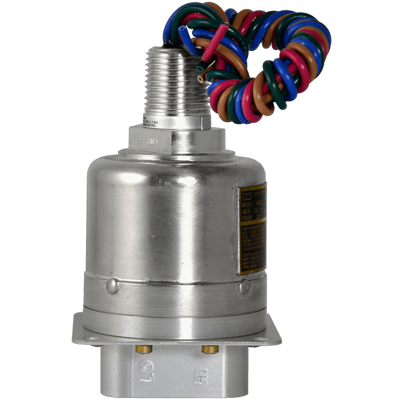

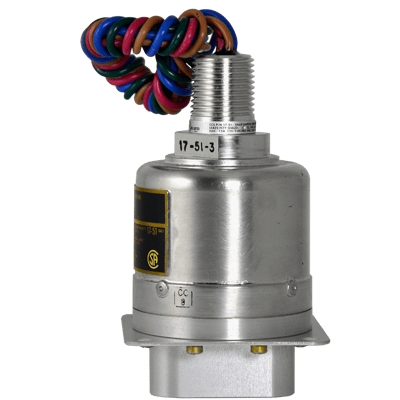

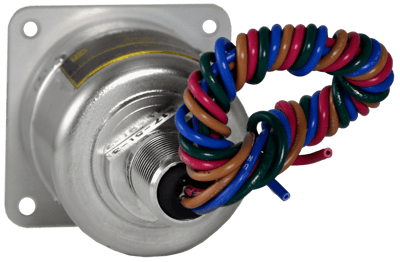

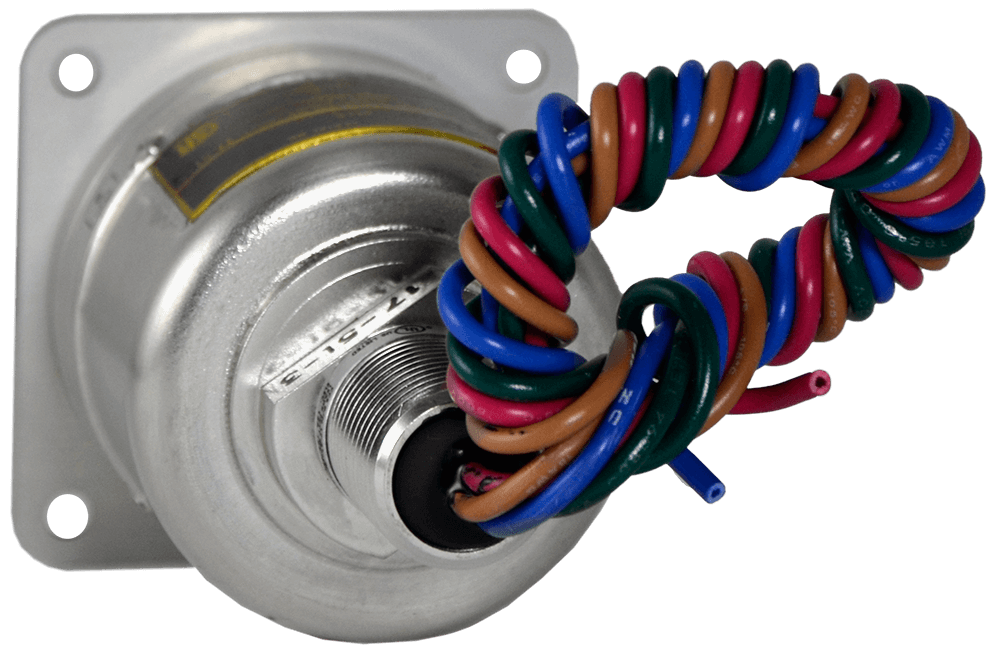

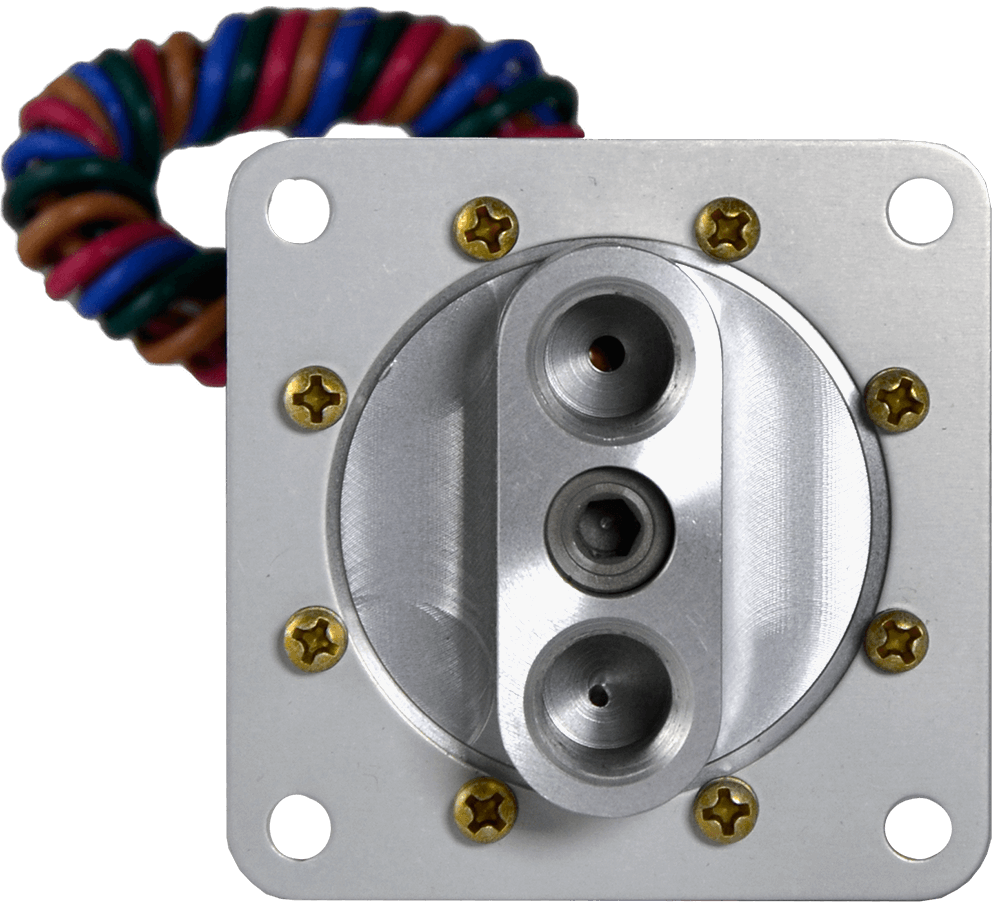

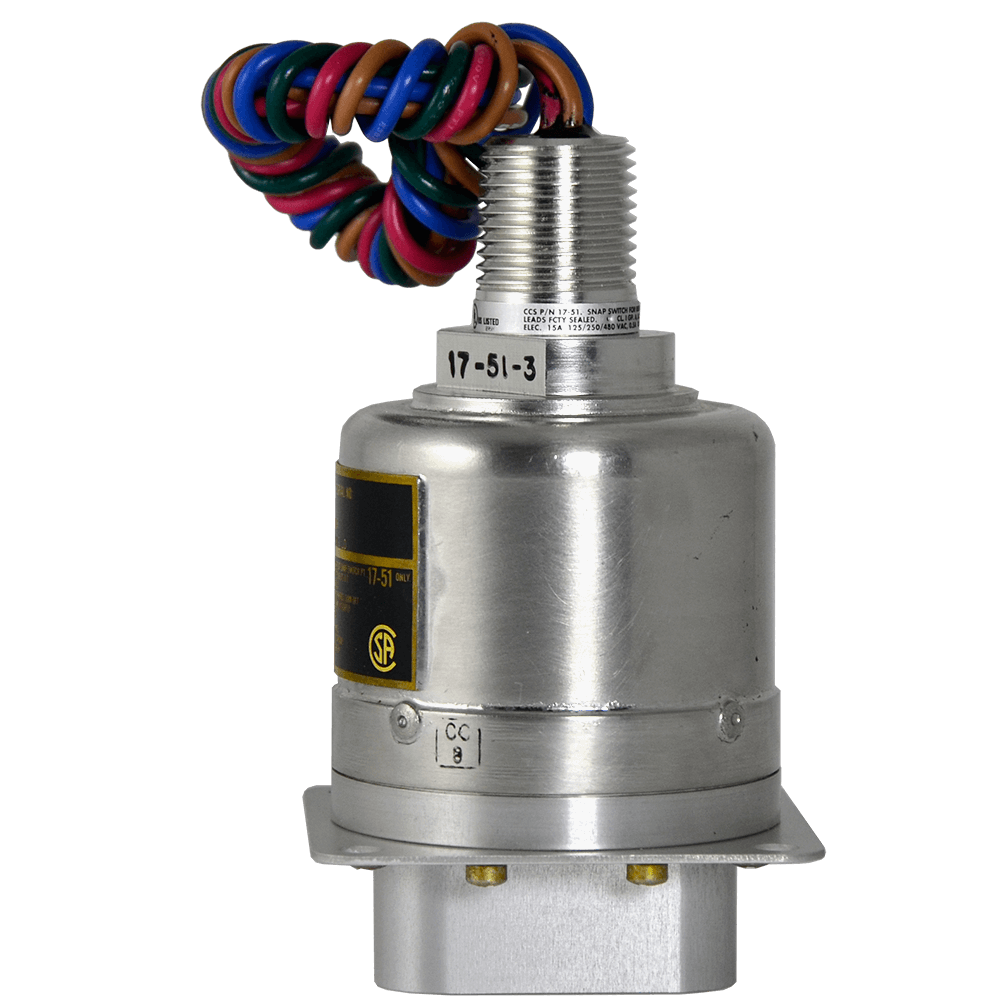

642DE8100 Series Pressure Switch

Brand: Custom Control Sensors
Features
  • Adjustable Set Point Range:
    • Increasing: 1.5 to 35 psig, 10.4 to 241.3 kPa, 0.103 to 0.89 bar
    • Decreasing: 1.0 to 31 psig, 6.9 to 213.7 kPa, 0.069 to 2.14 bar
  • Deadband: Approximately 0.5 to 4 psi, 3.5 to 27.5 kPa, 0.034 to 0.28 bar
  • System Pressure (Maximum): 160 psig, 1,103.16 kPa, 11.03 bar
  • Proof Pressure:
    • Both Ports: 250 psig, 1,723.69 kPa, 17.24 bar
    • High: 250 psig, 1,723.69 kPa, 17.24 bar
    • Low: 120 psig, 827.37 kPa, 8.27 bar
  • Wetted Materials:
    • Pressure Port: 1/4" Female NPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark, NACE
show more
Features
  • Adjustable Set Point Range:
    • Increasing: 1.5 to 35 psig, 10.4 to 241.3 kPa, 0.103 to 0.89 bar
    • Decreasing: 1.0 to 31 psig, 6.9 to 213.7 kPa, 0.069 to 2.14 bar
  • Deadband: Approximately 0.5 to 4 psi, 3.5 to 27.5 kPa, 0.034 to 0.28 bar
  • System Pressure (Maximum): 160 psig, 1,103.16 kPa, 11.03 bar
  • Proof Pressure:
    • Both Ports: 250 psig, 1,723.69 kPa, 17.24 bar
    • High: 250 psig, 1,723.69 kPa, 17.24 bar
    • Low: 120 psig, 827.37 kPa, 8.27 bar
  • Wetted Materials:
    • Pressure Port: 1/4" Female NPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark, NACE
10 models matching criteria
642DEAM8101
CCS DUAL-SNAP Differential Pressure Switch, Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Viton,DPDT View More
  • Adjustable Set Point Range:
    • Increasing: 1.5 to 5 psig, 10.4 to 34.4 kPa, 0.103 to 0.34 bar
    • Decreasing: 1.0 to 4.5 psi, 6.9 to 31.0 kPa, 0.069 to 0.31 bar
  • Deadband: Approximately 0.5 psi, 3.45 kPa, 0.034 bar
  • System Pressure (Maximum): 160 psig, 1103.16 kPa, 11.03 bar
  • Proof Pressure:
    • Both Ports: 250 psig, 1723.69 kPa, 17.24 bar
    • High: 250 psig, 1723.69 kPa, 17.24 bar
    • Low: 120 psig, 827.37 kPa, 8.27 bar
  • Wetted Materials:
    • Pressure Port: 1/4" FNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Viton
  • Relay: DPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark
Contact For Inventory
$3,064.21 USD
Does not ship to US
642DE8101
CCS DUAL-SNAP Differential Pressure Switch, Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N View More
  • Adjustable Set Point Range:

    • Increasing: 1.5 to 5 psig, 10.4 to 34.4 kPa, 0.103 to 0.34 bar
    • Decreasing: 1.0 to 4.5 psi, 6.9 to 31.0 kPa, 0.069 to 0.31 bar
  • Deadband: Approximately 0.5 psi, 3.45 kPa, 0.034 bar
  • System Pressure (Maximum): 160 psig, 1103.16 kPa, 11.03 bar
  • Proof Pressure:
    • Both Ports: 250 psig, 1723.69 kPa, 17.24 bar
    • High: 250 psig, 1723.69 kPa, 17.24 bar
    • Low: 120 psig, 827.37 kPa, 8.27 bar
  • Wetted Materials:
    • Pressure Port: 1/4" FNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark
Contact For Inventory
$3,275.27 USD
Does not ship to US
642DE8105
CCS DUAL-SNAP Differential Pressure Switch, Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N View More
  • Adjustable Set Point Range:
    • Increasing: 23 to 35 psig, 158.6 to 241.3 kPa, 1.58 to 2.41 bar
    • Decreasing: 19 to 31 psig, 131.0 to 213.7 kPa, 1.31 to 2.13 bar
  • Deadband: Approximately 4 psi, 27.6 kPa, 0.27 bar
  • System Pressure (Maximum): 160 psig, 1103.16 kPa, 11.03 bar
  • Proof Pressure:
    • Both Ports: 250 psig, 1723.69 kPa, 17.24 bar
    • High: 250 psig, 1723.69 kPa, 17.24 bar
    • Low: 120 psig, 827.37 kPa, 8.27 bar
  • Wetted Materials:
    • Pressure Port: 1/4" FNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark
Contact For Inventory
$3,289.23 USD
Does not ship to US
642DE8102
CCS DUAL-SNAP Differential Pressure Switch, Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N View More
  • Adjustable Set Point Range:

    • Increasing: 2 to 13 psig, 13.8 to 89.6 kPa, 0.14 to 0.89 bar
    • Decreasing: 0.5 to 11.5 psig, 3.5 to 79.2 kPa, 0.034 to 0.79 bar
  • Deadband: Approximately 1.5 psi, 10.34 kPa, 0.103 bar
  • System Pressure (Maximum): 160 psig, 1103.16 kPa, 11.03 bar
  • Proof Pressure:
    • Both Ports: 250 psig, 1723.69 kPa, 17.24 bar
    • High: 250 psig, 1723.69 kPa, 17.24 bar
    • Low: 120 psig, 827.37 kPa, 8.27 bar
  • Wetted Materials:
    • Pressure Port: 1/4" FNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark
Contact For Inventory
642DE8102 @ 1 PSI DECR
CCS DUAL-SNAP Differential Pressure Switch, Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N View More
  • Pressure Port: 1/4" FNPT Aluminum
  • Diaphragm: Polyimide, O-Ring: Buna N, Relay: SPDT
  • Adjustable Set Point Range:
    • Increasing: 2 to 13 psig, 13.8 to 89.6 kPa, 0.14 to 0.89 bar
    • Decreasing: 0.5 to 11.5 psig, 3.5 to 79.2 kPa, 0.034 to 0.79 bar
  • Deadband: Approximately 1.5 psi, 10.34 kPa, 0.103 bar
  • Maximum System Pressure: 160 psig, 1103.16 kPa, 11.03 bar
  • Proof Pressure:
    • Both Ports: 250 psig, 1723.69 kPa, 17.24 bar
    • High: 250 psig, 1723.69 kPa, 17.24 bar
    • Low: 120 psig, 827.37 kPa, 8.27 bar
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark
Contact For Inventory
642DE8102 @ 2 PSI INCR
CCS DUAL-SNAP Differential Pressure Switch, Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N View More
  • Pressure Port: 1/4" FNPT Aluminum
  • Diaphragm: Polyimide, O-Ring: Buna N, Relay: SPDT
  • Adjustable Set Point Range:
    • Increasing: 2 to 13 psig, 13.8 to 89.6 kPa, 0.14 to 0.89 bar
    • Decreasing: 0.5 to 11.5 psig, 3.5 to 79.2 kPa, 0.034 to 0.79 bar
  • Deadband: Approximately 1.5 psi, 10.34 kPa, 0.103 bar
  • Maximum System Pressure: 160 psig, 1103.16 kPa, 11.03 bar
  • Proof Pressure:
    • Both Ports: 250 psig, 1723.69 kPa, 17.24 bar
    • High: 250 psig, 1723.69 kPa, 17.24 bar
    • Low: 120 psig, 827.37 kPa, 8.27 bar
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark

Contact For Inventory
642DE8103
CCS DUAL-SNAP Differential Pressure Switch, Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N View More
  • Adjustable Set Point Range:

    • Increasing: 12 to 24 psig, 82.8 to 165.4 kPa, 0.83 to 1.65 bar
    • Decreasing: 9.5 to 21.5 psig, 65.6 to 148.2 kPa, 0.66 to 1.48 bar
  • Deadband: Approximately 2.5 psi, 17.24 kPa, 0.17 bar
  • System Pressure (Maximum): 160 psig, 1103.16 kPa, 11.03 bar
  • Proof Pressure:
    • Both Ports: 250 psig, 1723.69 kPa, 17.24 bar
    • High: 250 psig, 1723.69 kPa, 17.24 bar
    • Low: 120 psig, 827.37 kPa, 8.27 bar
  • Wetted Materials:
    • Pressure Port: 1/4" FNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark
Contact For Inventory
642DEAM8102
CCS DUAL-SNAP Differential Pressure Switch, Haz. Area, 1/4" NPT Aluminum Port,Polyimide,Buna-N,DPDT
Contact For Inventory
642DEM8102
CCS DUAL-SNAP Differential Pressure Switch, Haz. Area, 1/4" NPT Aluminum Port,Polyimide,Buna-N,DPDT View More
Haz. Area, 1/4" NPT Aluminum Port, Polyimide,Buna-N,DPDT
Contact For Inventory
642DEA8102
CCS DUAL-SNAP Differential Pressure Switch, Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N
Contact For Inventory

Specifications

Adjustment Type

  • Field Adjustable

Approvals & Certifications

  • ATEX
  • CE
  • CSA
  • EMC
  • LVD
  • RoHS
  • RTN
  • UL

Deadband, Approximate

  • bar: 0.034 to 0.28
  • kPa: 3.4 to 27.5
  • psi: 0.5 to 4.0

Diaphragm Material

  • Polyimide

Electrical Assembly

  • Hermetic Seal

Electrical Certification

  • c-UL, UL/CSA Explosion-proof: Div. 1, 2 Hermetically Sealed Electrical Assembly P/N 46-1058 (46-1061 for M (DPDT) Model Option), Listed by Both Underwriter's Laboratories, Inc. (File No. E32961) & Canadian Standard Association (CSA) Testing Laboratories

Electrical Connectors

  • 1/2" NPT Male

Electrical Rating

  • 1 A at 125 Vac, 1 A at 30 Vdc
  • 15 A at 125/250/480 Vac Resistive, 0.5 A at 125 Vdc, 0.2 A at 250 Vdc
  • 5 A at 125/250 Vac Resistive, 5 A at 28 Vdc, 0.5 A at 125 Vdc

Enclosure, Body Material

  • Aluminum

Environmental Protection

  • Hazardous Area
  • IP54
  • IP66
  • NEMA 13
  • NEMA 4, 7, 9, 13 / IP54, 66
  • NEMA 7
  • NEMA 9

Maximum System Pressure

  • bar: 7.9 to 35.48
  • kPa: 790 to 3,548
  • psig: 100 to 500

NPT Connection

  • 1/4" NPT Female

Operating Temperature

  • -40° to 86° C (-40° to 187° F)

O-Ring Material

  • Buna-N
  • Viton

Proof Pressure - Both Ports

  • bar: 17.24
  • kPa: 1,724
  • psig: 250

Proof Pressure - High Over Low

  • bar: 17.24
  • kPa: 1,724
  • psig: 250

Proof Pressure - Low Over High

  • bar: 8.27
  • kPa: 827.37
  • psig: 120

Service

  • Sweet (Oil & Gas)

Set Point - Decreasing

  • bar: 0 to 1.7
  • bar: 0.069 to 2.14
  • bar: 1.7 to 4.46
  • kPa: 0 to 170
  • kPa: 170 to 446
  • kPa: 6.9 to 213.7
  • psig: 0 to 10
  • psig: 1 to 31
  • psig: 10 to 50

Set Point - Increasing

  • bar: 0 to 1.7
  • bar: 0.103 to 2.41
  • bar: 1.7 to 4.46
  • kPa: 0 to 170
  • kPa: 10.4 to 241.3
  • kPa: 170 to 446
  • psig: 0 to 10
  • psig: 1.5 to 35
  • psig: 10 to 50

Switch Type

  • DPDT
  • SPDT

System Pressure

  • bar: 11.03
  • kPa: 1,103
  • psig: 160
