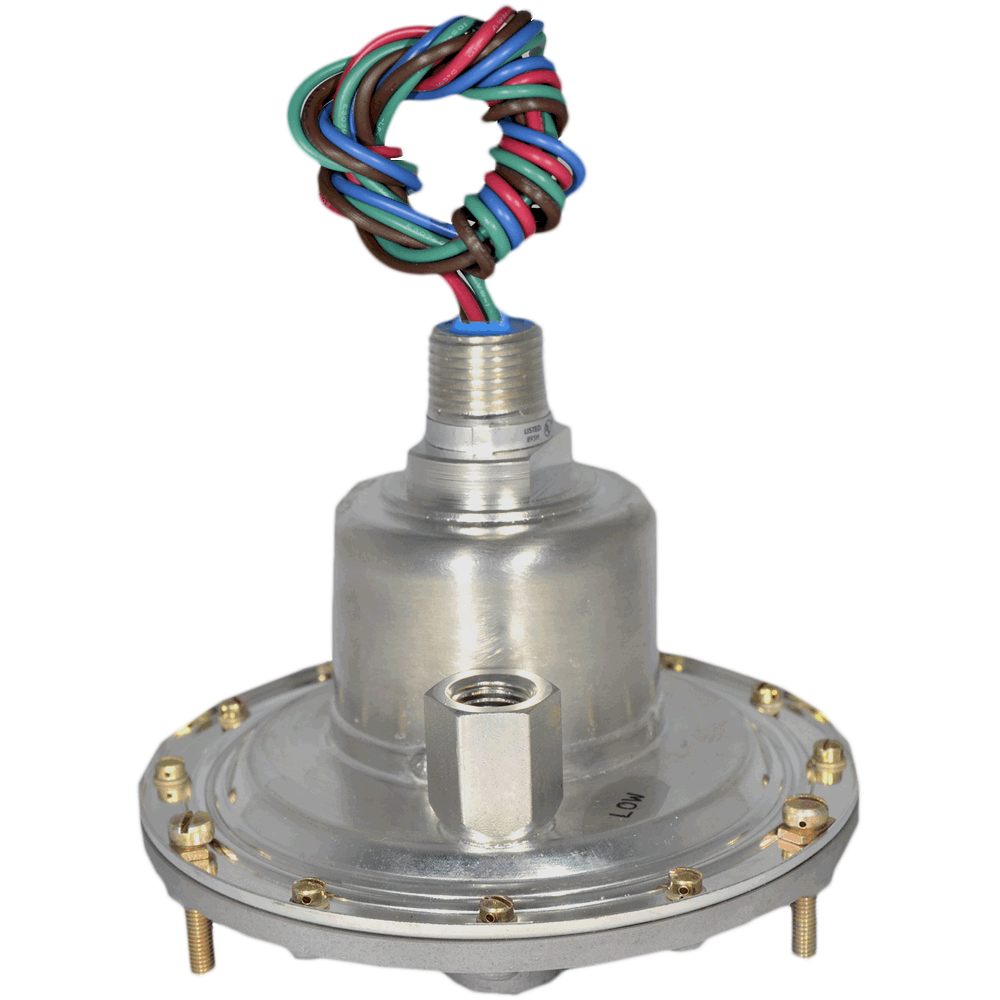

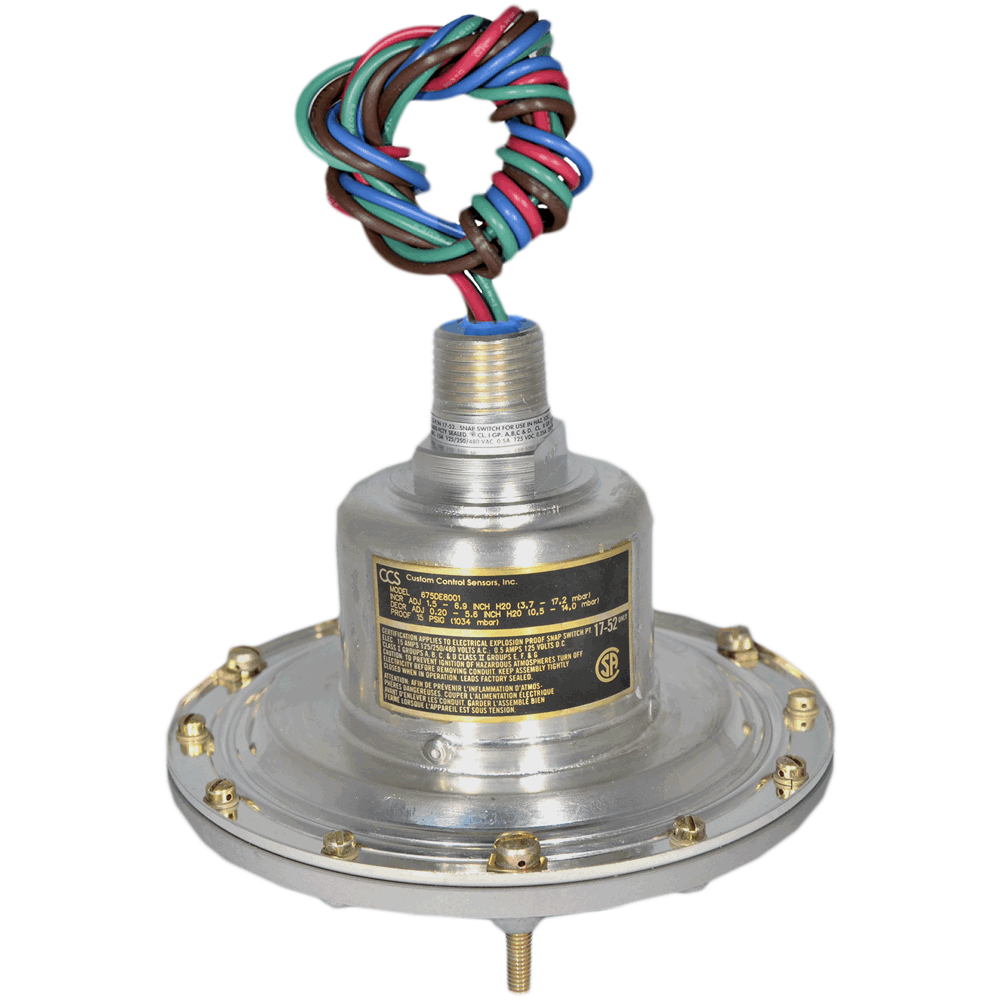

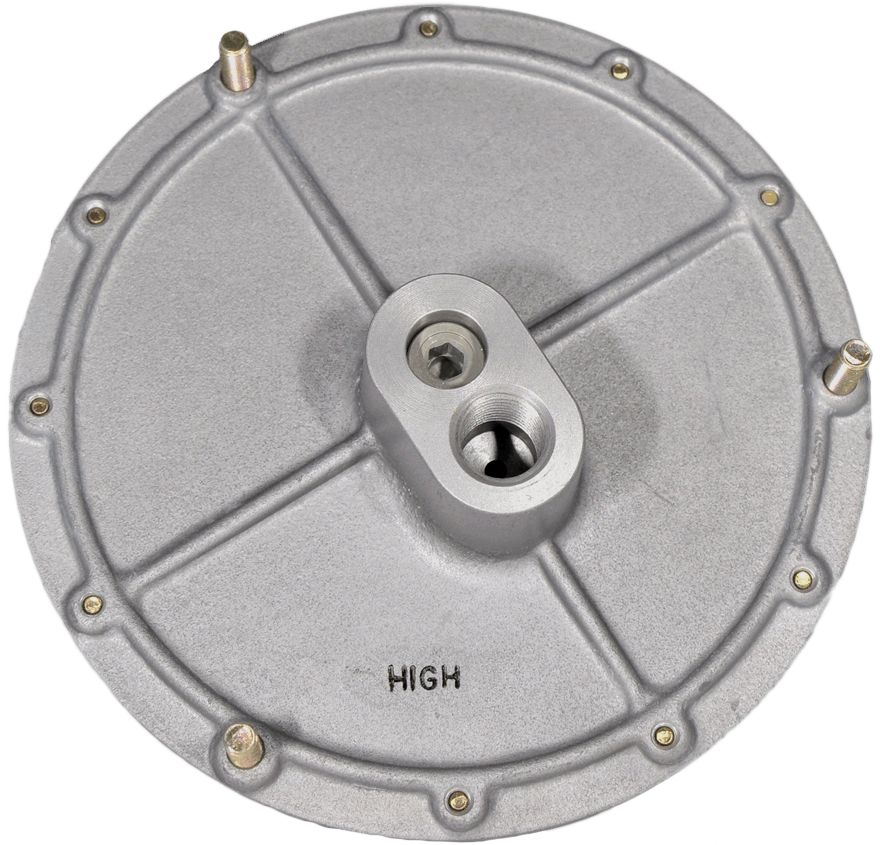

675DE8000 Series Pressure Switch

Brand: Custom Control Sensors
Features
  • Adjustable Set Point Range:
    • Increasing: 1.5 to 31 Inches H20, 3.7 to 77.2 mbar
    • Decreasing: 0.7 to 28 Inches H20, 1.7 to 69.8 mbar
  • Deadband: Approximately:
    • 0.8 to 3.0 Inches H20, 1.9 to 7.5 mbar
  • System Pressure (Maximum): 10 psig, 68.95 kPa, 689 mbar
  • Proof Pressure:
    • Both Ports: 15 psig, 103.42 kPa, 1034 mbar
    • High: 15 psig, 103.42 kPa, 1034 mbar
    • Low: 10 psig, 68.95 kPa, 689 mbar
  • Wetted Materials:
    • Pressure Port: 1/4"-18 Female NPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT or DPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark, Dual Seal
show more
Features
  • Adjustable Set Point Range:
    • Increasing: 1.5 to 31 Inches H20, 3.7 to 77.2 mbar
    • Decreasing: 0.7 to 28 Inches H20, 1.7 to 69.8 mbar
  • Deadband: Approximately:
    • 0.8 to 3.0 Inches H20, 1.9 to 7.5 mbar
  • System Pressure (Maximum): 10 psig, 68.95 kPa, 689 mbar
  • Proof Pressure:
    • Both Ports: 15 psig, 103.42 kPa, 1034 mbar
    • High: 15 psig, 103.42 kPa, 1034 mbar
    • Low: 10 psig, 68.95 kPa, 689 mbar
  • Wetted Materials:
    • Pressure Port: 1/4"-18 Female NPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT or DPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark, Dual Seal
11 models matching criteria
675DEM8001
CCS DUAL-SNAP Differential Pressure Switch, Haz. Area, 1/4"NPT Aluminum Port,Polyimide,Buna-N, DPDT View More

  • Adjustable Set Point Range:
    • Increasing: 2 to 6.9 Inches H20, 4.9 to 17.2 mba
    • Decreasing: 0.2 to 5.1 Inches H20, 0.5 to 12.7 mbar
  • Deadband: Approximately 1.8 Inches H20, 4.5 mbar
  • System Pressure (Maximum): 10 psig, 68.95 kPa, 689 mbar
  • Proof Pressure:
    • Both Ports: 15 psig, 103.42 kPa, 1034 mbar
    • High: 15 psig, 103.42 kPa, 1034 mba
    • Low: 10 psig, 68.95 kPa, 689 mbar
  • Wetted Materials:
    • Pressure Port: 1/4" FNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: DPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark
Contact For Inventory
$4,195.78 USD
Does not ship to US
675DEM8004
CCS DUAL-SNAP Differential Pressure Switch, Haz. Area,1/4"NPT Aluminum Port, Polyimide, Buna-N, DPDT View More

  • Adjustable Set Point Range:
    • Increasing: 19 to 24.9 Inches H20, 47.3 to 62 mbar
    • Decreasing:16.5 to 22.4 Inches H20, 41.1 to 55.8 mbar
  • Deadband: Approximately 2.5 Inches H20, 6.2 mbar
  • System Pressure (Maximum): 10 psig, 68.95 kPa, 689 mbar
  • Proof Pressure:
    • Both Ports: 15 psig, 103.42 kPa, 1034 mbar
    • High: 15 psig, 103.42 kPa, 1034 mba
    • Low: 10 psig, 68.95 kPa, 689 mbar
  • Wetted Materials:
    • Pressure Port: 1/4" FNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: DPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark
Contact For Inventory
$4,357.07 USD
Does not ship to US
675DEM8002
CCS DUAL-SNAP Differential Pressure Switch, Haz. Area, 1/4"NPT Aluminum Port,Polyimide, Buna-N, DPDT View More

  • Adjustable Set Point Range:
    • Increasing: 7 to 12.9 Inches H20, 17.4 to 32.1 mbar
    • Decreasing: 5 to 10.9 Inches H20, 12.4 to 27.2 mbar
  • Deadband: Approximately 2.0 Inches H20, 5.0 mbar
  • System Pressure (Maximum): 10 psig, 68.95 kPa, 689 mbar
  • Proof Pressure:
    • Both Ports: 15 psig, 103.42 kPa, 1034 mbar
    • High: 15 psig, 103.42 kPa, 1034 mba
    • Low: 10 psig, 68.95 kPa, 689 mbar
  • Wetted Materials:
    • Pressure Port: 1/4" FNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: DPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark
Contact For Inventory
$4,416.77 USD
Does not ship to US
675DE8001
CCS DUAL-SNAP Diff. Pressure Switch, Pre-Set, Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N View More
  • Adjustable Set Point Range:
    • Increasing: 1.5 to 6.9 Inches H2O, 3.7 to 17.2 mbar
    • Decreasing: 0.7 to 6.1 Inches H20, 1.8 to 15.3 mbar
  • Deadband: Approximately:
    • 0.8 Inches H20, 1.9 mbar
  • System Pressure (Maximum): 10 psig, 68.95 kPa, 689 mbar
  • Proof Pressure:
    • Both Ports: 15 psig, 103.42 kPa, 1034 mbar
    • High: 15 psig, 103.42 kPa, 1034 mbar
    • Low: 10 psig, 68.95 kPa, 689 mbar
  • Wetted Materials:
    • Pressure Port: 1/4" FNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark
Contact For Inventory
675DE8001-7008
CCS DUAL-SNAP Diff. Pressure Switch, Pre-Set,Haz.Area,1/4"NPTAlum.Port,Polyimide,Buna-N,GoldContacts View More

  • Adjustable Set Point Range:
    • Increasing: 1.5 to 6.9 Inches H20, 3.7 to 17.2 mbar
    • Decreasing: 0.2 to 5.6 Inches H20, 0.5 to 14 mbar
  • Deadband: Approximately 1.3 Inches H20, 3.2 mbar
  • System Pressure (Maximum): 10 psig, 68.95 kPa, 689 mbar
  • Proof Pressure:
    • Both Ports: 15 psig, 103.42 kPa, 1034 mbar
    • High: 15 psig, 103.42 kPa, 1034 mba
    • Low: 10 psig, 68.95 kPa, 689 mbar
  • Wetted Materials:
    • Pressure Port: 1/4" FNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark
Contact For Inventory
675DE8002
CCS DUAL-SNAP Differential Pressure Switch, Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N View More
  • Adjustable Set Point Range:

    • Increasing: 7 to 12.9 Inches H20, 17.4 to 32.1 mbar
    • Decreasing: 5.5 to 11.4 Inches H20, 13.7 to 28.4 mbar
  • Deadband: Approximately 1.5 Inches H20, 3.7 mbar
  • System Pressure (Maximum): 10 psig, 68.95 kPa, 689 mbar
  • Proof Pressure:
    • Both Ports: 15 psig, 103.42 kPa, 1034 mbar
    • High: 15 psig, 103.42 kPa, 1034 mba
    • Low: 10 psig, 68.95 kPa, 689 mbar
  • Wetted Materials:
    • Pressure Port: 1/4" FNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark
Contact For Inventory
675DE8003
CCS DUAL-SNAP Differential Pressure Switch, Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N View More
  • Adjustable Set Point Range:
    • Increasing: 13 to 18.9 Inches H2O, 32.4 to 47.1 mbar
    • Decreasing: 11 to 16.9 Inches H2O, 27.4 to 42.1 mbar
  • Deadband: Approximately 2.0 Inches H20, 5.0 mbar
  • System Pressure (Maximum): 10 psig, 68.95 kPa, 689 mbar
  • Proof Pressure:
    • Both Ports: 15 psig, 103.42 kPa, 1034 mbar
    • High: 15 psig, 103.42 kPa, 1034 mba
    • Low: 10 psig, 68.95 kPa, 689 mbar
  • Wetted Materials:
    • Pressure Port: 1/4" FNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark
Contact For Inventory
675DE8004
CCS DUAL-SNAP Differential Pressure Switch, Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N View More
  • Adjustable Set Point Range:

    • Increasing: 19 to 24.9 Inches H20, 47.3 to 62 mbar
    • Decreasing: 16.5 to 22.4 Inches H20, 41.1 to 55.8 mbar
  • Deadband: Approximately 2.5 Inches H20, 6.2 mbar
  • System Pressure (Maximum): 10 psig, 68.95 kPa, 689 mbar
  • Proof Pressure:
    • Both Ports: 15 psig, 103.42 kPa, 1034 mbar
    • High: 15 psig, 103.42 kPa, 1034 mba
    • Low: 10 psig, 68.95 kPa, 689 mbar
  • Wetted Materials:
    • Pressure Port: 1/4" FNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark
Contact For Inventory
675DEM8003
CCS DUAL-SNAP Differential Pressure Switch, Haz. Area, 1/4"NPT Aluminum Port,Polyimide, Buna-N, DPDT View More

  • Adjustable Set Point Range:
    • Increasing: 13 to 18.9 Inches H20, 32.4 to 47.1 mbar
    • Decreasing: 10.8 to 16.7 Inches H20, 26.9 to 41.6 mbar
  • Deadband: Approximately 2.2 Inches H20, 5.5 mbar
  • System Pressure (Maximum): 10 psig, 68.95 kPa, 689 mbar
  • Proof Pressure:
    • Both Ports: 15 psig, 103.42 kPa, 1034 mbar
    • High: 15 psig, 103.42 kPa, 1034 mba
    • Low: 10 psig, 68.95 kPa, 689 mbar
  • Wetted Materials:
    • Pressure Port: 1/4" FNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: DPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark
Contact For Inventory
675DEM8005
CCS DUAL-SNAP Differential Pressure Switch, Haz. Area,1/4"NPT Aluminum Port, Polyimide, Buna-N, DPDT View More

  • Adjustable Set Point Range:
    • Increasing: 25 to 31 Inches H20, 62.3 to 77.2 mbar
    • Decreasing: 22 to 28 Inches H20, 54.8 to 69.8 mbar
  • Deadband: Approximately 3.0 Inches H20, 7.5 mbar
  • System Pressure (Maximum): 10 psig, 68.95 kPa, 689 mbar
  • Proof Pressure:
    • Both Ports: 15 psig, 103.42 kPa, 1034 mbar
    • High: 15 psig, 103.42 kPa, 1034 mba
    • Low: 10 psig, 68.95 kPa, 689 mbar
  • Wetted Materials:
    • Pressure Port: 1/4" FNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: DPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark
Contact For Inventory

Specifications

Adjustment Type

  • Field Adjustable

Approvals & Certifications

  • ATEX
  • CE
  • CRN
  • CRN - N.W. Territories
  • CSA
  • cUL
  • Dual Seal
  • EMC
  • LVD
  • PED
  • RoHS
  • RTN
  • UL

Deadband, Approximate

  • Inches WC: 0.8 to 3.0
  • mbar: 1.9 to 7.5

Diaphragm Material

  • Polyimide

Electrical - Free Leads

  • 18" (45 cm) Free Leads
  • 18" (45 cm) Teflon Leadwire

Electrical Assembly

  • Hermetic Seal

Electrical Certification

  • ATEX - Baseefa Certified for Potentially Explosive Atmospheres. Certificate # #08-ATEX-0347X. (Option Y)
  • c-UL, UL/CSA Explosion-proof: Div. 1, 2 Hermetically Sealed Electrical Assembly P/N 17-51 (17-73 for M Model Option), Listed by Both Underwriter’s Laboratories, Inc. (File No. E32961) & Canadian Standard Association (CSA)Testing Laboratories (File No. L

Electrical Connectors

  • 1/2" NPT Male

Electrical Contacts

  • Gold
  • Silver

Electrical Rating

  • 1 A at 125 Vac, 50/60 Hz
  • 15 A at 125/250/480 Vac Resistive, 0.5 A at 125 Vdc, 0.2 A at 250 Vdc

Enclosure, Body Material

  • Aluminum

Environmental Protection

  • Hazardous Area
  • IP54
  • IP66
  • NEMA 13
  • NEMA 4, 7, 9, 13 / IP54, 66
  • NEMA 7
  • NEMA 9

NPT Connection

  • 1/4" NPT Female

Operating Temperature

  • -40° to 86° C (-40° to 187° F)

O-Ring Material

  • Buna-N
  • Viton

Process Connection Material

  • Aluminum

Proof Pressure - Both Ports

  • kPa: 103.42
  • mbar: 1034
  • psig: 15

Proof Pressure - High Over Low

  • kPa: 103.42
  • mbar: 1034
  • psig: 15

Proof Pressure - Low Over High

  • kPa: 68.95
  • mbar: 689
  • psig: 10

Service

  • Sweet (Oil & Gas)

Set Point - Decreasing

  • Inches WC: -0.7 to 31
  • mbar: -1.7 to 77.2

Set Point - Increasing

  • Inches WC: -1.5 to 31
  • mbar: -3.7 to 77.2

Switch Type

  • DPDT
  • SPDT

System Pressure

  • kPa: 68.95
  • mbar: 689
  • psig: 10
