MND Tank Cloud Display

Brand: Automation Products Group Inc. (APG)
The MND Modbus Network Display provides a local display that can be wired to a local Tank Cloud network, or modbus sensor, displaying readings from any of the sensors in the network (up to ten). It is easy to use and very flexible. The MND can operate in either a master or sniffer mode. With the ability to listen in on sensors or poll sensors for current readings, the MND provides a valuable display option for your network.
Features
  • Large, full 5-digit display with 0.4 in. characters
  • Environmentally sealed housing; IP67
  • User selectable units of measure (barrels, cubic inches, liters, cubic meters, gallons, million cubic feet, cubic feet, custom)
show more

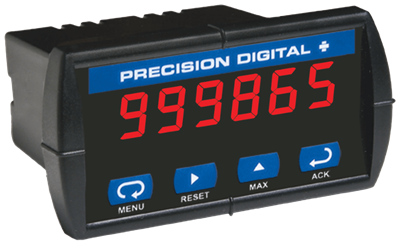

Images are representations only.
The MND Modbus Network Display provides a local display that can be wired to a local Tank Cloud network, or modbus sensor, displaying readings from any of the sensors in the network (up to ten). It is easy to use and very flexible. The MND can operate in either a master or sniffer mode. With the ability to listen in on sensors or poll sensors for current readings, the MND provides a valuable display option for your network.
Features
  • Large, full 5-digit display with 0.4 in. characters
  • Environmentally sealed housing; IP67
  • User selectable units of measure (barrels, cubic inches, liters, cubic meters, gallons, million cubic feet, cubic feet, custom)

The Part Numbers and SKU's listed may not currently be in stock. Please find the part number you are looking for and request a quote to determine availability

1 - 2 of 2 Part Numbers
MND-10020-5-2-0-0000
MND-10020-5-2-0-0000
APG MND Series Modbus Network Display, 28 VDC, RS-485 Output, 3" Round Plastic Housing, 4-Pin M12 Male Connector

Overview

  • External Power: 9-28 VDC
  • Housing: 3", bottom and rear port.
  • Connector: 4 pin M12 female bottom, 4 pin male rear
  • Floats:
    • (1) 5.5"H x 3"W Blue Polyurethane
    • (1) 5.5"H x 3"W Red Polyurethane

  • IP67, CE
MND-202051-2-0-0
MND-202051-2-0-0
APG MND Series Modbus Network Display, 9 V Lithium Battery, RS-485 Output, (1) Relay, 3" Round Plastic Housing, 4-Pin M12 Male Connector

Overview

MND Display

  • 2: Input Power -Battery 9V Lithium
  • 0: Analog Output - RS-485 output
  • 2: Relays - Relay 1 (controls on/off for a slave sensor)
  • 0: Enclosure - 3" round plastic housing
  • 5: Mounting/Cover - Flat Mount Bracket (Black Acrylic 3/16")
  • 1: Main Connection Location - Position 1
  • 2: Connector Table - 4 pin M12 Male
  • 0: Backlight - no backlight
1 - 2 of 2 Part Numbers

MND Tank Display

Input Power

Analog Output

Relay

  • view details

Enclosure

Mounting

Connection Location

Connection Cable

Display

Specifications

Approvals & Certifications

  • CE

Communication

  • Baud Rate: 2,400, 9,600, 19,200, 38,400

Display

  • 5-Digits LCD, 0.4" Digits

Enclosure, Body Material

  • Injected Molded Base (EMI-X PDX-W-88341)

Environmental Protection

  • IP67

Operating Temperature - Electronics

  • -18° to 71° C (0° to 160° F)

Options

  • User Selected Units of Measure

Output

  • 0-5 Vdc
  • 4-20 mA

Storage Temperature

  • -30° to 71° C (-30° to 160° F)

Supply Voltage

  • 3.6 V Lithium
  • 9-28 Vdc
  • 9 V Lithium Battery
