BV06 & BV07 Flanged Instrumentation DBB

Brand: Bifold Group
This range of products is designed to replace conventional multi-valve installations currently in use for interface with pressure measuring systems. By combining customer specified valves into a single manifold the number of leak paths is reduced resulting in a one piece solution also providing positive installation cost savings and operational safety factors.
Features
  • 1/2" to 3" N.B. flanges (15 to 50 DN)
  • ANSI B16.5 150 2500 flange class and API 10,000
  • 10 mm / 15 mm / 20 mm / 25 mm full bore valve design
  • 1/2" NPT (female) standard outlet
  • 1/2" NPT (female) standard vent
  • Variety of optional end connection sizes and thread forms
  • Standard materials of construction: stainless steel ASTM A182 F316 / F316L, carbon steel ASTM A350 LF2 / A105, duplex ASTM A182 F51
  • Optional materials include Super Duplex, Monel, Hastelloy®, 6Mo, Incoloy®
  • Instrument connections available
  • Raised face and ring type joint flange face styles
  • One-piece forged construction flange as standard
  • Optional fire safe designed to meet BS6755 Part 2 / API 607
  • Pressure boundary designs calculated to ASME VIII Division 1
  • 4:1 factor of safety
  • Heat code traceable material to EN10204.3.1
  • Bubble tight shut off
  • Positive lever stop
  • Optional locking and anti tamper devices for all valve types available
  • NACE MR 0175 / ISO 15156 compliant material available on request
  • Permanent marked body with full specification details
  • Available with various non-threaded connections
show more

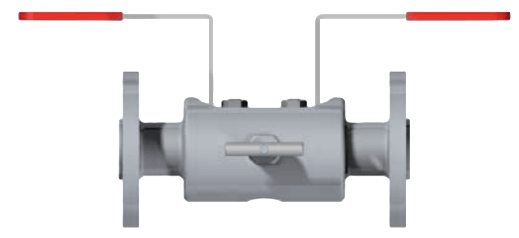

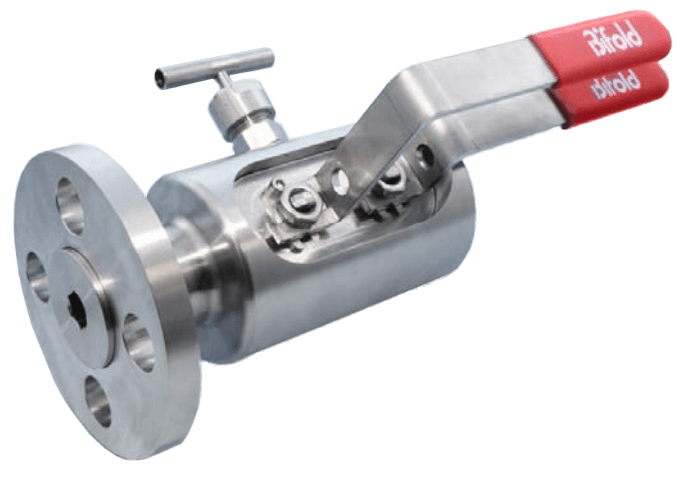

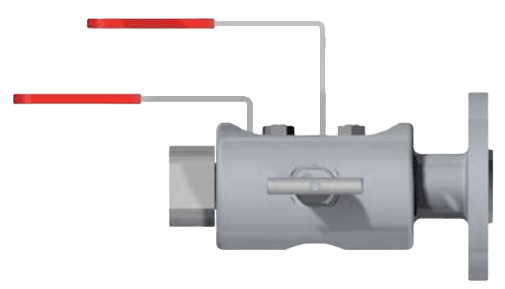

Images are representations only.
This range of products is designed to replace conventional multi-valve installations currently in use for interface with pressure measuring systems. By combining customer specified valves into a single manifold the number of leak paths is reduced resulting in a one piece solution also providing positive installation cost savings and operational safety factors.
Features
  • 1/2" to 3" N.B. flanges (15 to 50 DN)
  • ANSI B16.5 150 2500 flange class and API 10,000
  • 10 mm / 15 mm / 20 mm / 25 mm full bore valve design
  • 1/2" NPT (female) standard outlet
  • 1/2" NPT (female) standard vent
  • Variety of optional end connection sizes and thread forms
  • Standard materials of construction: stainless steel ASTM A182 F316 / F316L, carbon steel ASTM A350 LF2 / A105, duplex ASTM A182 F51
  • Optional materials include Super Duplex, Monel, Hastelloy®, 6Mo, Incoloy®
  • Instrument connections available
  • Raised face and ring type joint flange face styles
  • One-piece forged construction flange as standard
  • Optional fire safe designed to meet BS6755 Part 2 / API 607
  • Pressure boundary designs calculated to ASME VIII Division 1
  • 4:1 factor of safety
  • Heat code traceable material to EN10204.3.1
  • Bubble tight shut off
  • Positive lever stop
  • Optional locking and anti tamper devices for all valve types available
  • NACE MR 0175 / ISO 15156 compliant material available on request
  • Permanent marked body with full specification details
  • Available with various non-threaded connections

BV06 & BV07

Valve Configuration

Ball Operator Type

Flange Size

Class

Flange Style

Threaded Connection

Vent Operator Type

Vent Connection

Material

Bolt Material

Bore Size

Seal Type

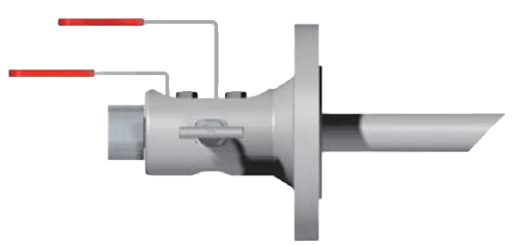

Probe Options

Injection Quill Options

Connection (Inlet x Outlet)

Surface Finish

Specifications

Brand

Approvals & Certifications

  • ISO 15156

Approvals & Certifications

  • Heat Code Traceable Material to EN10204-3-1

Bore Size

  • 0.39" (10 mm)
  • 0.59" (15 mm)
  • 0.78" (20 mm)
  • 0.98" (25 mm)

Cone & Thread Connection

  • 1/4" Female Medium Pressure
  • 3/8" Female Medium Pressure
  • 9/16" Female Medium Pressure

Direct Mount

  • Yes

Enclosure Finish

  • Paint
  • Zinc

Enclosure, Body Material

  • Alloy 625 or Inconel®
  • Alloy 825 or Inconel®
  • Austenitic Stainless Steel (A182 F44)
  • Carbon Steel (ASTM A350 LF2 / A105)
  • Duplex Stainless Steel (ASTM A182 F51)
  • Hastelloy®
  • Incoloy®
  • Monel®
  • Stainless Steel (ASTM A182 F316/F316L)
  • Super Duplex Stainless Steel (A182 F55)

Environmental Protection

  • Fire Safe Designed to Meet BS6755 Part 2 / API 607

Flange Size - 1" (DN25)

  • 1" (DN25) - 10,000#
  • 1" (DN25) - 150#
  • 1" (DN25) - 1500#
  • 1" (DN25) - 2500#
  • 1" (DN25) - 300#
  • 1" (DN25) - 5000#
  • 1" (DN25) - 600#
  • 1" (DN25) - 900#

Flange Size - 1/2" (DN15)

  • 1/2" (DN15) - 10,000#
  • 1/2" (DN15) - 150#
  • 1/2" (DN15) - 1500#
  • 1/2" (DN15) - 2500#
  • 1/2" (DN15) - 300#
  • 1/2" (DN15) - 5000#
  • 1/2" (DN15) - 600#
  • 1/2" (DN15) - 900#

Flange Size - 1-1/2" (DN40)

  • 1-1/2" (DN40) - 10,000#
  • 1-1/2" (DN40) - 150#
  • 1-1/2" (DN40) - 1500#
  • 1-1/2" (DN40) - 2500#
  • 1-1/2" (DN40) - 300#
  • 1-1/2" (DN40) - 5000#
  • 1-1/2" (DN40) - 600#
  • 1-1/2" (DN40) - 900#

Flange Size - 1-13/16" (DN45)

  • 1-13/16" (DN45) - 10,000#
  • 1-13/16" (DN45) - 150#
  • 1-13/16" (DN45) - 1500#
  • 1-13/16" (DN45) - 2500#
  • 1-13/16" (DN45) - 300#
  • 1-13/16" (DN45) - 5000#
  • 1-13/16" (DN45) - 600#
  • 1-13/16" (DN45) - 900#

Flange Size - 2" (DN50)

  • 2" (DN50) - 10,000#
  • 2" (DN50) - 150#
  • 2" (DN50) - 1500#
  • 2" (DN50) - 2500#
  • 2" (DN50) - 300#
  • 2" (DN50) - 5000#
  • 2" (DN50) - 600#
  • 2" (DN50) - 900#

Flange Size - 2-1/16" (DN52)

  • 2-1/16" (DN52) - 10,000#
  • 2-1/16" (DN52) - 150#
  • 2-1/16" (DN52) - 1500#
  • 2-1/16" (DN52) - 2500#
  • 2-1/16" (DN52) - 300#
  • 2-1/16" (DN52) - 5000#
  • 2-1/16" (DN52) - 600#
  • 2-1/16" (DN52) - 900#

Flange Size - 3/4" (DN20)

  • 3/4" (DN20) - 10,000#
  • 3/4" (DN20) - 150#
  • 3/4" (DN20) - 1500#
  • 3/4" (DN20) - 2500#
  • 3/4" (DN20) - 300#
  • 3/4" (DN20) - 5000#
  • 3/4" (DN20) - 600#
  • 3/4" (DN20) - 900#

Flange Type

  • API
  • Flat Face (FF)
  • Raised Face (RF)
  • RTJ - Ring Typical Joint

NACE & NIST

  • NACE MR 0175

NPT Connection

  • 1/2" NPT Female
  • 1/4" NPT Female
  • 3/4" NPT Female

NPT Outlet

  • 1/2" NPT Female

Nut & Bolt Material

  • 316 Stainless Steel
  • A193 B8M
  • A320 L7M Z&Y

Port

  • Full

Pressure Range

  • psi: 0 to 15,000 (kPa: 0 to 103,500, bar: 0 to 1,035)

Ratio

  • 4:1 Factor of Safety

Rotation

  • Bubble Tight Shut Off Valve Seats

Seat/Seal Material

  • Seal: Graphite
  • Seal: HNBR
  • Seal: PEEK
  • Seal: RTFE (Reinforced Teflon)
  • Seal: V918 Elastomer
  • Seal: Viton

Valve Type

  • Manual

Vent Connection Size

  • 1/2" NPT Female
  • 1/4" NPT Female
  • 3/4" NPT Female
