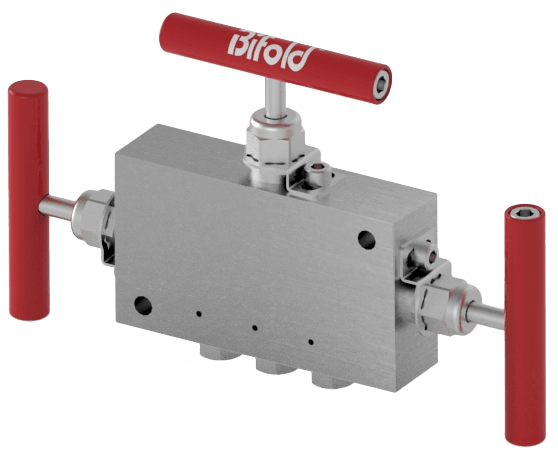

MPNM Medium Pressure Needle Valve Manifolds

Brand: Bifold - by Rotork
The bifold range of medium pressure needle valve manifolds have been developed to provide safe and reliable intervention and control of both liquid and gas service applications up to 20,000 psi / 1379 bar.

They are available in a variety of configurations including single block and bleed and a double block and bleed designed for instrument calibration or repair.

The manifolds house numerous needle valves, reducing the number of possible leak paths and in turn reducing system costs and weight.
Features
  • Available in a number of configurations for a variety of applications
  • Maintenance free stem sealing
  • Non-rotating anti-galling tip as standard
  • Vee tip stem
  • High tensile 316L CW stainless steel bodies as standard
  • Compact design
  • Exotic materials available upon request
  • Traceability via a unique serial number stamped on the valve body
  • Available in a number of temperature ranges from -73° to 315°C (-20° to 170°C as standard)
  • Tube sizes from 1/4" to 1"
show more
The bifold range of medium pressure needle valve manifolds have been developed to provide safe and reliable intervention and control of both liquid and gas service applications up to 20,000 psi / 1379 bar.

They are available in a variety of configurations including single block and bleed and a double block and bleed designed for instrument calibration or repair.

The manifolds house numerous needle valves, reducing the number of possible leak paths and in turn reducing system costs and weight.
Features
  • Available in a number of configurations for a variety of applications
  • Maintenance free stem sealing
  • Non-rotating anti-galling tip as standard
  • Vee tip stem
  • High tensile 316L CW stainless steel bodies as standard
  • Compact design
  • Exotic materials available upon request
  • Traceability via a unique serial number stamped on the valve body
  • Available in a number of temperature ranges from -73° to 315°C (-20° to 170°C as standard)
  • Tube sizes from 1/4" to 1"

Specifications

Configuration

  • Double Block
  • Double Block & Bleed (Inline Pattern, Gauge Ports)
  • Single Block & Bleed (Inline Pattern)

Enclosure, Body Material

  • High Tensile 316L CW Stainless Steel

Handle Assembly Material

  • Stainless Steel Handle

Materials of Construction

  • 6Mo / 254MO Stainless Steel
  • Duplex UNS S31803
  • Hastelloy C-276
  • Inconel 625 UNS N06625
  • Inconel 825 UNS N08825
  • Monel 400 UNS N04400
  • Nickel 200 UNS N02200
  • Super Duplex UNS S32750 / 32760
  • Titanium Grade 2 UNS R50400

O-Ring Material

  • AFLAS
  • Graphite
  • HNBR
  • Viton

Orifice Size

  • 0.11” to 0.20” (2.80 to 5.20 mm)

Supply Pressure - Maximum

  • psi: 20,000 (kPa: 137,900, bar: 1,379)

Temperature Range

  • -20° to 170° C (-4° to 338° F) - HNBR
  • -20° to 200° C (-4° to 392° F) - Viton
  • -20° to 250° C (-4° to 482° F) - AFLAS
  • -75° to 315° C (-99° to 599° F) - Graphite

Tube Inlet

  • 1” Tube
  • 1/4” Tube
  • 3/4” Tube
  • 3/8” Tube
  • 9/16” Tube

Tube Outlet

  • 1” Tube
  • 1/4” Tube
  • 3/4” Tube
  • 3/8” Tube
  • 9/16” Tube

Vent

  • Anti Tamper Vent

Vent Connection Size

  • 1/4”
  • 3/8”

Typical Applications

  • Gas Service
