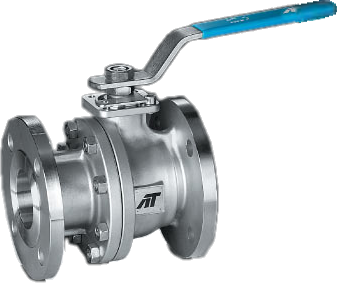

F90 Series Manual Ball Valve

Brand: A-T Controls, Inc.
Request Information
Favorite
Features
  • Design: 2-Piece Firesafe Flanged Full Port
  • Size: 1/2" to 4"
  • Port: Full
  • Pyramidal Stem Packing: Yes
  • Materials of Construction:
    • Body: 316 Stainless Steel, WCB
    • Trim: 316 Stainless Steel
    • Seats: RTFE, PTFE, 50/50%,TFM-1600, UHMWPE, MG1241
  • End Connections: 150# Flanged Ends
  • Max Pressure Rating: 285 psi
show more
Features
  • Design: 2-Piece Firesafe Flanged Full Port
  • Size: 1/2" to 4"
  • Port: Full
  • Pyramidal Stem Packing: Yes
  • Materials of Construction:
    • Body: 316 Stainless Steel, WCB
    • Trim: 316 Stainless Steel
    • Seats: RTFE, PTFE, 50/50%,TFM-1600, UHMWPE, MG1241
  • End Connections: 150# Flanged Ends
  • Max Pressure Rating: 285 psi
Close

Displaying prices & availability for United States in USD.Change location orcurrency

12 models matching criteria
F90-F1-0200-XXX
A-T CONTROLS Series F90 2-Piece Full-Port Ball Valve, 150# Flange, 2", w RTFE View More
  • F: Firesafe Tested
  • 90: 2-Piece Flanged, Full Port (Investment Cast)
    • ​SST Body & Trim

  • F1: 150# Flanged Ends
  • 0200: 2" Valve Size
  • X: Reinforced TFE Seats (RTFE)
  • XX: No Specials
2 - 4 weeks
$469.89USD
$14.52 Shipping
F90-F1-0200-SXX
A-T CONTROLS Series F90 2-Piece Full-Port Ball Valve, 150# Flange, 2", w 50/50 SST TFE Seats View More
  • Design: Firesafe 150# Flanged 2-Piece Split Body
  • Size: 2" NPT
  • Port: Full
  • Pyramidal Stem Packing: Yes
  • Materials of Construction:
    • Body: 316 Stainless Steel
    • Trim: 316 Stainless Steel
    • Seats: 50% Stainless Steel Powder / 50% TFE

  • End Connections: 150# Flanged Ends
  • Max Pressure Rating: 285 psi
2 - 4 weeks
$536.71USD
$14.52 Shipping
F90-F1-0300-XXX
A-T CONTROLS Series F90 2-Piece Full-Port Ball Valve, 150# Flange, 3", w RTFE View More
  • F: Firesafe Tested
  • 90: 2-Piece Flanged, Full Port (Investment Cast)
    • ​SST Body & Trim

  • F1: 150# Flanged Ends
  • 0300: 3" Valve Size
  • X: Reinforced TFE Seats (RTFE)
  • XX: No Specials
2 - 4 weeks
$971.02USD
$14.52 Shipping
F90-F1-0300-SXX
A-T CONTROLS Series F90 2-Piece Full-Port Ball Valve, 150# Flange, 3", w 50/50 SST TFE Seats View More
  • F: Firesafe Tested
  • 90: 2-Piece Flanged, Full Port (Investment Cast)
    • ​SST Body & Trim

  • F1: 150# Flanged Ends
  • 0300: 3" Valve Size
  • S: 50/50 STFE Seats
  • XX: No Specials
2 - 4 weeks
$1,078.51USD
$14.52 Shipping
F90-F1-0400-XXX
A-T CONTROLS Series F90 2-Piece Full-Port Ball Valve, 150# Flange, 4", RTFE Seats View More
  • F: Firesafe Tested
  • 90: 2-Piece Flanged, Full Port (Investment Cast)
    • ​SST Body & Trim

  • F1: 150# Flanged Ends
  • 0400: 4" Valve Size
  • X: Reinforced TFE Seats (RTFE)
  • XX: No Specials
2 - 4 weeks
$1,422.76USD
$14.52 Shipping
F90-F1-300/3RHD-XX
A-T CONTROLS Series F90 2-Piece Full-Port Ball Valve, 150# Flange, 3", Expl Proof 3R200DA Pneumatic View More
  • F: Firesafe Tested
  • 90: 2-Piece Flanged, Full Port (Investment Cast)
    • ​SST Body & Trim

  • F1: 150# Flanged Ends
  • 300: 3" Valve Size
  • 3RHD: 3R200DA Pneumatic Actuator, Double Acting
  • X: Reinforced TFE Seats (RTFE)
  • X: No Specials
2 - 3 weeks
$1,476.50USD
$14.52 Shipping
F90-F1-0400-SXX
A-T CONTROLS Series F90 2-Piece Full-Port Ball Valve, 150# Flange, 4", w 50/50 SST TFE Seats View More
  • F: Firesafe Tested
  • 90: 2-Piece Flanged, Full Port (Investment Cast)
    • ​SST Body & Trim

  • F1: 150# Flanged Ends
  • 0400: 4" Valve Size
  • S: 50/50 STFE Seats
  • XX: No Specials
2 - 4 weeks
$1,515.72USD
$14.52 Shipping
F90-F1-300/2R6S-XX-LT
A-T CONTROLS Series F90 2-Piece Full-Port Ball Valve, 150# Flange, 3",Spring Return Act, Low Temp View More
  • F: Firesafe Tested
  • 90: 2-Piece Flanged, Full Port (Investment Cast)
    • ​SST Body & Trim

  • F1: 150# Flanged Ends
  • 300: 3" Valve Size
  • 2R6S: Pneumatic Spring Return Actuator, 2R300 SR
  • X: Reinforced TFE Seats (RTFE)
  • X: No Specials
  • LT: Low Temperature Seals
2 - 4 weeks
$1,760.47USD
$14.52 Shipping
F90-F1-300/XEC1-XX
A-T CONTROLS Series F90 2-Piece Full-Port Ball Valve, 150# Flange, 3", Expl Proof XC 1350 Actuator View More
  • F: Firesafe Tested
  • 90: 2-Piece Flanged, Full Port (Investment Cast)
    • ​SST Body & Trim

  • F1: 150# Flanged Ends
  • 300: 3" Valve Size
  • XEC1: XC1350 Series Explosion Proof Actuator. On/Off, CSA, Class I, Div.I, 120VAC
  • X: Reinforced TFE Seats (RTFE)
  • X: No Specials
2 - 4 weeks
$2,435.90USD
$14.52 Shipping
F90-GLAND BUSHING
A-T CONTROLS Misc Parts - Gland Bushing
2 - 4 weeks
Show More Models (1)
Close
Close

Specifications

Brand

Direct Mount

  • No

Enclosure, Body Material

  • 316 Stainless Steel
  • WCB Carbon Steel

Flange Size - 1" (DN 25)

  • 1" (DN 25) - 150#

Flange Size - 1/2" (DN 15)

  • 1/2" (DN 15) - 150#

Flange Size - 1-1/2" (DN 40)

  • 1-1/2" (DN 40) - 150#

Flange Size - 2" (DN 50)

  • 2" (DN 50) - 150#

Flange Size - 2-1/2" (DN 65)

  • 2-1/2" (DN 65) - 150#

Flange Size - 3" (DN 80)

  • 3" (DN 80) - 150#

Flange Size - 3/4" (DN 20)

  • 3/4" (DN 20) - 150#

Flange Size - 4" (DN 100)

  • 4" (DN 100) - 150#

Options

  • Fugitive Emissions Bonnet
  • Gear Operator
  • Vented Ball

Port

  • Full

Pressure Rating

  • psi: 285

Pyramidal Stem Packing

  • Yes

Seat / Seal Material

  • 50 % Stainless Steel Powder / 50 % Carbon-Filled Teflon
  • CTFE (15 % Carbon Steel Powder / 85 % Teflon Seats)
  • Delrin
  • PEEK
  • PTFE (Carbon-Filled Teflon)
  • RTFE (Reinforced Teflon)
  • UHMWPE

Standard Features

  • 2-Piece Flanged Full Port (Investment Cast)
  • Fire-Safe

TA-Luft Certified

  • Yes

Trim Material

  • 316 Stainless Steel

Valve Type

  • Manual
