Images are representations only.

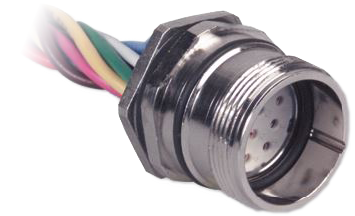

M23 Multifast Receptacle

Brand: Turck
Features
  • Analog Communication
  • Threads (Male or Female):
    • 1/2"-14 NPSM
    • 1/2"-14 NPT
    • 3/4"-14 NPT
    • M20x1.5
  • Housing Material:
    • Nickel Plated Brass
    • Stainless Steel
show more
Features
  • Analog Communication
  • Threads (Male or Female):
    • 1/2"-14 NPSM
    • 1/2"-14 NPT
    • 3/4"-14 NPT
    • M20x1.5
  • Housing Material:
    • Nickel Plated Brass
    • Stainless Steel
16 models matching criteria
CKFD 19-19-1M
TURCK M23 multifast Receptacle, 19-Pin, Female, 1m Leads, 8-Port, 2-Signals/Port, NCNR
2 - 8 weeks
CKFD 19-19-2M
TURCK M23 multifast Receptacle, 19-Pin, Female, 2m Leads, 8-Port, 2-Signals/Port, NCNR
2 - 8 weeks
CKFL 19-19-0.5M
TURCK M23 multifast Receptacle, 19-Pin, Female, 0.5m Leads, NCNR
2 - 8 weeks
CKFL 19-19-1M
TURCK M23 multifast Receptacle, 19-Pin, Female, 1m Leads, NCNR View More
19-pin, Female, 1m Leads
Out of Stock
CSFD 19-19-1M
TURCK M23 multifast Receptacle, Rear Mount, 19-Pin, Male, 1m Leads, 8-Port, 2-Signals/Port, NCNR
2 - 8 weeks
CSFD 19-19-3M
TURCK M23 multifast Receptacle, Rear Mount, 19-Pin, Male, 3m Leads, 8-Port, 2-Signals/Port, NCNR
4 - 5 weeks
CSFL 12-12-1M
TURCK M23 multifast Receptacle, 12-Pin, Male, 1m Leads, NCNR View More
12-pin, Male, 1m Leads
Out of Stock
CSFL 19-19-1M
TURCK M23 multifast Receptacle, Rear Mount, 19-Pin, Male, 1m Leads, 8-port, 2-Signals/Port, NCNR View More
  • Process Receptacle:
    • 19-Pin Standard Front Mount
    • M23 Threads

  • Connector:
    • "multifast" Series
    • Male Single Ended
    • Nickel Plated Brass Connector
    • 19 Contacts / 3 x #18 AWG, 16 x #22 AWG Wires
    • Long Mounting Threads

  • Wires:
    • (3) x # 18 AWG, (16) x # 22 AWG
    • 9 A on Pin 6, 12,19
    • 2 A on all other Pins
    • 8 Port, 2 Signals per Port

  • Lead Length:
    • 1 Meter

  • Temperature Range: -40°C to +105°C (-40°F to +221°F)
  • Protection Class:
    • IEC67

2 - 8 weeks
DKF 28-27-0.5M
TURCK M27 multifast Receptacle, 28-Pin, Front Mount, Female, 0.5m Leads, NCNR View More
  • Process Receptacle:
    • 27-Wire Standard Duty
    • M27 Threads

  • Connector:
    • "multifast" Series
    • Female Single Ended, with Locknut
    • Nickel Plated Brass Connector
    • 28 Contacts / 27 x #22 AWG Conductors

  • Wires:
    • (27) x # 22 AWG

  • Length of Cable:
    • 0.5 Meters

  • Temperature Range: -30°C to +80°C (-22°F to +176°F)
  • Mounting: 28.5 (1.122) Hole or PG 21 Thrd
  • Protection Class:
    • IEC67

2 - 8 weeks
DSF 28-27-0.5M
TURCK M27 multifast Receptacle, 28-Pin, Front Mount, Male, 0.5m Leads, NCNR View More
  • Process Receptacle:
    • 27-Wire Standard Duty
    • M27 Threads

  • Connector:
    • "multifast" Series
    • Male Single Ended, with Locknut
    • Nickel Plated Brass Connector
    • 28 Contacts / 27 x #22 AWG Conductors

  • Wires:
    • (27) x # 22 AWG

  • Length of Cable:
    • 0.5 Meters

  • Temperature Range: -40°C to +80°C (-40°F to +176°F)
  • Mounting: 28.5 (1.122) Hole or PG 21 Thrd
  • Protection Class:
    • IEC67

2 - 8 weeks

Specifications

Brand

Connection Pin-Out

  • 12-Pin
  • 19-Pin

Enclosure, Body Material

  • Nickel-Plated Brass
  • Stainless Steel

Environmental Protection

  • IP10
  • IP54
  • IP66
  • NEMA 1, 3, 4, 6P / IP10, 54, 66
  • NEMA 3
  • NEMA 4
  • NEMA 6P

Process Temperature

  • -40° to 105° C (-40° to 221° F)

Version / Leadwires

  • 11 x 18 AWG
  • 12 x 18 AWG
  • 12-Wire
  • 16 x 22 AWG
  • 19-Wire
  • 3 x 18 AWG
