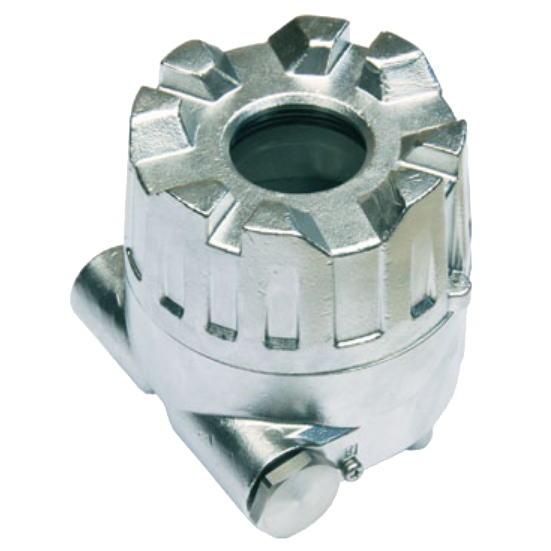

SPTM-65V Smart Positioner

Brand: Young Tech Co., Ltd
The SPTM-65V is a flame-type Electronic Position Transmitter that senses mechanical position change of stem being on the valve or similar device and converses to current signal of DC4~20mA outputs.
Features
  • Convenient wiring: 2-Wire type
  • High accuracy and reliability
  • Simple change for RA vs DA action setting
  • Convenient adjustment of zero and span
show more
Images are representations only.
The SPTM-65V is a flame-type Electronic Position Transmitter that senses mechanical position change of stem being on the valve or similar device and converses to current signal of DC4~20mA outputs.
Features
  • Convenient wiring: 2-Wire type
  • High accuracy and reliability
  • Simple change for RA vs DA action setting
  • Convenient adjustment of zero and span

SPTM-65V

Motion Type

Lever Type

Specifications

Ambient Temperature Range

  • -40° to 85° C (-40° to 185° F)

Conduit Connection

  • PF 3/4 (G 3/4")

Enclosure, Body Material

  • 316 Stainless Steel

Environmental Protection

  • Ex D IIC T6
  • IP67

Hysteresis

  • ± 0.2% of Span

Independent Linearity

  • ± 1% of Full Scale

Input

  • 2-Wire

Input Signal

  • 0 to 30°
  • 0 to 90°

Load Impedance

  • Maximum

Operating Temperature

  • -40° to 85° C (-40° to 185° F)

Operating Temperature - Display

  • -30° to 85° C (-22° to 185° F)

Output

  • 4-20 mA DC

Sensitivity

  • ± 0.2%

Supply Voltage

  • 10-30 Vdc
