Images are representations only.
Description
The Model 377CB valve has been designed as an economical and compact valve and yet provide the facilities for remote mount double block and bleed function. Connections can be 1/2" NPT male and female as shown with a 1/4" gauge / vent port available on each side of the body. This design is suitable for applications up to psi: 6,000 (kPa: 41,369, bar: 420).
Configure
Model 377CB
Inlet / Outlet Connection

Materials of Construction

Packing Material

Specifications
Specifications
Drain, Vent Valves & Plug
- 1/4" NPT
Enclosure Finish
- Natural for Stainless Steel
- Zinc-Plated for Carbon Steel
Enclosure, Body Material
- 316 Stainless Steel
- Carbon Steel
- Hastelloy® C
- Monel® 400
Gland Packing Material
- Graphoil (Temperatures Above 180° C (356° F))
- PTFE
NPT Inlet
- 1/2" NPT Female
- 1/2" NPT Male
NPT Outlet
- 1/2" NPT Female
- 1/2" NPT Male
Packing Material
- Grafoil
- Teflon
Pressure Range
- psi: 0 to 6,000 (kPa: 0 to 41,370, bar: 0 to 413.7)
Proof Pressure
- Test Pressure - psi: 580.2 (kPa: 4,000, bar: 40) at 25° C (77° F) Room Temperature for Pneumatic (Seat)
- Test Pressure - psi: 6,019 (kPa: 41,500, bar: 415) at 25° C (77° F) Room Temperature for Hydrostatic (Seat)
- Test Pressure - psi: 8,992 (kPa: 62,000, bar: 620) at 25° C (77° F) Room Temperature for Hydrostatic (Body)
Valves
- Two
Documentation
Documentation
Reviews (0)
Review this product and let us know your experiences
Write a ReviewQ & A (0)
Similar Products
/-322GV-2-Valve-Manifold/Thumbs/400_main_IM_Model_322GV_2_Valve_Manifold.png)
Model 322GV 2-Valve Manifold
International Metal Engineering (IME)
/-387FM-2-Valve-Manifold/Thumbs/400_main_IM_Model_387FM_2_Valve_Manifold.png)
Model 387FM 2-Valve Manifold
International Metal Engineering (IME)

2-Valve Manifold
Mac-Weld Machining Ltd.

Hard Seat Three Valve Manifold
PGI International

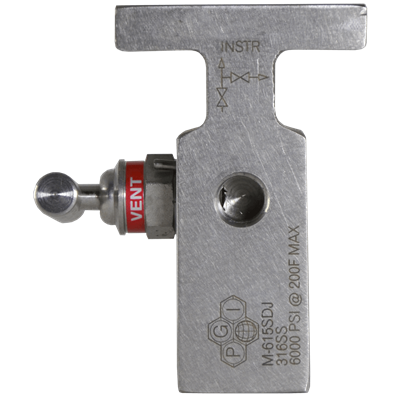

M-615 Two-Valve Manifold
