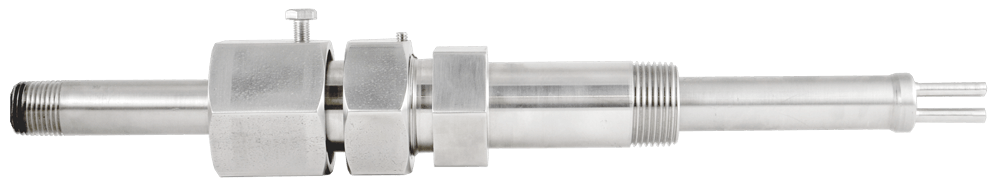

Kayden CLASSIC® 816 Spare Sensor, Retractable Threaded Packing Gland, P32 Series

Brand: Kayden Instruments
  • Replacement Sensor for Kayden CLASSIC 816 Series
  • Process Connections
    • 1" Male NPT
  • Insertion 'U' Length
    • Available in 1/2" or 1 cm increments
    • Min. 2.5" - Max. 120" (6.0 - 305 cm)
  • Adjustable Set Point Range
    • 0-254 feet/s, 0-77 meters/s
  • Pressure Rating
    • Low Pressure; 50 psi
    • Low Pressure with Security Chain; 125 psi
    • Medium Pressure; 500 psi
  • Temperature Range (Sensor)
    • -45° to 200° C, -50° to 392° F
  • Wetted Materials
    • 316/316L Stainless Steel
    • Other Exotic Metals Available
  • Sensor Connection
    • Molex 8-Pin
  • Approvals (with 816 Switch)
    • UL, FM, CSA, Single Seal, NACE
show more
Images are representations only.
  • Replacement Sensor for Kayden CLASSIC 816 Series
  • Process Connections
    • 1" Male NPT
  • Insertion 'U' Length
    • Available in 1/2" or 1 cm increments
    • Min. 2.5" - Max. 120" (6.0 - 305 cm)
  • Adjustable Set Point Range
    • 0-254 feet/s, 0-77 meters/s
  • Pressure Rating
    • Low Pressure; 50 psi
    • Low Pressure with Security Chain; 125 psi
    • Medium Pressure; 500 psi
  • Temperature Range (Sensor)
    • -45° to 200° C, -50° to 392° F
  • Wetted Materials
    • 316/316L Stainless Steel
    • Other Exotic Metals Available
  • Sensor Connection
    • Molex 8-Pin
  • Approvals (with 816 Switch)
    • UL, FM, CSA, Single Seal, NACE
46 models matching criteria
P32-RAET-I0040-M
KAYDEN® CLASSIC® 816 Series Thermal Flow, Level, Interface Sensor, Retractable Packing Gland, 1" NPT, 4"U Length, 316 SST Sensor
In Stock 2 - 4 weeks
$1,253.00USD
$9.99 Shipping
P32-RAET0060
KAYDEN® CLASSIC® 816 Series Thermal Flow, Level, Interface Sensor, Retractable Packing Gland, 1" NPT, 6"U Length, 316 SST Sensor
In Stock 3 - 5 days
$1,410.00USD
$9.99 Shipping
P32-RAET-I0100-M
KAYDEN® CLASSIC® 816 Series Thermal Flow, Level, Interface Sensor, Retractable Packing Gland, 1" NPT, 10"U Length, 316 SST Sensor
In Stock 2 - 4 weeks
$1,463.00USD
$9.99 Shipping
P32-RAET-I0115-M
KAYDEN® CLASSIC® 816 Series Thermal Flow, Level, Interface Sensor, Retractable Packing Gland, 1" NPT, 11.5"U Length, 316 SST Sensor
In Stock 2 - 4 weeks
$1,515.00USD
$9.99 Shipping
P32-RAET-I0120-M
KAYDEN® CLASSIC® 816 Series Thermal Flow, Level, Interface Sensor, Retractable Packing Gland, 1" NPT, 12"U Length, 316 SST Sensor
In Stock 2 - 4 weeks
$1,533.00USD
$9.99 Shipping
P32-RAET0120
KAYDEN® CLASSIC® 816 Series Thermal Flow, Level, Interface Sensor, Retractable Packing Gland, 1" NPT, 12"U Length, 316 SST Sensor
In Stock 3 - 5 days
$1,620.00USD
$9.99 Shipping
P32-RAET-I0160-M
KAYDEN® CLASSIC® 816 Series Thermal Flow, Level, Interface Sensor, Retractable Packing Gland, 1" NPT, 16"U Length, 316 SST Sensor
In Stock 2 - 4 weeks
$1,673.00USD
$9.99 Shipping
P32-RAEJ-I0060-M
KAYDEN® CLASSIC® 816 Series Thermal Flow, Level, Interface Sensor, Retractable Packing Gland, 1" NPT, 6"U Length, 316 SST Sensor
In Stock 2 - 4 weeks
$1,723.00USD
$9.99 Shipping
P32-RAET-I0180-M
KAYDEN® CLASSIC® 816 Series Thermal Flow, Level, Interface Sensor, Retractable Packing Gland, 1" NPT, 18"U Length, 316 SST Sensor
In Stock 2 - 4 weeks
$1,743.00USD
$9.99 Shipping
P32-RAEJ-I0100-M
KAYDEN® CLASSIC® 816 Series Thermal Flow, Level, Interface Sensor, Retractable Packing Gland, 1" NPT, 10"U Length, 316 SST Sensor
In Stock 2 - 4 weeks
$1,863.00USD
$9.99 Shipping
P32-RAEX-0060-M
KAYDEN® CLASSIC® 816 Series Thermal Flow, Level, Interface Sensor, Retractable Packing Gland, 1" NPT, 6"U Length, 316 SST Sensor
In Stock 2 - 4 weeks
$1,913.00USD
$9.99 Shipping
P32-RAEX-0120-M
KAYDEN® CLASSIC® 816 Series Thermal Flow, Level, Interface Sensor, Retractable Packing Gland, 1" NPT, 12"U Length, 316 SST Sensor
In Stock 2 - 4 weeks
$1,913.00USD
$9.99 Shipping
P32-RAEJ-I0120-M
KAYDEN® CLASSIC® 816 Series Thermal Flow, Level, Interface Sensor, Retractable Packing Gland, 1" NPT, 12"U Length, 316 SST Sensor
In Stock 2 - 4 weeks
$1,933.00USD
$9.99 Shipping
P32-RAET-I0240-M
KAYDEN® CLASSIC® 816 Series Thermal Flow, Level, Interface Sensor, Retractable Packing Gland, 1" NPT, 24"U Length, 316 SST Sensor
In Stock 2 - 4 weeks
$1,953.00USD
$9.99 Shipping
P32-RAEJ-I0140-M
KAYDEN® CLASSIC® 816 Series Thermal Flow, Level, Interface Sensor, Retractable Packing Gland, 1" NPT, 14"U Length, 316 SST Sensor
In Stock 2 - 4 weeks
$2,003.00USD
$9.99 Shipping
P32-RAET-I0260-M
KAYDEN® CLASSIC® 816 Series Thermal Flow, Level, Interface Sensor, Retractable Packing Gland, 1" NPT, 26"U Length, 316 SST Sensor
In Stock 2 - 4 weeks
$2,023.00USD
$9.99 Shipping
P32-RAEJ-I0180-M
KAYDEN® CLASSIC® 816 Series Thermal Flow, Level, Interface Sensor, Retractable Packing Gland, 1" NPT, 18"U Length, 316 SST Sensor
In Stock 2 - 4 weeks
$2,143.00USD
$9.99 Shipping
P32-RAET-I0300-M
KAYDEN® CLASSIC® 816 Series Thermal Flow, Level, Interface Sensor, Retractable Packing Gland, 1" NPT, 30"U Length, 316 SST Sensor
In Stock 2 - 4 weeks
$2,163.00USD
$9.99 Shipping
P32-RAEJ-I0240-M
KAYDEN® CLASSIC® 816 Series Thermal Flow, Level, Interface Sensor, Retractable Packing Gland, 1" NPT, 24"U Length, 316 SST Sensor
In Stock 2 - 4 weeks
$2,353.00USD
$9.99 Shipping
P32-RAET0360
KAYDEN® CLASSIC® 816 Series Thermal Flow, Level, Interface Sensor, Retractable Packing Gland, 1" NPT, 36"U Length, 316 SST Sensor
In Stock 3 - 5 days
$2,460.00USD
$9.99 Shipping
P32-RAEX-0160-M
KAYDEN® CLASSIC® 816 Series Thermal Flow, Level, Interface Sensor, Retractable Packing Gland, 1" NPT, 16"U Length, 316 SST Sensor
In Stock 2 - 4 weeks
$2,560.00USD
$9.99 Shipping
P32-RAET-I0420-M
KAYDEN® CLASSIC® 816 Series Thermal Flow, Level, Interface Sensor, Retractable Packing Gland, 1" NPT, 42"U Length, 316 SST Sensor
In Stock 2 - 4 weeks
$2,583.00USD
$9.99 Shipping
P32-RAEX-0180-M
KAYDEN® CLASSIC® 816 Series Thermal Flow, Level, Interface Sensor, Retractable Packing Gland, 1" NPT, 18"U Length, 316 SST Sensor
In Stock 2 - 4 weeks
$2,630.00USD
$9.99 Shipping
P32-RAEJ-I0360-M
KAYDEN® CLASSIC® 816 Series Thermal Flow, Level, Interface Sensor, Retractable Packing Gland, 1" NPT, 36"U Length, 316 SST Sensor
In Stock 2 - 4 weeks
$2,773.00USD
$9.99 Shipping
P32-RAET-I0480-M
KAYDEN® CLASSIC® 816 Series Thermal Flow, Level, Interface Sensor, Retractable Packing Gland, 1" NPT, 48"U Length, 316 SST Sensor
In Stock 2 - 4 weeks
$2,793.00USD
$9.99 Shipping

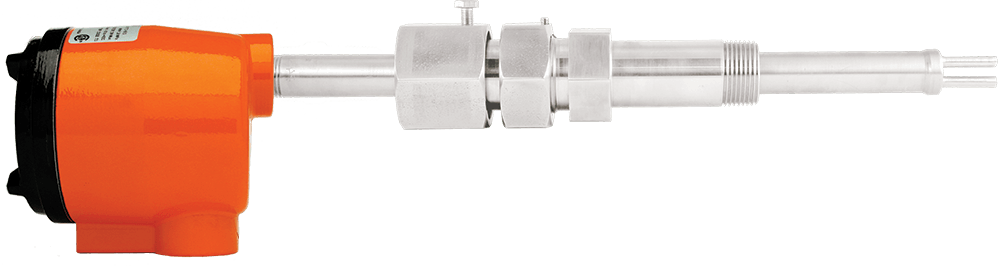

P32 CLASSIC® 816 Series Sensor

Sensor Material

Process Connection - Male NPT

Pressure Rating - Retractable Packing Gland

Insertion 'U' Length

Sensor Connection Type

Specifications

Approvals & Certifications

  • CRN - Canadian Registration Number - the Kayden Classic P32 Sensor (816 Series) Does Not have A CRN Number

Flange Material

  • 316, 316L Stainless Steel

Insertion 'U' Length

  • Custom 'U' Lengths 2.5" to 120" (6.4 cm to 305 cm) Available in 1/2" (1.0 cm) Increments.

NPT Connection

  • 1" NPT Male

Operating Pressure - Sensor

  • Threaded Style: Maximum

Operating Temperature - Sensor

  • -45° to 200° C (-50° to 392° F)

Process Connection Style

  • Threaded Retractable

Response Time

  • Approximately 0.5 to 30 seconds

Retraction Assembly

  • Low Pressure with Security Chain, 316, 316L Stainless Steel (MWP 125 psi)
  • Low Pressure, 316, 316L Stainless Steel (MWP 50 psi)
  • Medium Pressure, 316, 316L Stainless Steel (MWP 500 psi)

Sensor, Probe Connection Type

  • Molex 8-Pin

Sensor, Probe Style

  • Insertion

Wetted Materials

  • 316, 316L Stainless Steel
  • Other Metals Available
