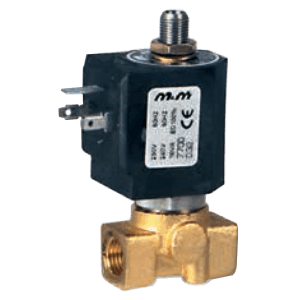

D362-363, RD362-RD363 3/2-Way Solenoid Valve

Brand: M&M International - by Rotork
  • Media: Water, Oil, Air
  • Media Temperature: -10° to 130° C (14° to 266° F)
  • Ambient temperature: -10° to 50° C (14° to 122° F)
  • Body Material: Brass (CW617N EN 12165)
  • Orifice Material: Stainless Steel (1.4305 EN 10088/AISI 303)
  • Operator Material: Stainless Steel
  • Seal Material: Food grade FKM
  • Protection Class: IP 65 (With Connector and Gasket)
show more
  • Media: Water, Oil, Air
  • Media Temperature: -10° to 130° C (14° to 266° F)
  • Ambient temperature: -10° to 50° C (14° to 122° F)
  • Body Material: Brass (CW617N EN 12165)
  • Orifice Material: Stainless Steel (1.4305 EN 10088/AISI 303)
  • Operator Material: Stainless Steel
  • Seal Material: Food grade FKM
  • Protection Class: IP 65 (With Connector and Gasket)

Specifications

Approvals & Certifications

  • ATEX
  • UL Approved Coils

BSP Connection

  • G 1/4” Female - Model D363, RD363
  • G 1/8” Female - Model D362, RD362

Enclosure, Body Material

  • Brass (CW617N EN 12165)

Environmental Protection

  • IP65 (with Connector & Gasket)

Seat / Seal Material

  • Seal: EPDM, Max.
  • Seal: Food Grade FKM
