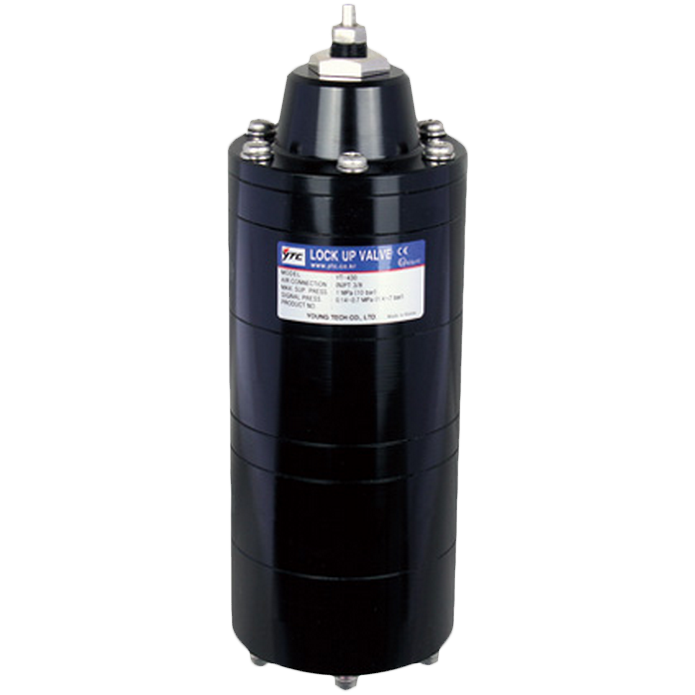

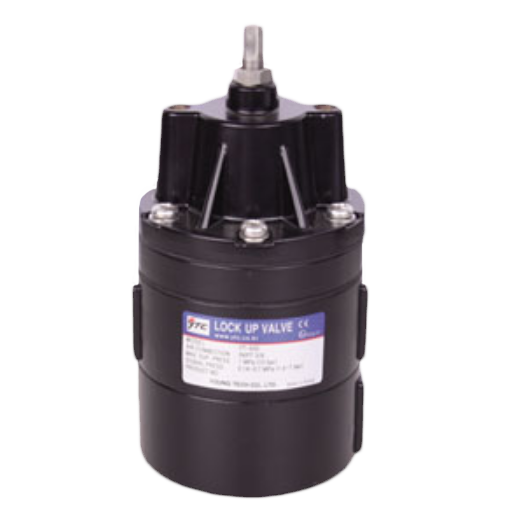

YT-430 Lock Up Valve

Brand: Rotork YTC
Request Information
The YT-430 Lock-Up Valve senses the main supply pressure and shuts down the air flow when the pressure is lower than the set level to avoid system shutdown or damage to pipelines.
Features
  • Due to its compact size and light weight, a lock-up valve can be installed without a bracket.
  • It responds to less than 0.1 kgf/㎠ pressure change.
  • Epoxy power coating resists corrosion.
  • A 100-mesh screen filters small dust entering the unit.
show more
The YT-430 Lock-Up Valve senses the main supply pressure and shuts down the air flow when the pressure is lower than the set level to avoid system shutdown or damage to pipelines.
Features
  • Due to its compact size and light weight, a lock-up valve can be installed without a bracket.
  • It responds to less than 0.1 kgf/㎠ pressure change.
  • Epoxy power coating resists corrosion.
  • A 100-mesh screen filters small dust entering the unit.
Close
Close

Specifications

Brand

Ambient Temperature Range

  • -20° to 70° C (-4° to 158° F)

Approvals & Certifications

  • CE

Enclosure, Body Material

  • Die Cast Aluminum

Flow Capacity

  • 1.8 Cv

Lock-Up Pressure

  • psig: 101.5 (bar: 7, MPa: 0.7)

NPT Connection

  • 3/8” NPT Female

Pressure Range

  • bar: 1.4 to 7
  • kPa: 140 to 700
  • psig: 20 to 100

Supply Pressure - Maximum

  • bar: 10
  • MPa: 1
  • psi: 145
