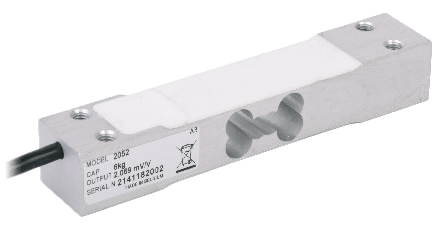

2052 Single Point Load Cell "Off Center"

Brand: Sensy S.A.
Small sized single point load cell.
Features
  • Designed for off-center load
  • Maximum platform size: 250 x 250/400 x 400 mm (according to capacity)
  • Small sized
  • Material: anodized Aluminum alloy
  • Protection: IP 54
  • Easy to install
  • Available options (non exhaustive list) :
    • ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80° C Da
show more
Images are representations only.
Small sized single point load cell.
Features
  • Designed for off-center load
  • Maximum platform size: 250 x 250/400 x 400 mm (according to capacity)
  • Small sized
  • Material: anodized Aluminum alloy
  • Protection: IP 54
  • Easy to install
  • Available options (non exhaustive list) :
    • ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80° C Da

Specifications

Brand

Accuracy

  • 0.03% of Full Scale
  • 3,000 D Except Thermal Drifts

Applications

  • Batching System
  • Bench Scales
  • Hoppers

Approvals & Certifications

  • ATEX Intrinsic Safety Ex II 1 GD Ex Ia IIC T6 or T4 Ga Ex Ia IIIC T80° C Da
  • CE

Cable Length

  • 1.64 feet (0.5 Meter)
  • 5 feet (1.5 meters)

Capacity

  • 3 to 200 kg

Enclosure, Body Material

  • Aluminum - Anodized

Environmental Protection

  • IP54
  • IP63

Insulation Resistance

  • > 5,000 MegaOhms

Linearity

  • Error: <± 0.025% of Full Scale

Load Limit

  • 150% of Full Scale

Repeatability

  • Repeatability Error: <± 0.015% of Full Scale

Resistance

  • Input/Output: 352 ± 2 ohms

Sensitivity

  • Sensitivity Tolerance: <± 0.2%

Service Temperature

  • -30 to 70° C (-22° to 158° F)

Storage Temperature

  • -50 to 85° C (-58° to 185° F)

Temperature Coefficient

  • <± 0.015% of Full Scale/10° C (18° F)
  • <± 0.023% of Full Scale/10° C (18° F)
  • <± 0.05% of Full Scale/10° C (18° F)
  • <± 0.1% of Full Scale/10° C (18° F)

Zero Balance

  • ± 0.02 mV/V
