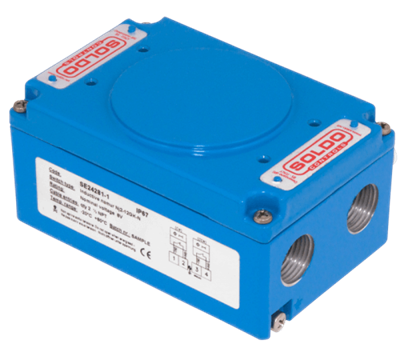

SP-SM Limit Switch Box Series

Brand: Soldo Controls
Compact limit switch box, designed not only for the industrial market, but for indoor applications in hazardous areas.

Available in nickel plated aluminum, with flat lid or 3D indicator.

The SP and SM are a corrosion resistant devices, able to satisfy the requirements in water treatment and desalination plants; both SP and SM match the Ex ia IIC T6 standards with the integral intrinsically safe certification, covering both the enclosure and electrical components inside.

With these devices we provide a ready to mount solution, thanks to the integrated Namur mounting kit.
Features
  • Integrated Mounting Kit for NAMUR PAttern
  • Corrosion Free Glass Reinforced Plastic Enclosure on SP Series
  • Nickel Plated Aluminium Body on SM Series
  • 1 Cable Entry (SP) or 2 Cable Entries (SM) either Metric or Imperial
  • Multiple Indicator Options
  • Easy Wiring through the Terminal PCB Boadr
show more
Images are representations only.
Compact limit switch box, designed not only for the industrial market, but for indoor applications in hazardous areas.

Available in nickel plated aluminum, with flat lid or 3D indicator.

The SP and SM are a corrosion resistant devices, able to satisfy the requirements in water treatment and desalination plants; both SP and SM match the Ex ia IIC T6 standards with the integral intrinsically safe certification, covering both the enclosure and electrical components inside.

With these devices we provide a ready to mount solution, thanks to the integrated Namur mounting kit.
Features
  • Integrated Mounting Kit for NAMUR PAttern
  • Corrosion Free Glass Reinforced Plastic Enclosure on SP Series
  • Nickel Plated Aluminium Body on SM Series
  • 1 Cable Entry (SP) or 2 Cable Entries (SM) either Metric or Imperial
  • Multiple Indicator Options
  • Easy Wiring through the Terminal PCB Boadr

SP-SM

Box

Switch Type

  • view details
  • view details
  • view details
  • view details
  • view details
  • view details

Switch Quantity

Terminals

Coating

Cable Entry

Visual Position Indicator

Approval Class

  • view details

Marking

IP Protection Rating

Temperature Range

Material

Specifications

Approvals & Certifications

  • ATEX
  • CCOE
  • CE
  • EAC
  • SIL 2

Cable Entry

  • 1/2" NPT
  • M20 x 1.5

Cover Material

  • Polycarbonate

Electrical Rating

  • 0.1 A @ 120 Vac Resistive
  • 1 A @ 125 Vac, 1 A @ 30 Vdc, Resistive/Inductive/capacitive
  • 2-Wire, 5 to 200 mA, 20 to 140 Volts (AC or DC)
  • 3-Wire, PNP, 5 to 100 mA @ 30 Vdc, Amplified
  • 5 A @ 25- Vac, 5 A @ 28 Vdc Resistive/Inductive
  • 5 A @ 250 Vac, 0.5 A @ 24 Vdc, Resistive/Inductive
  • 5 A @ 250 Vac, 1/4 hp @ 125 Vac, Resistive/Inductive

Enclosure, Body Material

  • Aluminum
  • Glass Reinforced Plastic

Environmental Protection

  • IP65
  • IP66
  • NEMA 4
  • NEMA 4X

Indication

  • 3D Indicator
  • Flat Indicator

Output

  • 0 to 100 mA
  • 10-30 Vdc

Supply Voltage

  • 8 Vdc

Switch Type

  • 2 DPDT Electromech with Silver Plated Contacts
  • 2 Inductive Proximity NAMUR Sensor NJ2-V3-N 2-Wire NC Logic (for Exia Cert) or NBB2-V3-E2, 3-Wire PNP NO Switch
  • 2 SPDT Electromech, AS-Interface or Proximity Switch with Silver or Gold-Plated Contacts or Hermetically Sealed with Silver Oxide or Gold Bifurcated

Temperature

  • -20 to +80 °C (+4 to +176 °F) Standard Temperature Range

ATEX, EAC, CCOE

  • EX II 2GD  Ex ia IIC T4/T5/T6
  • Ex ia IIIB T44 °C........T108 °C Db IP6*
  • Ta: -20 ° ≤ TA ≤ 80 °C
