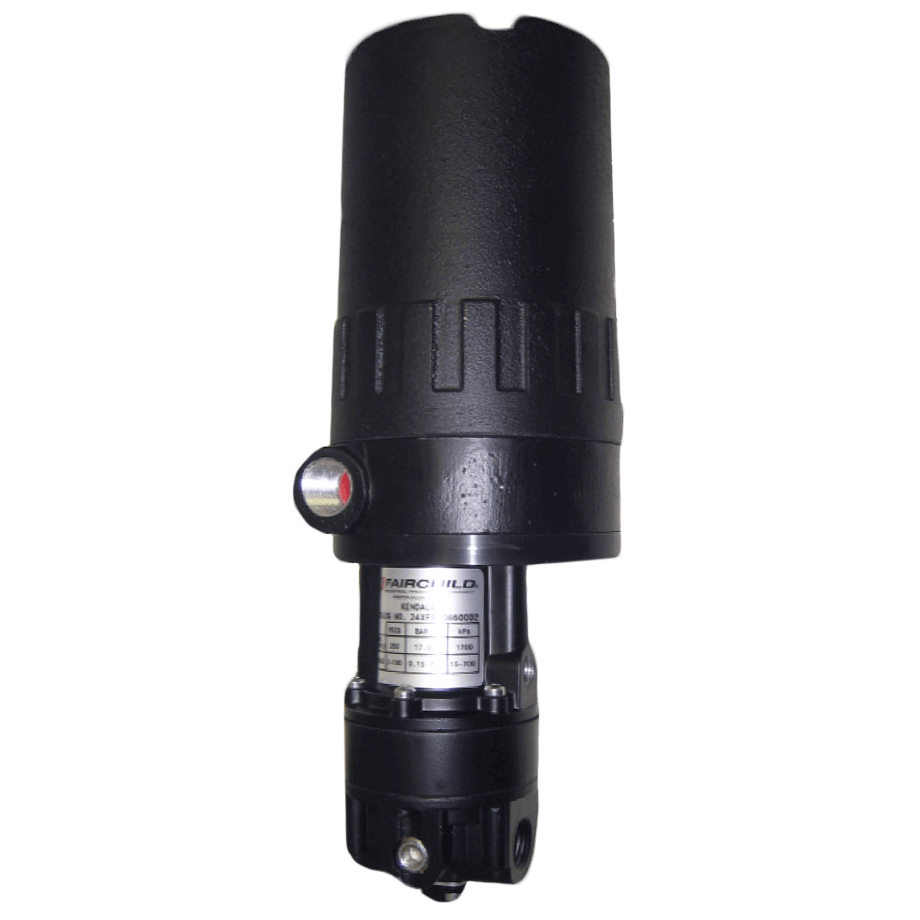

Model 24XFM High Pressure Motorized Regulator

Brand: Fairchild Industrial Products
The Rotork Fairchild 24XFM M/P Converter is a Motor Driven Pneumatic Regulator with motor assembly enclosed in a explosion proof housing. The motor is coupled to a no-bleed Model 10 pneumatic regulator assembly to provide the desired operating pressure range for any application.

The 24XFM requires a 12-24 VDC power supply and has the option of DC Pulse or DC Analog input. The Fairchild 24XFM motorized regulator line will handle a 500 psi, 35 BAR maximum supply pressure and offers four (4) different set point pressure ranges from 0-30 psig [0-2 bar], to 0-150 psig [0-10 bar].
Features
  • Output pressure locks in last position in event of power failure or signal loss.
  • Stepper Motor equipped configuration
  • Standard explosion-proof NEMA 4X housing
  • End of travel limit switches
show more
The Rotork Fairchild 24XFM M/P Converter is a Motor Driven Pneumatic Regulator with motor assembly enclosed in a explosion proof housing. The motor is coupled to a no-bleed Model 10 pneumatic regulator assembly to provide the desired operating pressure range for any application.

The 24XFM requires a 12-24 VDC power supply and has the option of DC Pulse or DC Analog input. The Fairchild 24XFM motorized regulator line will handle a 500 psi, 35 BAR maximum supply pressure and offers four (4) different set point pressure ranges from 0-30 psig [0-2 bar], to 0-150 psig [0-10 bar].
Features
  • Output pressure locks in last position in event of power failure or signal loss.
  • Stepper Motor equipped configuration
  • Standard explosion-proof NEMA 4X housing
  • End of travel limit switches

Specifications

Approvals & Certifications

  • CRN
  • FM Approved for Class I, Division 1, Groups B, C, D Gases

BSP Connection

  • 1/2" BSPP Female
  • 1/2" BSPT Female
  • 1/4" BSPP Female
  • 1/4" BSPT Female
  • 3/8" BSPP Female
  • 3/8" BSPT Female

Consumption

  • 0.041666666667

Enclosure, Body Material

  • Aluminum Housing

Flow Capacity

  • 60 scfm (102 m³/hour) at psig: 100 (kPa: 700, bar: 7) Supply

NPT Connection

  • 1/2" NPT Female
  • 1/4" NPT Female
  • 3/8" NPT Female

Power Options

  • DC Pulse / Analog

Power Requirement

  • 12-24 Vdc

Pressure Range

  • bar: 0 to 10
  • kPa: 0 to 1,000
  • psi: 0 to 150

Supply Pressure - Maximum

  • bar: 35
  • kPa: 3,447
  • psi: 500

Trim Material

  • Stainless Steel
