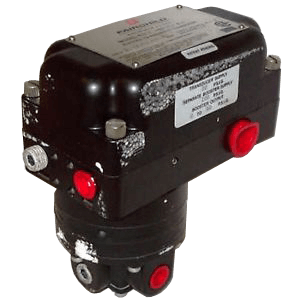

Model T5220 Electro-Pneumatic I/P, E/P Transducer

Brand: Fairchild Industrial Products
Request a Quote
Favorite
As a Fast Response High Flow I/P, E/P Transducer, the Rotork Fairchild T5220 has all the performance you want in a voice coil I/P transducer product, but it also includes a built in booster section to deliver high flow capacity, up to 45 SCFM (76.5 m3/Hr) with six available rations to allow pressure multiplication to the output. This feature, along with the adjustable positive and negative bias allows you to custom design your control system for exactly the desired performance.

The Signal Conversion Section (PC Board) accepts a DC current or voltage. This signal is applied to a coil which creates a magnetic force that moves a Flexure Arm.

The Pneumatic Section operates as a force balance system. A Sapphire Ball floats inside a Nozzle and controls the output pressure by exhausting air supplied through an Orifice. This Sapphire Ball acts as a piston exerting a force which is balanced against the force transferred to the Flexure Arm by the Coil.

The Booster Section amplifies the output pressure of the transducer.
Features
  • Fast Response to Input Signal changes results in faster loop control and savings in process materials
  • Integrated Volume Booster output meets input requirements of final control elements requiring a higher capacity output signal and/or increased output pressure
  • Six Input Signal Ranges meet most process and machine requirements
  • Negative Bias Option allows zero pressure based operation
  • Five Booster Ratios meet industrial equipment requirements for higher output pressure ranges
  • Temperature Compensation provides stable operation under environmental changes
  • Vibration Resistance maintains set points under adverse vibration conditions
  • Various Mounting Configurations allow installation flexibility for most applications
  • NEMA 3R or optional NEMA 4X enclosure for outdoor and indoor installations
  • Conduit Port for convenient wiring
show more
Images are representations only.
As a Fast Response High Flow I/P, E/P Transducer, the Rotork Fairchild T5220 has all the performance you want in a voice coil I/P transducer product, but it also includes a built in booster section to deliver high flow capacity, up to 45 SCFM (76.5 m3/Hr) with six available rations to allow pressure multiplication to the output. This feature, along with the adjustable positive and negative bias allows you to custom design your control system for exactly the desired performance.

The Signal Conversion Section (PC Board) accepts a DC current or voltage. This signal is applied to a coil which creates a magnetic force that moves a Flexure Arm.

The Pneumatic Section operates as a force balance system. A Sapphire Ball floats inside a Nozzle and controls the output pressure by exhausting air supplied through an Orifice. This Sapphire Ball acts as a piston exerting a force which is balanced against the force transferred to the Flexure Arm by the Coil.

The Booster Section amplifies the output pressure of the transducer.
Features
  • Fast Response to Input Signal changes results in faster loop control and savings in process materials
  • Integrated Volume Booster output meets input requirements of final control elements requiring a higher capacity output signal and/or increased output pressure
  • Six Input Signal Ranges meet most process and machine requirements
  • Negative Bias Option allows zero pressure based operation
  • Five Booster Ratios meet industrial equipment requirements for higher output pressure ranges
  • Temperature Compensation provides stable operation under environmental changes
  • Vibration Resistance maintains set points under adverse vibration conditions
  • Various Mounting Configurations allow installation flexibility for most applications
  • NEMA 3R or optional NEMA 4X enclosure for outdoor and indoor installations
  • Conduit Port for convenient wiring
Close

Model T5220

Underwriting Group

Approval Class

Intrinsic Approval

Options

Ratio

Input

Output Pressure Units

Exhaust Port

View Details

Model T5220

Out of Stock
Close

Specifications

Brand

Air Consumption

  • 0.28 scfm (0.48 m³/hour), Maximum

Ambient Temperature Range

  • -40° to 65.5° C (-40° to 150° F)

Approvals & Certifications

  • CE
  • FM

Ball Material

  • Brass, Sapphire
  • Sapphire

Enclosure, Body Material

  • Aluminum

Environmental Protection

  • IP65
  • NEMA 3R
  • NEMA 4X

Exhaust Capacity - Relieving Units Only

  • 14 scfm (23.8 m³/hour)
  • 7 scfm (11.9 m³/hour)

Exhaust Port

  • Tapped Exhaust

Flow Capacity

  • 15 scfm (25.5 m³/hour), Maximum
  • 45 scfm (76.5 m³/hour) at psig: 100 (kPa: 700, bar: 7)

Hysteresis

  • within 0.1% of Full Scale

Independent Linearity

  • Within 0.25% of Full Scale

Input Signal

  • 0 to 12 Vdc, 2550² ohms
  • 0 to 6 Vdc, 375² ohms
  • 1 to 5 Vdc, 375 ohms
  • 1 to 9 Vdc, 2550 ohms
  • 10 to 50 mA, 50 ohms
  • 4-20 mA, 120 ohms

Mounting

  • Bracket Kit

NPT Connection

  • 1/2" NPT Female
  • 1/4" NPT Female

Orifice Material

  • Brass
  • Sapphire

Pressure Range

  • bar: 0.2 to 6
  • kPa: 20 to 600
  • psig: 3 to 90

Pressure Type

  • Gauge

Ratio

  • 0.042361111111
  • 0.043055555556
  • 0.04375
  • 0.044444444444
  • 0.045138888889
  • 0.045833333333

Repeatability

  • < 0.1% of Full Scale

Supply Pressure

  • psig: 20 + 2, (kPa: 150 + 15, bar: 1.5 + 0.15)

Supply Pressure Effect

  • + 0.3% of Span for a psig: 1 (bar: 0.07, kPa: 7) Supply Change between psig: 18 to 22 (bar: 1.2 to 14.5, kPa: 120 to 145)

Temperature Effect

  • < 1% of Span/10° C (50° F)

Vibration Effect

  • Negligible up to 2 G's between 5 Hz & 200 Hz
Close

Review this product and let us know your experiences

Write a Review
Close

Similar Products

Model T5200 Fast Response I/P, E/P Pressure Transducer
Model T5200 Fast Response I/P, E/P Pressure Transducer
Fairchild Industrial Products
Model T5221 Adjustable Ratio E/P, I/P Pressure Transducer
Model T5221 Adjustable Ratio E/P, I/P Pressure Transducer
Fairchild Industrial Products
Model T5700 High Flow E/P, I/P Pressure Transducer
Model T5700 High Flow E/P, I/P Pressure Transducer
Fairchild Industrial Products
Model T6000 Electro-Pneumatic Pressure Transducer
Model T6000 Electro-Pneumatic Pressure Transducer
Fairchild Industrial Products
Model T7800 Electro-Pneumatic I/P, E/P Transducer
Model T7800 Electro-Pneumatic I/P, E/P Transducer
Fairchild Industrial Products
Model T6100 Lock in Place I/P Pressure Transducer
Model T6100 Lock in Place I/P Pressure Transducer
Fairchild Industrial Products

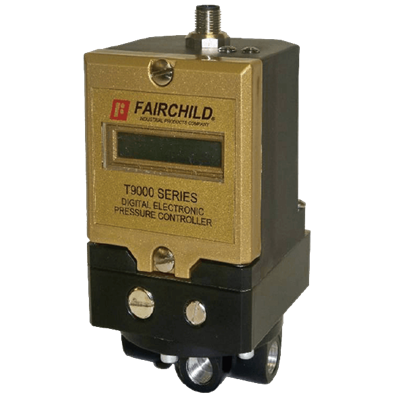

Model T9000 Electro-Pneumatic Pressure Controller
