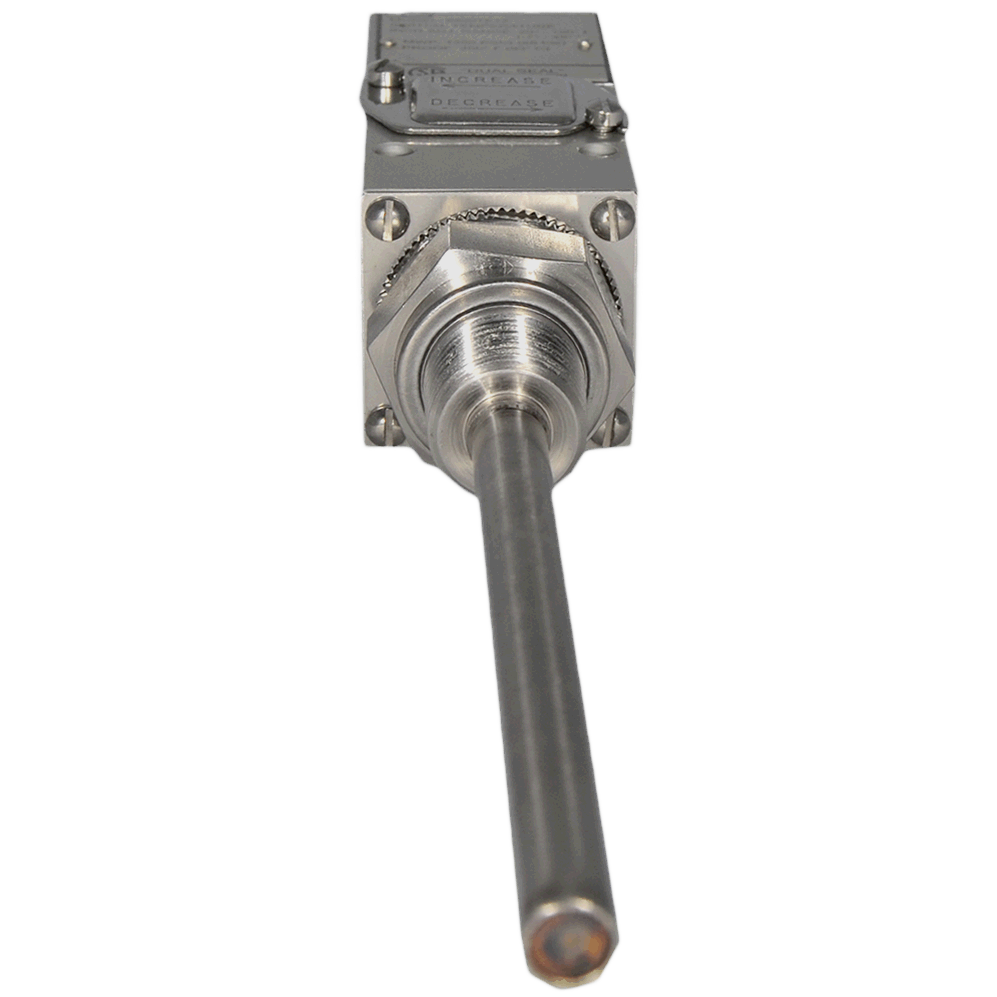

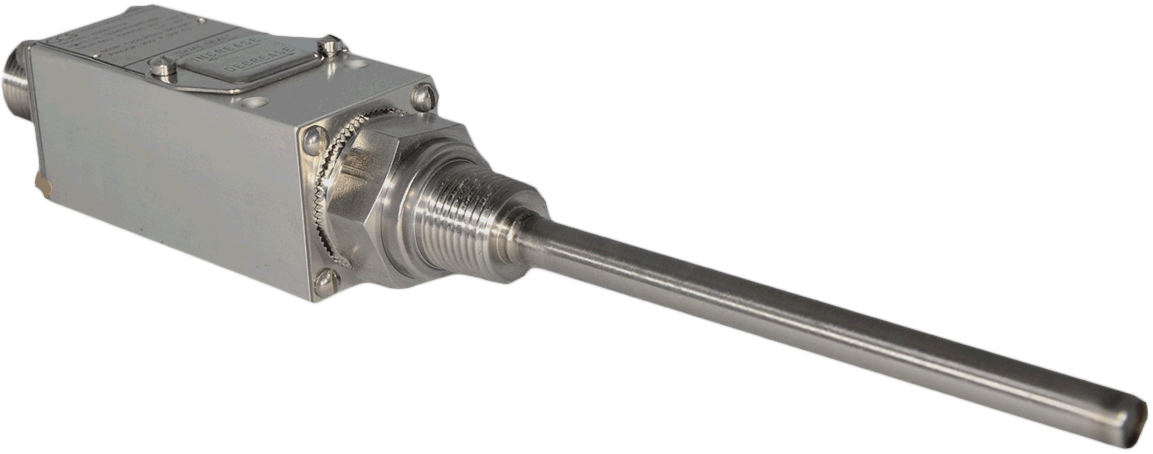

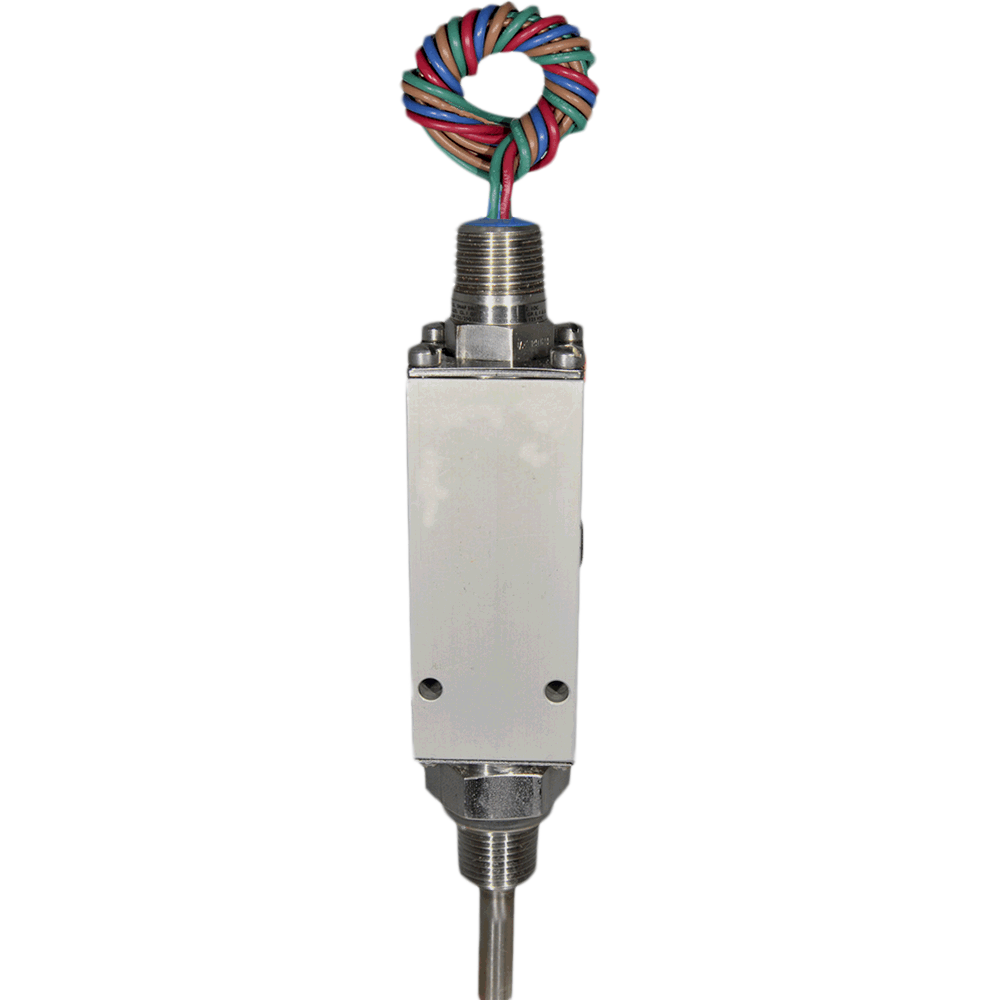

6900TE Series Temperature Switch

Brand: Custom Control Sensors
Features
  • Adjustable Set Point Range:
    • Increasing: +20°F to +405°F, -7°C to +207°C
    • Decreasing: +0°F to +398°F, -18°C to +203°C
  • Deadband: Approximately
    • At Bottom of Range: +20°F, +11°C
    • At Top of Range: +5°F, +4°C
  • Probe Temperature (Maximum): +200°F to +500°F, +93°C to +260°C
  • Wetted Materials:
    • Temperature Probe: 300 Stainless Steel
  • Relay: SPDT or DPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark, NACE, NEMA, Dual Seal, CRN
show more
Features
  • Adjustable Set Point Range:
    • Increasing: +20°F to +405°F, -7°C to +207°C
    • Decreasing: +0°F to +398°F, -18°C to +203°C
  • Deadband: Approximately
    • At Bottom of Range: +20°F, +11°C
    • At Top of Range: +5°F, +4°C
  • Probe Temperature (Maximum): +200°F to +500°F, +93°C to +260°C
  • Wetted Materials:
    • Temperature Probe: 300 Stainless Steel
  • Relay: SPDT or DPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark, NACE, NEMA, Dual Seal, CRN
23 models matching criteria

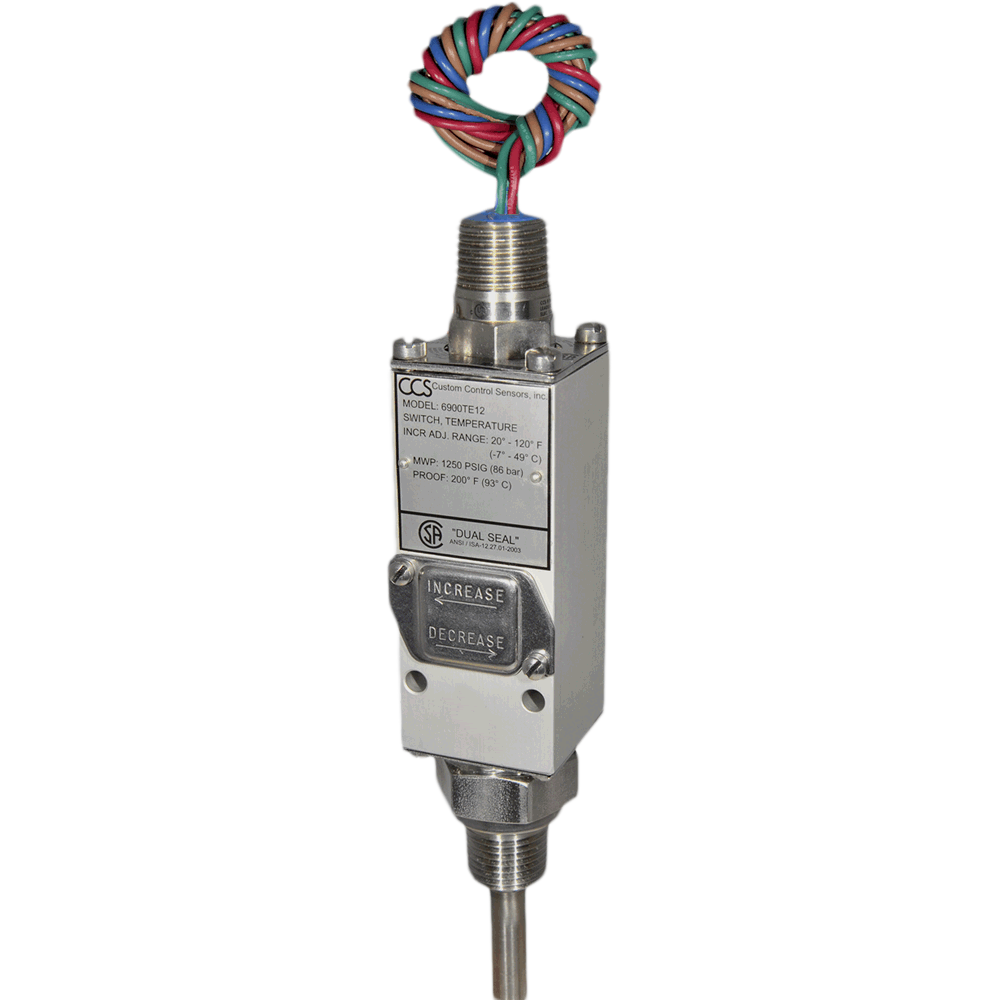

6900TE12
CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300 SST Direct Mt. View More
  • Adjustable Set Point Range:

    • Increasing: +20°F to +120°F, -7°C to +49°C
    • Decreasing: +0°F to +113°F, -18°C to +45°C
  • Deadband: Approximately
    • At Bottom of Range: 20°F, 11°C
    • At Top of Range: 5°F, 4°C
  • Probe Temperature (Maximum): +200°F, +93°C
  • Wetted Materials:
    • Temperature Probe: 300 Stainless Steel
  • Relay: SPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark, NACE, CRN
Available Add-Ons: Stainless Steel Tag
Contact For Inventory
6900TE14
CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300 SST Direct Mt. View More
  • Adjustable Set Point Range:

    • Increasing: +80°F to +205°F, +27°C to +96°C
    • Decreasing: +60°F to +198°F, +16°C to +92°C
    • Deadband: Approximately
      • At Bottom of Range: 20°F, 11°C
      • At Top of Range: 5°F, 4°C
    • Probe Temperature (Maximum): +300°F, +149°C
    • Wetted Materials:
      • Temperature Probe: 300 Stainless Steel
    • Relay: SPDT
    • UL, CSA
      • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
    • CE Mark, NACE, CRN
    Available Add-Ons: Stainless Steel Tag
    Contact For Inventory
    6900TE16
    CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300 SST Direct Mt. View More
    • Adjustable Set Point Range:

      • Increasing: +185°F to +315°F, +85°C to +157°C
      • Decreasing: +165°F to +308°F, +74°C to +153°C
      • Deadband: Approximately
        • At Bottom of Range: 20°F, 11°C
        • At Top of Range: 5°F, 4°C
      • Probe Temperature (Maximum): +400°F, +204°C
      • Wetted Materials:
        • Temperature Probe: 300 Stainless Steel
      • Relay: SPDT
      • UL, CSA
        • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
      • CE Mark, NACE, CRN
      Available Add-Ons: Stainless Steel Tag
      Contact For Inventory
      6900TEM14
      CCS DUAL-SNAP Temperature Switch, Hazardous Area, 1/2" NPT 300 SST Direct Mount, DPDT, Approvals: UL, CSA, CE, CCC, EAC, Dual Seal View More
      • Adjustable Set Point Range:

        • Increasing: +80°F to +205°F, +27°C to +96°C
        • Decreasing: +60°F to +198°F, +16°C to +92°C
        • Deadband: Approximately
          • At Bottom of Range: 20°F, 11°C
          • At Top of Range: 5°F, 4°C
        • Probe Temperature (Maximum): +300°F, +149°C
        • Wetted Materials:
          • Temperature Probe: 300 Stainless Steel
        • Relay: DPDT
        • UL, CSA
          • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
        • CE Mark, NACE, CRN
        Available Add-Ons: Stainless Steel Tag
        Contact For Inventory
        $1,266.70 USD
        Does not ship to US
        6900TE14-7042
        CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300 SST Direct Mt., SST Body View More
        • Adjustable Set Point Range:

          • Increasing: +80°F to +205°F, +27°C to +96°C
          • Decreasing: +60°F to +198°F, +16°C to +92°C
          • Deadband: Approximately
            • At Bottom of Range: 20°F, 11°C
            • At Top of Range: 5°F, 4°C
          • Probe Temperature (Maximum): +300°F, +149°C
          • Wetted Materials:
            • Temperature Probe: 300 Stainless Steel
          • Body: Stainless Steel
          • Relay: SPDT
          • UL, CSA
            • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
          • CE Mark, NACE
          Available Add-Ons: Stainless Steel Tag
          Contact For Inventory
          6900TE18
          CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300 SST Direct Mt. View More
          • Adjustable Set Point Range:

            • Increasing: +280°F to +405°F, +138°C to +207°C
            • Decreasing: +260°F to +398°F, +127°C to +203°C
            • Deadband: Approximately
              • At Bottom of Range: 20°F, 11°C
              • At Top of Range: 5°F, 4°C
            • Probe Temperature (Maximum): +500°F, +260°C
            • Wetted Materials:
              • Temperature Probe: 300 Stainless Steel
            • Relay: SPDT
            • UL, CSA
              • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
            • CE Mark, NACE, CRN
            Available Add-Ons: Stainless Steel Tag
            Contact For Inventory
            6900TEM12
            CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300 SST Direct Mt., DPDT View More
            • Adjustable Set Point Range:

              • Increasing: +20°F to +120°F, -7°C to +49°C
              • Decreasing: +0°F to +113°F, -18°C to +45°C
              • Deadband: Approximately
                • At Bottom of Range: 20°F, 11°C
                • At Top of Range: 5°F, 4°C
              • Probe Temperature (Maximum): +200°F, +93°C
              • Wetted Materials:
                • Temperature Probe: 300 Stainless Steel
              • Relay: DPDT
              • UL, CSA
                • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
              • CE Mark, NACE
              Available Add-Ons: Stainless Steel Tag
              Contact For Inventory
              6900TEM16
              CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300 SST Direct Mt., DPDT View More
              • Adjustable Set Point Range:

                • Increasing: +185°F to +315°F, +85°C to +157°C
                • Decreasing: +165°F to +308°F, +74°C to +153°C
                • Deadband: Approximately
                  • At Bottom of Range: 20°F, 11°C
                  • At Top of Range: 5°F, 4°C
                • Probe Temperature (Maximum): +400°F, +204°C
                • Wetted Materials:
                  • Temperature Probe: 300 Stainless Steel
                • Relay: DPDT
                • UL, CSA
                  • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
                • CE Mark, NACE, CRN
                Available Add-Ons: Stainless Steel Tag
                Contact For Inventory
                6900TE12-7042
                CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300 SST Direct Mt., SST Body View More
                • Adjustable Set Point Range:
                  • Increasing: +20°F to +120°F, -7°C to +49°C
                  • Decreasing: +0°F to +113°F, -18°C to +45°C
                • Deadband: Approximately
                  • At Bottom of Range: 20°F, 11°C
                  • At Top of Range: 5°F, 4°C
                • Probe Temperature (Maximum): +200°F, +93°C
                • Wetted Materials:
                  • Temperature Probe: 300 Stainless Steel
                • Relay: SPDT
                • Body: 300 Stainless Steel
                • UL, CSA
                  • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
                • CE Mark, NACE, CRN
                Available Add-Ons: Stainless Steel Tag
                Contact For Inventory
                6900TE14-7076
                CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300 SST Direct Mount, Teflon Leads View More
                • Adjustable Set Point Range:
                  • Increasing: +80°F to +205°F, +27°C to +96°C
                  • Decreasing: +60°F to +198°F, +16°C to +92°C
                  • Deadband: Approximately
                    • At Bottom of Range: 20°F, 11°C
                    • At Top of Range: 5°F, 4°C
                  • Probe Temperature (Maximum): +300°F, +149°C
                  • Wetted Materials:
                    • Temperature Probe: 300 Stainless Steel
                  • Wire: Teflon
                  • Relay: SPDT
                  • UL, CSA
                    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
                  • CE Mark, NACE
                  Available Add-Ons: Stainless Steel Tag
                  Contact For Inventory

                  Specifications

                  Adjustment Type

                  • Field Adjustable

                  Approvals & Certifications

                  • ATEX
                  • CE
                  • CRN
                  • CRN - Alberta
                  • CRN - British Columbia
                  • CRN - Manitoba
                  • CRN - N.W. Territories
                  • CRN - Saskatchewan
                  • CSA
                  • cUL
                  • Dual Seal
                  • IEC Ex
                  • LVD
                  • PED
                  • RoHS
                  • RTN
                  • UL

                  Conduit Connection

                  • M20 Explosion-proof

                  Deadband, Approximate - Bottom of Range

                  • 11° C (52° F)
                  • -7° C (20° F)

                  Deadband, Approximate - Top of Range

                  • -15° C (5° F)
                  • 4° C (39° F)

                  Electrical - Free Leads

                  • 18" (45 cm) Free Leads
                  • 18" (45 cm) Teflon Leadwire

                  Electrical Assembly

                  • 316 Stainless Steel
                  • Hermetic Seal

                  Electrical Connectors

                  • 1/2" NPT Male

                  Electrical Contacts

                  • Gold
                  • Silver

                  Electrical Enclosure Certification

                  • ATEX - SIRA Certified for Potentially Explosive Atmospheres. Models 6****Y, II 2 GD Ex D IIC, 08-ATEX-1046X. (Option Y)
                  • c-UL, UL/CSA Explosion-proof: Div. 1, 2 Hermetically Sealed Electrical Assembly P/N 46-1058 (46-1061 for M (DPDT) Model Option), Listed by Both Underwriter's Laboratories, Inc. (File No. E32961) & Canadian Standard Association (CSA) Testing Laboratories
                  • IECEx - SIRA Certified, SIR 10,0193X (Option Y)

                  Electrical Rating

                  • 1 A at 125 Vac, 50/60 Hz
                  • 11 A at 125/250 Vac

                  Enclosure, Body Material

                  • Aluminum
                  • Stainless Steel

                  Environmental Protection

                  • IP54
                  • IP66
                  • NEMA 13
                  • NEMA 4, 7, 9, 13 / IP54, 66
                  • NEMA 7
                  • NEMA 9

                  Maximum Sensor, Probe Temperature

                  • 93° to 260° C (200° to 500° F)

                  NACE & NIST

                  • NACE MR-0175:2003

                  NPT Connection

                  • 1/2" NPT Male

                  Operating Temperature

                  • -40° to 86° C (-40° to 187° F)

                  O-Ring Material

                  • None

                  Proof Pressure

                  • bar: 103.4
                  • kPa: 10,342
                  • psig: 1,500

                  Sensor, Probe Material

                  • 300 Stainless Steel

                  Set Point - Decreasing

                  • -18° to 203° C
                  • -18° to 203° C (0° to 397° F)

                  Set Point - Increasing

                  • -7° to 207° C
                  • -7° to 207° C (20° to 405° F)

                  Switch Type

                  • DPDT
                  • SPDT

                  System Pressure

                  • bar: 86
                  • kPa: 8,618
                  • psig: 1,250
