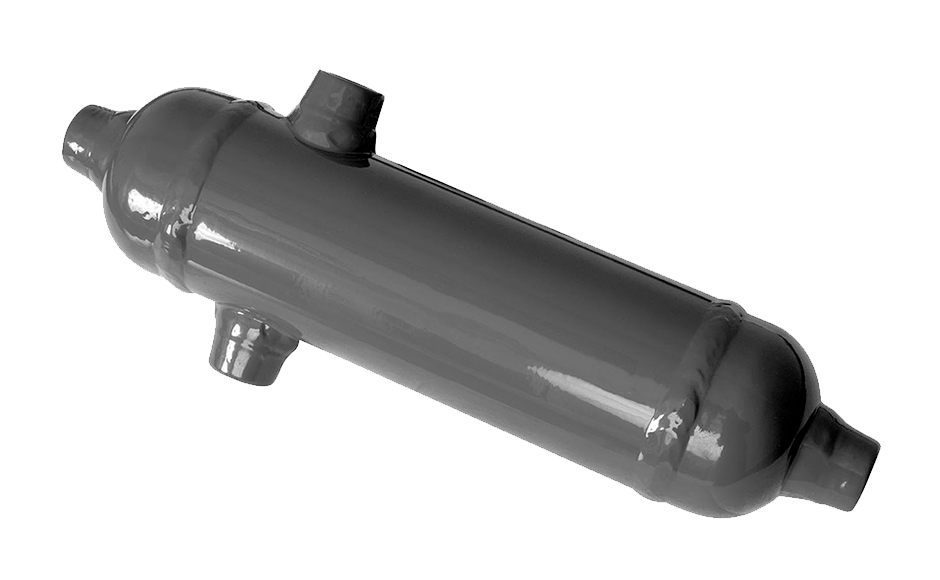

Seal Pot

Brand: Mac-Weld Machining Ltd.
Mac-Weld seal pots are used to provide a constant liquid head on each side of a flow meter involving steam or other condensable vapours. With a sealing liquid, they also isolate the instrument from the process. Mac-Weld seal pots are fabricated from A106 & 316 seamless stainless. Connections are 1/2" NPT, finished with solid steel plugs.
  • Material: Grade A/B Schedule 40 or 80 Pipe and 3000 lb. (1,361 kg) Threadolets
  • Test Pressure: 1600 psi Cold Hydrostatic Pressure
  • Working Pressure: 750 psi (5,171 kPa, 51.7 bar)
  • Temperature: 750° F (399° C)
  • Finish: Red or Grey Oxide Primer
All outlets plugged with Solid Steel Plugs.
show more
Images are representations only.
Mac-Weld seal pots are used to provide a constant liquid head on each side of a flow meter involving steam or other condensable vapours. With a sealing liquid, they also isolate the instrument from the process. Mac-Weld seal pots are fabricated from A106 & 316 seamless stainless. Connections are 1/2" NPT, finished with solid steel plugs.
  • Material: Grade A/B Schedule 40 or 80 Pipe and 3000 lb. (1,361 kg) Threadolets
  • Test Pressure: 1600 psi Cold Hydrostatic Pressure
  • Working Pressure: 750 psi (5,171 kPa, 51.7 bar)
  • Temperature: 750° F (399° C)
  • Finish: Red or Grey Oxide Primer
All outlets plugged with Solid Steel Plugs.

Seal Pot

Fitting and Filters

Pipe Schedule

Connection Size

Enclosure Material

Specifications

Enclosure Finish

  • Red or Grey Oxide Primer

NPT Connection

  • 1/2" NPT Female

Operating Temperature

  • -17° to 399° C (0° to 750° F)

Pipe Schedule

  • Schedule 40
  • Schedule 80

Pipe Size

  • 3" to 6"

System Pressure

  • bar: 51.71
  • kPa: 5,171
  • psi: 750
