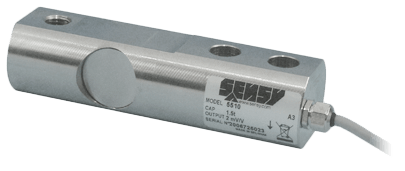

5510 Shear Beam Load Cell

Brand: Sensy S.A.
Universal load cell combining sturdy design, high accuracy and low cost.
Features
  • Stainless steel
  • Protection IP 67
  • Sturdy design
  • Complies with OIML / R60 up to 3000 d for scales in class III according to EN 45 501
  • Cable length: 8 m
  • Options:
    • ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80° C Da
    • Amplified output (V or mA) and digital output signal (RS-232C, RS-485, USB)
show more
Universal load cell combining sturdy design, high accuracy and low cost.
Features
  • Stainless steel
  • Protection IP 67
  • Sturdy design
  • Complies with OIML / R60 up to 3000 d for scales in class III according to EN 45 501
  • Cable length: 8 m
  • Options:
    • ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80° C Da
    • Amplified output (V or mA) and digital output signal (RS-232C, RS-485, USB)

Specifications

Brand

Accuracy

  • 0.03% of Full Scale
  • 1,000 D OIML
  • 3,000 D (A3 & C3 Model)

Applications

  • Batching System
  • Hoppers
  • Low Profile Scales
  • Packaging Equipment
  • Pallet
  • Platform Scales
  • Reactors
  • Tanks
  • Vessel

Approvals & Certifications

  • ATEX Intrinsic Safety Ex II 1 GD Ex Ia IIC T6 or T4 Ga Ex Ia IIIC T80° C Da
  • CE

Approvals & Certifications

  • OIML/R60 up to 3000 D for Scales in Class III According to EN 45 501

Cable Length

  • 26 feet (8 meters)

Communication

  • RS-232C, RS-485
  • USB

Enclosure, Body Material

  • Stainless Steel

Environmental Protection

  • IP67

Excitation Voltage

  • 10 Vdc
  • 3-12 Vdc - Nominal Range

Insulation Resistance

  • > 5,000 MegaOhms

Linearity

  • <± 0.02% to <± 0.03% of Full Scale

Load

  • Breaking Load: > 300% of Full Scale
  • Permissible Dynamic Loading: 50% of Full Scale

Load Limit

  • 150% of Full Scale

Repeatability

  • <± 0.01% to <± 0.02% of Full Scale

Resistance

  • Input/Output: 352 ± 2 ohms

Sensitivity

  • 2 mV/V
  • Sensitivity Tolerance: <± 0.1% to <± 0.3%

Service Temperature

  • -30 to 70° C (-22° to 158° F)

Static Lateral Force

  • 100% of Full Scale

Storage Temperature

  • -50 to 85° C (-58° to 185° F)

Temperature Coefficient

  • <± 0.009% to <± 0.1% of Full Scale/10° C (18° F)
  • <± 0.013% to <± 0.05% of Full Scale/10° C (18° F)

Zero Balance

  • ± 0.02 mV/V
