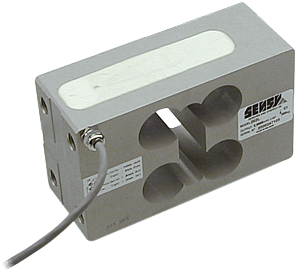

2022 Single Point Load Cell "Off Center"

Brand: Sensy S.A.
Single point load cell specially designed for the weighing of platforms and bunkers.
Features
  • Designed for off-center load
  • Maximum platform size: 800 x 800 cm
  • Material: anodized Aluminum alloy
  • Protection: IP 64
  • Easy to install
  • Complies with OIML/R60 up to 3000 d for scales in class III according to EN 45 501
  • Cable length: 3m
  • Available options (non exhaustive list)
    • ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80° C Da
    • High service temperature (150° C)
    • Protection cover (option F)
    • Reinforced protection against corrosion
show more
Single point load cell specially designed for the weighing of platforms and bunkers.
Features
  • Designed for off-center load
  • Maximum platform size: 800 x 800 cm
  • Material: anodized Aluminum alloy
  • Protection: IP 64
  • Easy to install
  • Complies with OIML/R60 up to 3000 d for scales in class III according to EN 45 501
  • Cable length: 3m
  • Available options (non exhaustive list)
    • ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80° C Da
    • High service temperature (150° C)
    • Protection cover (option F)
    • Reinforced protection against corrosion

Specifications

Brand

Accuracy

  • 0.03% of Full Scale
  • 0.1% of Full Scale
  • Class C3: 3,000 D OIML

Applications

  • Batching System
  • Industrial Scales & Platforms
  • Medium Hoppers
  • Packaging Equipment
  • Retail & Computing Scales

Approvals & Certifications

  • ATEX Intrinsic Safety Ex II 1 GD Ex Ia IIC T6 or T4 Ga Ex Ia IIIC T80° C Da
  • CE

Approvals & Certifications

  • OIML/R60 up to 3000 D for Scales in Class III According to EN 45 501

Cable Length

  • 10 feet (3 meters)

Enclosure, Body Material

  • Anodized Aluminum Alloy

Environmental Protection

  • IP64

Insulation Resistance

  • > 5,000 MegaOhms

Linearity

  • Linearity Error: <± 0.1% of Full Scale (Class 0.1) to <± 0.02% of Full Scale (Class C3)

Load Limit

  • 150% of Full Scale

Operating Temperature

  • Optional High Service Temperature: 150° C (302° F)

Platform Size

  • Maximum

Repeatability

  • Error: <± 0.03% of Full Scale (Class 0.1) to <± 0.01% of Full Scale (Class C3)

Resistance

  • 352 ± 2 ohms - Input & Output Resistance

Sensitivity

  • <± 0.3% to <± 0.1%

Service Temperature

  • -30 to 70° C (-22° to 158° F)

Storage Temperature

  • -50 to 85° C (-58° to 185° F)

Zero Balance

  • ± 0.02 mV/V
