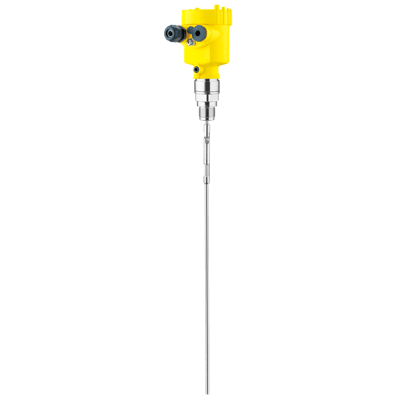

Vegaflex 61 Guided Wave Radar Level Sensor

Brand: VEGA
The Vegaflex 61 is a level sensor for continuous level measurement.

It is suitable for liquids and light-weight solids in practically all industries.

Typical applications are measurements of liquids in storage vessels or bypass tubes.

The sensor can be also used in smaller bulk solid silos.

All instruments are preset to the ordered probe length.
Features
  • Easy Setup without Adjustment
  • Independent of Product Properties
  • Insensitive to Dust, Vapour, Buildup and Condensation
  • Wear and Maintenance Free
  • High Accuracy
  • SIL Qualified
show more
The Vegaflex 61 is a level sensor for continuous level measurement.

It is suitable for liquids and light-weight solids in practically all industries.

Typical applications are measurements of liquids in storage vessels or bypass tubes.

The sensor can be also used in smaller bulk solid silos.

All instruments are preset to the ordered probe length.
Features
  • Easy Setup without Adjustment
  • Independent of Product Properties
  • Insensitive to Dust, Vapour, Buildup and Condensation
  • Wear and Maintenance Free
  • High Accuracy
  • SIL Qualified

Specifications

Brand

Accuracy

  • ± 3 mm

Ambient Temperature Range

  • -40° to 70° C (-40° to 158° F)

Applications

  • Liquids & Light-Weight Solids in Practically All Industries
  • The Sensor Can be Also used in Liquids in Storage Vessels & Bypass

Approvals & Certifications

  • SIL
  • ATEX
  • GL
  • IEC
  • LRS

BSP Connection

  • G 1”
  • G 1-1/2”
  • G 3/4”

Communication

  • HART

Enclosure, Body Material

  • Aluminum
  • Plastic (Double Chamber Version)
  • Stainless Steel

Environmental Protection

  • IP66
  • IP67

Flange Size - 1-1/2” (DN 40)

  • 1-1/2” (DN 40) - PN 40

Flange Size - 1” (DN 25)

  • 1” (DN 25) - 150#
  • 1” (DN 25) - PN 40

Flange Size - 2” (DN 50)

  • 2” (DN 25) - 150#
  • 2” (DN 50) - PN 40

Flange Size - 3” (DN 80)

  • 3” (DN 25) - 150#
  • 3” (DN 40) - PN 40

Length

  • Cable Version: 105 feet (32 metres)
  • Rod Version: 13.12 feet (4 metres)

NPT Connection

  • 1” NPT Male
  • 1-1/2” NPT Male
  • 3/4” NPT Male

Operating Voltages

  • 20-72 Vdc
  • 50/60 Hz

Output

  • 4-20 mA / HART
  • FOUNDATION Fieldbus & PROFIBUS PA

Pressure Range

  • psig: -14.5 to 580 (kPa: -100 to 4,000, bar: -1 to 40)

Process Temperature

  • -40° to 150° C (-40° to 302° F)

Seat / Seal Material

  • EPDM
  • FFKM
  • FKM Fluoroelastomer

Storage Temperature

  • -40° to 70° C (-40° to 158° F)

Wetted Materials

  • Stainless Steel
