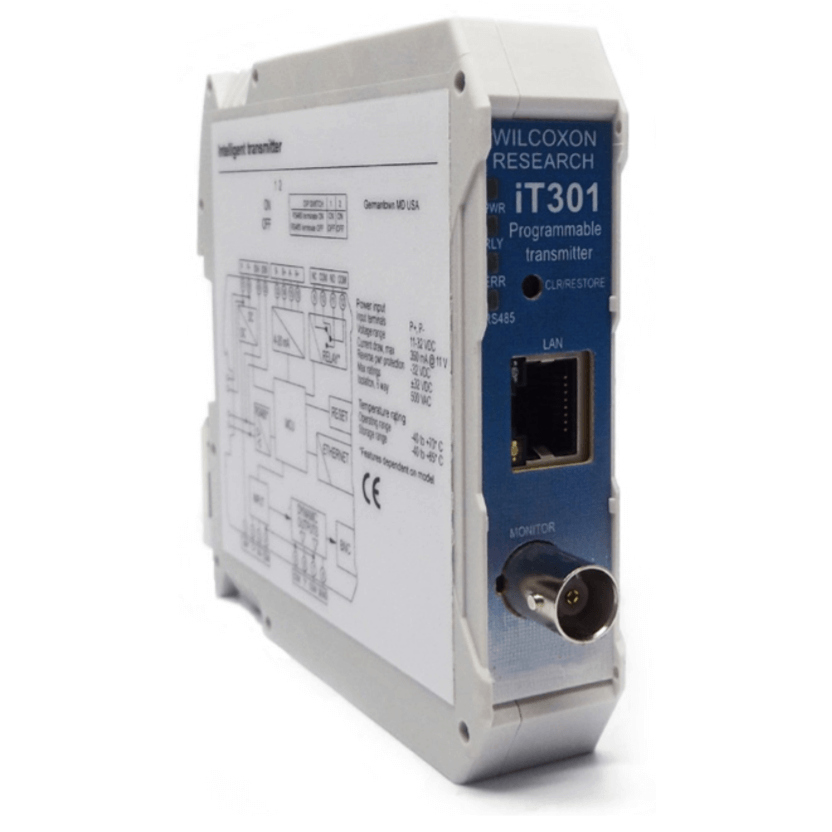

Model iT301 User-Configurable Intelligent Vibration Transmitter

Brand: Wilcoxon Sensing Technologies
Features:
  • Accepts input from accelerometers (single and dual output), piezo- velocity sensors
  • Input signal is split into two independent processing bands
  • Measures real time sensor bands, BOV, signal true peak and temperature (if available)
  • Built-in web browser allows custom configuration of bandwidth and detection type
  • 2 x 4-20 mA outputs, user-defined
  • High/low alarms mappable to a single NC/NO relay
  • Text field for user entry of machine information
  • Configurations can be stored for easy recall
  • Selectable speed range to monitor high- or low- speed machinery
  • Communicates using Modbus-TCP or RS485 protocol
show more
Features:
  • Accepts input from accelerometers (single and dual output), piezo- velocity sensors
  • Input signal is split into two independent processing bands
  • Measures real time sensor bands, BOV, signal true peak and temperature (if available)
  • Built-in web browser allows custom configuration of bandwidth and detection type
  • 2 x 4-20 mA outputs, user-defined
  • High/low alarms mappable to a single NC/NO relay
  • Text field for user entry of machine information
  • Configurations can be stored for easy recall
  • Selectable speed range to monitor high- or low- speed machinery
  • Communicates using Modbus-TCP or RS485 protocol

Specifications

Approvals & Certifications

  • CE

Communication

  • Modbus/TCP
  • RS-485
  • RS-485 - Maximum
  • RS-485: 120 ohms Termination Network
  • RS-485: 2-Wire Half-Duplex

Electrical Connectors

  • BNC Connector
  • Screw Terminal
  • Terminal Block

Frequency

  • Frequency Response: 0.2 Hz to 20 kHz (-3 dB, 0.1 dB)
  • True Peak Band: True Peak Detector, 10 Hz to 25 kHz

Indication

  • Green LED: Solid (Normal), Flashing (Test), OFF (No Power)
  • Yellow LED: ON (Relay Energized), OFF (Relay De-Energized, RS-485 Idle / Non-Matching Address), Flashing (RS-485 Active)

Isolation

  • 500 Vac, Input to Output

Loop Resistance

  • Maximum 500 Ω

Mounting

  • 35 mm DIN Rail

Operating Temperature

  • -40° to 70° C (-40° to 158° F)

Output

  • Loop Output: 4-20 mA (Two) Configurable from Measurement Results

Power

  • 11-32 Vdc
  • 350 mA - Maximum
  • IEPE Power Source: 24 Vdc, 3.5 mA, Enable/Disable

Range

  • Dynamic Range: > 90 dB

Sensitivity

  • Sensitivity Range (Acceleration): 9 to 11,000 mV/g
  • Sensitivity Range (Temperature): 10 mV / °C (Optional 10 mV/° K)
  • Sensitivity Range (Velocity): 9 to 11,000 mV/inch/sec

Sensor, Probe Type

  • Sensor Typical: IEPE Accelerometers (Single & Dual Output) Piezo Velocity Transducers

Storage Temperature

  • -40° to 85° C (-40° to 185° F)

Switch Type

  • DIP Switches

Temperature Effect

  • 10 mV / °C, 2 to 120° C, Sensor Dependent
