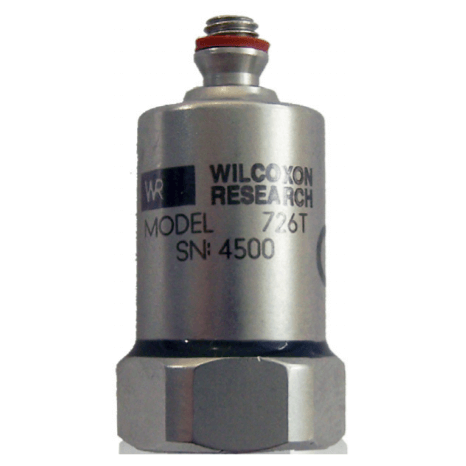

Model 726/726T Compact General-Purpose Accelerometer

Brand: Wilcoxon Sensing Technologies
Request Information
Favorite
Side/Top exit, compact, general-purpose accelerometer, 10-32 coaxial connector, 100 mV/g.
Features
  • Wide frequency range
  • Low noise floor
  • Hermetically designed
  • Temperature compensated
  • Wide dynamic range
  • Small size, lightweight
  • Reverse wiring protection
show more
Side/Top exit, compact, general-purpose accelerometer, 10-32 coaxial connector, 100 mV/g.
Features
  • Wide frequency range
  • Low noise floor
  • Hermetically designed
  • Temperature compensated
  • Wide dynamic range
  • Small size, lightweight
  • Reverse wiring protection
Close
Close

Specifications

Brand

Electrical Connectors

  • Cable (J93)
  • Mating Connector: R1
  • Output Connector: 10-32 Coaxial Cable

Enclosure, Body Material

  • 316L Stainless Steel

Frequency

  • Frequency Response (± 10%): 1.0 to 12,000 Hz
  • Frequency Response (± 3 dB): 0.6 to 15,000 Hz
  • Frequency Response (± 5%): 2.0 to 10,000 Hz
  • Resonance Frequency, Mounted, Nominal: 32 kHz

Mounting

  • 10-32 Tapped Hole

Noise

  • Electrical Noise, Equivalent G, Nominal (Broadband: 2.5 Hz to 25 kHz): 60 µg
  • Electrical Noise, Equivalent G, Nominal (Spectral: 1,000 Hz): 0.3 µg/√Hz
  • Electrical Noise, Equivalent G, Nominal (Spectral: 10 Hz): 8.0 µg/√Hz
  • Electrical Noise, Equivalent G, Nominal (Spectral: 10,000 Hz): 0.2 µg/√Hz
  • Electrical Noise, Equivalent G, Nominal (Spectral: 100 Hz): 0.8 µg/√Hz

Non-Linearity

  • Amplitude Non-Linearity: 1%

Output Impedence

  • Maximum

Power Requirement

  • 18-30 Vdc
  • Current Regulating Diode: 2-10 mA

Range

  • Acceleration Range: 80 G Peak

Sensitivity

  • Base Strain Sensitivity: 0.002 G/μstrain
  • Electromagnetic Sensitivity at 60 Hz: 40 µg/Gauss
  • Sensitivity, ± 5%, 25° C (77° F): 100 mV/g
  • Transverse Sensitivity, Maximum

Shock

  • Shock Limit: 5,000 G Peak

Temperature Range

  • -50° to 120° C (-58° to 248° F)

Vibration

  • Vibration Limit: 500 G Peak

Voltage

  • Bias Output Voltage, Nominal: 12 Vdc
