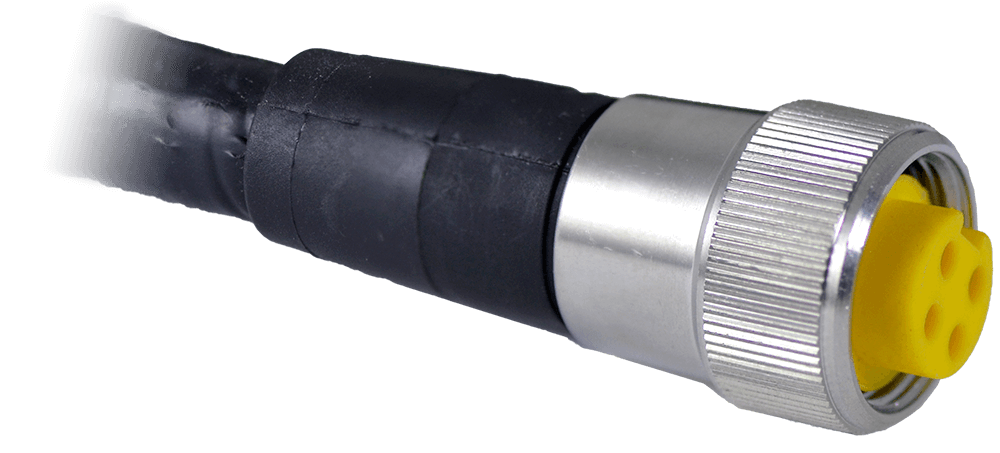

442-196 Discrete/Power Minifast Cable

Brand: Turck, Inc.
  • Process Cable:
    • Discrete/Power Circuits
  • Connector:
    • "minifast" Series
    • Female or Male Receptacle
    • Single or Double Ended
    • 316 Stainless Steel or Nickel Plated Brass Coupling Nut
    • 4 Contacts / 4 x #18 AWG Wires
    • (14.5 mm) = 1/2"-14 Male NPT Threads
  • Wires:
    • 105 C, 300 V
    • (3) x # 18 AWG Circuits
    • (1) x # 18 AWG Ground wire
  • Protection Class:
    • IEC67, NEMA 1,3,4,6P
  • Approvals:
    • UL: ITC-ER/PLTC-ER, Direct Burial, 105C
    • CSA: CIC/TC, 90C, 600V
    • cUL: C22.2 No 245/1309 Marine Shipboard/IEEE 1580
show more
  • Process Cable:
    • Discrete/Power Circuits
  • Connector:
    • "minifast" Series
    • Female or Male Receptacle
    • Single or Double Ended
    • 316 Stainless Steel or Nickel Plated Brass Coupling Nut
    • 4 Contacts / 4 x #18 AWG Wires
    • (14.5 mm) = 1/2"-14 Male NPT Threads
  • Wires:
    • 105 C, 300 V
    • (3) x # 18 AWG Circuits
    • (1) x # 18 AWG Ground wire
  • Protection Class:
    • IEC67, NEMA 1,3,4,6P
  • Approvals:
    • UL: ITC-ER/PLTC-ER, Direct Burial, 105C
    • CSA: CIC/TC, 90C, 600V
    • cUL: C22.2 No 245/1309 Marine Shipboard/IEEE 1580

Specifications

Brand

Approvals & Certifications

  • CSA
  • cUL
  • UL

Cable Type

  • Unarmored

Connection Pin-Out

  • 4-Pin

Connection Style

  • minifast

Connector Shape

  • Straight

Process Connection Material

  • 316 Stainless Steel
  • Nickel-Plated Brass

Process Temperature

  • -40° to 105° C (-40° to 221° F)

Version / Leadwires

  • 4-Wire
