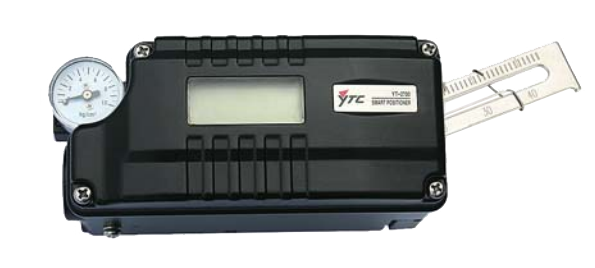

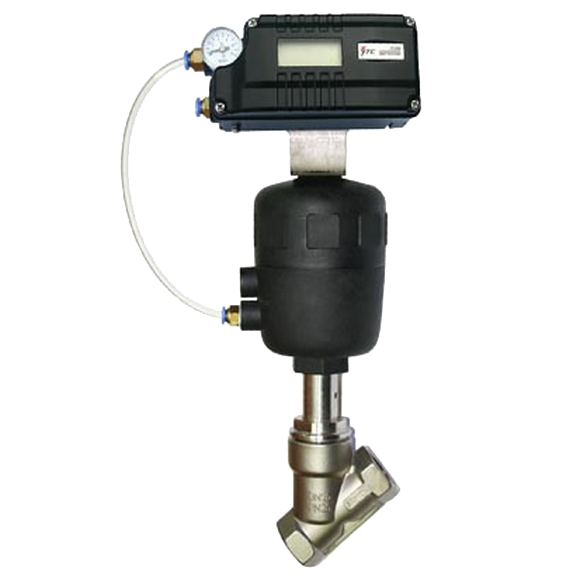

YT-2700 Smart Positioner

Brand: Young Tech Co., Ltd
The YT-2700 Smart Valve Positioner accurately controls valve stroke, according to input signal of 4-20mA, which is being input from the controller. In addition, built-in micro-processing operator optimizes the positioner's performance and provides unique functions such as Auto calibration, PID control, Alarm, and Hart protocol.
Features
  • Fail Freeze function
  • Fail safe function
  • LCD display
  • Near zero air consumption level
  • PD control
  • Feedback signal
  • 4 buttons for local control
  • Auto calibration
  • HART communication
  • Single acting only
show more
The YT-2700 Smart Valve Positioner accurately controls valve stroke, according to input signal of 4-20mA, which is being input from the controller. In addition, built-in micro-processing operator optimizes the positioner's performance and provides unique functions such as Auto calibration, PID control, Alarm, and Hart protocol.
Features
  • Fail Freeze function
  • Fail safe function
  • LCD display
  • Near zero air consumption level
  • PD control
  • Feedback signal
  • 4 buttons for local control
  • Auto calibration
  • HART communication
  • Single acting only

Specifications

Approvals & Certifications

  • CE
  • KC

Communication

  • HART

Conduit Connection

  • PF 1/2 (G 1/2")

Enclosure, Body Material

  • Die Cast Aluminum

Environmental Protection

  • IP66

Flow Capacity

  • 9 LPM

Hysteresis

  • ± 0.05% of Span

Independent Linearity

  • ± 0.5% of Full Scale

Input Signal

  • 4-20 mA DC

NPT Connection

  • 1/4" NPT

Operating Temperature

  • -30° to 85° C (-22° to 185° F)

PT/PF/PS (JIS) Connection

  • 1/4" PT

Repeatability

  • ± 0.3% of Full Scale

Supply Pressure

  • bar: 1.4 to 7
  • kPa: 140 to 700
  • psig: 20.3 to 100
