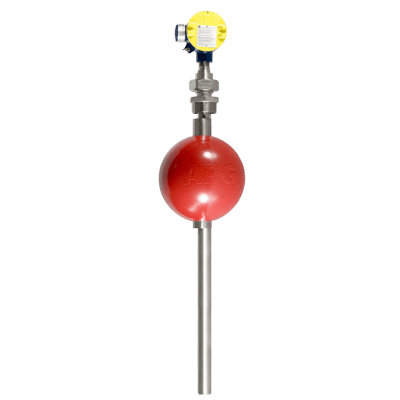

RPM Series Resistive Chain Level Sensor

Brand: Automation Products Group - APG
Request Information
Favorite
The RPM Level Sensor is designed for use in the chemical, oil, shipping, food processing, waste treatment, and many other industries. Each RPM is manufactured to the users specifications making it fit to work precisely according to the application requirements.
Features
  • Continuous level indication
  • Rugged and highly reliable
  • Anti-stick float design
  • Resistive chain or loop-powered 4-20 mA output
  • Hazardous location approvals - Explosion proof/Intrinsically safe
show more
The RPM Level Sensor is designed for use in the chemical, oil, shipping, food processing, waste treatment, and many other industries. Each RPM is manufactured to the users specifications making it fit to work precisely according to the application requirements.
Features
  • Continuous level indication
  • Rugged and highly reliable
  • Anti-stick float design
  • Resistive chain or loop-powered 4-20 mA output
  • Hazardous location approvals - Explosion proof/Intrinsically safe
Close

Displaying prices & availability for United States in USD. Change location or currency

54 models matching criteria
RPM-096-A-N-EX1-001-02-00
APG RPM Series Level Sensor, 96", No Float, 0-5 VDC Terminal Strip, Strain Relief w/Plug, 5" NPT View More
  • RPM: Explosion Proof Continuous Float Level Transmitter (Resistive)
    • 096: Length in Inches[/li]A: APG Logo[/li]N: No Float[/li]EX1: 0-24 VDC (resistive) with EX approval. Class 1, Div.1.[/li]011: Strain Relief with Plug[/li]02: 1/2” resolution, top deadband (S1) - 8 inches, bottom deadband (S2) - 5 inches[/li]00: Mount Option - None[/li]

*** Crating Fees May Apply ***​
3 - 5 weeks
$656.36USD
$19.00 Shipping
RPM-067-A-F-AIS-000-13-00
APG RPM Series Level Sensor, 67", Polyurethane Float, 4-20 mA, ATEX View More
  • RPM: Explosion Proof Continuous Float Level Transmitter (Resistive)
  • 067: Probe Length: 67”
  • A: APG Label
  • F: Polyurethane float with designated logo (0.44 SG, 8” OD)
  • AIS: 4-20 mA with ATEX approval (Ex. ll.1G EX ia IIB T3 & Class 1, Div. 1 ia) CSA, IS, Class 1 Div. 1
    • 000: No Custom Wiring[/li]13: 1/4” resolution, top deadband (S1) - 8 inches, bottom deadband (S2) - 4 inches[/li]00: Mount Option - None[/li]

*** Crating Fees May Apply ***
3 - 5 weeks
Non-Cancellable / Non-Refundable
$1,369.73USD
$19.00 Shipping
RPM-059-A-F-AIS-000-02-00
APG RPM Series Level Sensor, 59", Polyurethane Float, 4-20 mA, ATEX View More
    RPM: Explosion Proof Continuous Float Level Transmitter (Resistive)[/li]059: Length in Inches[/li]A: APG Logo[/li]F: Polyurethane float with designated logo (0.44 SG, 8” OD)[/li]AIS: 4-20 mA with ATEX approval (Ex. ll.1G EX ia IIB T3 & Class 1, Div. 1 ia) CSA, IS, Class 1 Div. 1[/li]000: No Custom Wiring[/li]02: 1/2” resolution, top deadband (S1) - 8 inches, bottom deadband (S2) - 5 inches[/li]000: Mount Option - None[/li]

*** Crating Fees May Apply ***
3 - 5 weeks
Non-Cancellable / Non-Refundable
$1,400.43USD
$19.00 Shipping
RPM-080-A-N-EX1-001-03-4T2
APG RPM Series Level Sensor, 80", No Float, 0-5 VDC Terminal Strip, Strain Relief w/Plug, 2" NPT View More
  • RPM: Explosion Proof Continuous Float Level Transmitter (Resistive)
    • 080: Length in Inches[/li]A: APG Logo[/li]N: No Float[/li]EX1: 0-24 VDC (resistive) with EX approval. Class 1, Div.1.[/li]011: Strain Relief with Plug[/li]03: 1/2” resolution, top deadband (S1) - 8 inches, bottom deadband (S2) - 4 inches[/li]4T2: 2" NPT plug mounted outside of tank 316L SS[/li]

*** Crating Fees May Apply ***​
3 - 5 weeks
Non-Cancellable / Non-Refundable
$1,413.58USD
$19.00 Shipping
RPM-024-A-S-AIS-000-14-4T2
APG Level Probe Sensor, 24", Stainless Steel Float, 4-20 mA, ATEX View More
  • RPM: Explosion Proof Continuous Float Level Transmitter (Resistive)
  • 024: Probe Length: 24”
  • A: APG Label
  • S: 316 SS float (0.5 SG, 5” OD)
  • AIS: 4-20 mA with ATEX approval (Ex. ll.1G EX ia IIB T3 & Class1, Div. 1 ia) CSA, IS, Class 1 Div 1
  • 000: Wiring: No Custom Wiring
  • 014: 1/4” resolution, top deadband (S1) - 1/2 float H, bottom deadband (S2) - 1/2 float H
  • 4T2: 2" NPT plug mounted outside of tank 316L SS
3 - 5 weeks
Non-Cancellable / Non-Refundable
$1,451.59USD
$19.00 Shipping
RPM-048-C-F-IS-000-14-4T2
APG RPM Series Level Sensor, 48", Polyurethane Float, 4-20 mA,No StrainRelief,2"NPT,CustomLogo,Float View More
  • RPM: Explosion Proof Continuous Float Level Transmitter (Resistive)
    • 048: Length in Inches[/li]C: Custom Logo[/li]F: Polyurethane float with designated logo (0.44 SG, 8” OD)[/li]IS: 4-20 mA with IS and EX approval (Class 1, Div. 1)[/li]000: No Custom Wiring[/li]14: 1/4” resolution, top deadband (S1) - 1/2 float H, bottom deadband (S2) - 1/2 float H[/li]4T2: 2" NPT plug mounted outside of tank 316L SS[/li]
3 - 5 weeks
Non-Cancellable / Non-Refundable
$1,491.06USD
$19.00 Shipping
RPM-048-N-F-IS-000-13-4T2
APG RPM Series Level Sensor, 48", Polyurethane Float, 4-20 mA, No Strain Relief, 2" NPT View More
    RPM: Explosion Proof Continuous Float Level Transmitter (Resistive)[/li]048: Length in Inches[/li]N: No Logo[/li]F: Polyurethane float with designated logo (0.44 SG, 8” OD)[/li]IS: 4-20 mA with IS and EX approval (Class 1, Div. 1)[/li]000: No Custom Wiring[/li]13: 1/4” resolution, top deadband (S1) - 8 inches, bottom deadband (S2) - 4 inches[/li]4T2: 2" NPT plug mounted outside of tank 316L SS[/li]
3 - 5 weeks
Non-Cancellable / Non-Refundable
$1,505.68USD
$19.00 Shipping
RPM-072-A-F-IS-000-02-00
APG RPM Series Level Sensor, 72", Polyurethane Float, 4-20 mA, No Cable, 5"Rev, CSA View More
  • RPM: Explosion Proof Continuous Float Level Transmitter (Resistive)
  • 072: Probe Length (inches)
  • A: Logo Design - APG
  • F: Polyurethane float with designated logo (0.44 SG, 8” OD)
  • IS: 4-20 mA with IS and EX approval (Class 1, Div. 1)
  • 000: No Custom Wiring
  • 02: 1/2” resolution, top deadband (S1) - 8 inches, bottom deadband (S2) - 5 inches

*** Crating Fees May Apply ***
3 - 5 weeks
Non-Cancellable / Non-Refundable
$1,517.37USD
$19.00 Shipping
RPM-024-A-S-AIS-000-02-4T3
APG RPM Series Level Sensor, 24", 316 SST Float, 4-20 mA, 1/2" Resolution, ATEX, CSA View More
    RPM: Explosion Proof Resistive Level Transmitter with 1” Stem[/li]024: Length in Inches[/li]A: APG Logo[/li]S: 316 SST float (0.5 SG, 5” OD)[/li]AIS: 4-20 mA
      ATEX approval (Ex ll 1G EX ia IIB T3 Ga and Class 1, Div. 1 ia)[/li]CSA, IS, Class 1 Division 1[/li]
    [/li]000: No Custom Wiring[/li]2: Cable Supplier - APG[/li]4: 1/2” resolution, top deadband (S1) - 1/2 float H, bottom deadband (S2) - 1/2 float H[/li]4T3: 3" NPT plug mounted outside of tank 316L SS[/li]
2 - 4 weeks
$1,537.11USD
$19.00 Shipping
RPM-084-A-F-AIS-000-02-00
APG RPM Series Level Sensor, 84", Polyurethane Float, 4-20 mA, ATEX View More
  • ​RPM: Explosion Proof Continuous Float Level Transmitter (Resistive)
  • 084: Probe Length: 84”
  • A: APG Label
  • F: Polyurethane float with designated logo (0.44 SG, 8” OD)
  • AIS: 4-20 mA with ATEX approval (Ex. ll.1G EX ia IIB T3 & Class 1, Div. 1 ia) CSA, IS, Class 1 Div. 1
    • 000: No Custom Wiring[/li]02: 1/2” resolution, top deadband (S1) - 8 inches, bottom deadband (S2) - 5 inches[/li]00: Mount Option - None[/li]

*** Crating Fees May Apply ***​
3 - 5 weeks
Non-Cancellable / Non-Refundable
$1,548.80USD
$19.00 Shipping
Show More Models (43)
Close
Close

Specifications

Brand

Approvals & Certifications

  • ATEX Ntrinsically Safe, Ex II 1 G Ex ia IIB T3 Ga
  • CSA Explosion-proof, Class I, Zone 1, Ex d, IIB T3 & Class I, Zone 1, AEx d, IIB T3
  • CSA Intrinsically Safe, Class I, Div. 1 & 2, Groups C, D

Cable Entry

  • 3/4” NPT

Enclosure, Body Material

  • Aluminum

Environmental Protection

  • IP65

Materials of Construction

  • Float Material: 316L Stainless Steel
  • Float Material: Polyurethane

Maximum System Pressure

  • psi: 72.52 (kPa: 500, bar: 5)

Mounting

  • Flange Mount
  • Pluggable Screw Elements

Output

  • 20-4 mA
  • 4-20 mA

Resolution

  • High: 7 mm (0.25”)
  • Standard: 13 mm (0.5”)

Sensor, Probe Style

  • Float

Stem Length

  • 48” to 240” (122 cm to 640 cm)

Stem Material

  • 316L Stainless Steel
