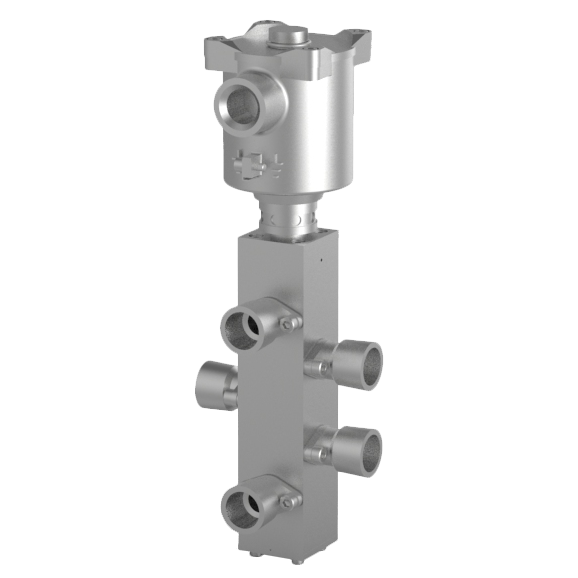

Images are representations only.
Description
Features:
- Solenoid Valve: SIL 3 Third Party Certified
- Solenoid Free to Rotate Through 360°
- 316L Stainless Steel Solenoid Enclosure and Valve. Aluminum Options Available
- Low Power - 1.8 W
- High Flow - Up to 11.1 Cv
- Arctic Service Options to -60° C
- Worldwide Solenoid Approvals Ex emb, Ex d, Ex ia & Explosion Proof
- Up to and Including 508 psi / 35 bar Working Pressure
Configure
SPR-08 5/2
Primary Operator

Configuration 1

Configuration 2

Secondary Operator

O-Ring Material

Solenoid

Solenoid Approval
Voltage

Voltage
Resistance
Power

Cable Entry

Connection Type

Specifications
Specifications
Brand
Actuator Type
- Plunger Operated
- Spring Return
Ambient Temperature Range
- -60° to 90° C (-76° to 194° F)
- -60° to 95° C (-76° to 203° F)
Approvals & Certifications
- ATEX
- CE
- CPT
- CSA
- EAC
- Ex
- GOST
- IEC
- IEC Ex
- INMETRO
- KC KTL
- NEPSI
Approvals & Certifications
- SIL 3
BSP Connection
- 1/2" BSPP Female
- 1/4" BSPP Female
- 3/8" BSPP Female
Cable Entry
- 1/2" NPT
- M20 x 1.5
Class
- Class H - for Solenoid Insulation
Configuration
- 5-Way, 2-Position
Consumption
- 1.8 W - Power Consumption for Ex D IIC T6, T5
- 3 W - Power Consumption for Ex D IIC T4
- 3.6 W - Power Consumption for Ex Emb II T3/T4
Duty Cycle
- 100% Duty Cycle
Enclosure, Body Material
- 316L Stainless Steel
- Aluminum
Environmental Protection
- Explosion-proof
- IP66
- IP67
- NEMA 4X
Frequency
- 50 Hz
Materials of Construction
- Fastener: A4 18/10 Grade Stainless Steel, equivalent to 316L Grade Stainless Steel
Media
- Filtered Lubricated or Unlubricated Air
- Inert Gas
- Mineral Oil
- Sweet & Sour Gas
- Water & Water Glycol Mixtures
NPT Connection
- 1/2" NPT Female
- 1/4" NPT Female
- 3/8" NPT Female
O-Ring Material
- Fluorosilicone
- Nitrile
- Viton
Override
- Manual Latch
- Manual Override
- Manual Reset
Process Temperature
- -60° to 100° C (-76° to 212° F)
Resistance
- 260 ohms
Response Time
- < 100 milliseconds - for Pull-In
- < 70 milliseconds - for Drop Out
Rotation
- 360° - for Solenoid
Seat/Seal Material
- Viton - Valve Seal
Spring Material
- 302S26 Stainless Steel
- 316S42 Stainless Steel
Supply Pressure
- psi: 0 to 508 (kPa: 0 to 3,503, bar: 0 to 35)
Supply Voltage
- 110-240 Vac, 50 or 60 Hz
- 12-110 Vdc
- 12-240 Vac/Vdc
