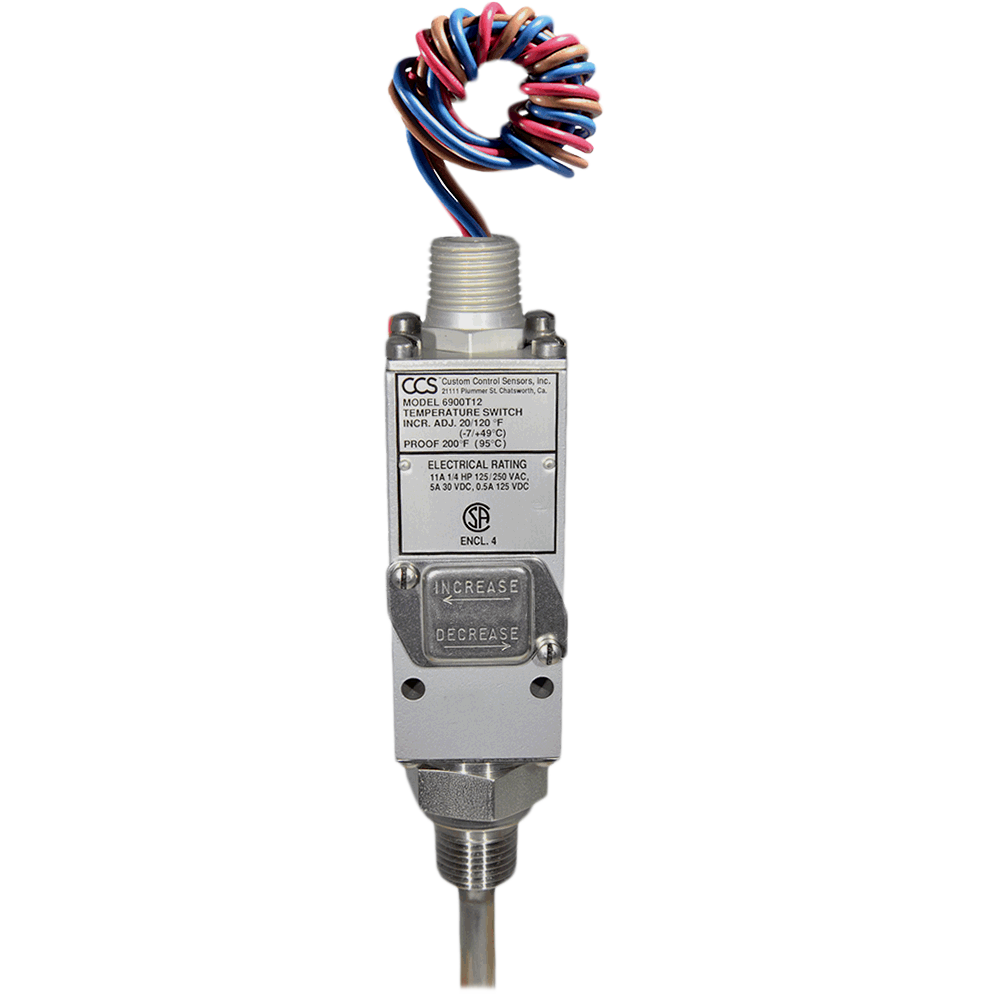

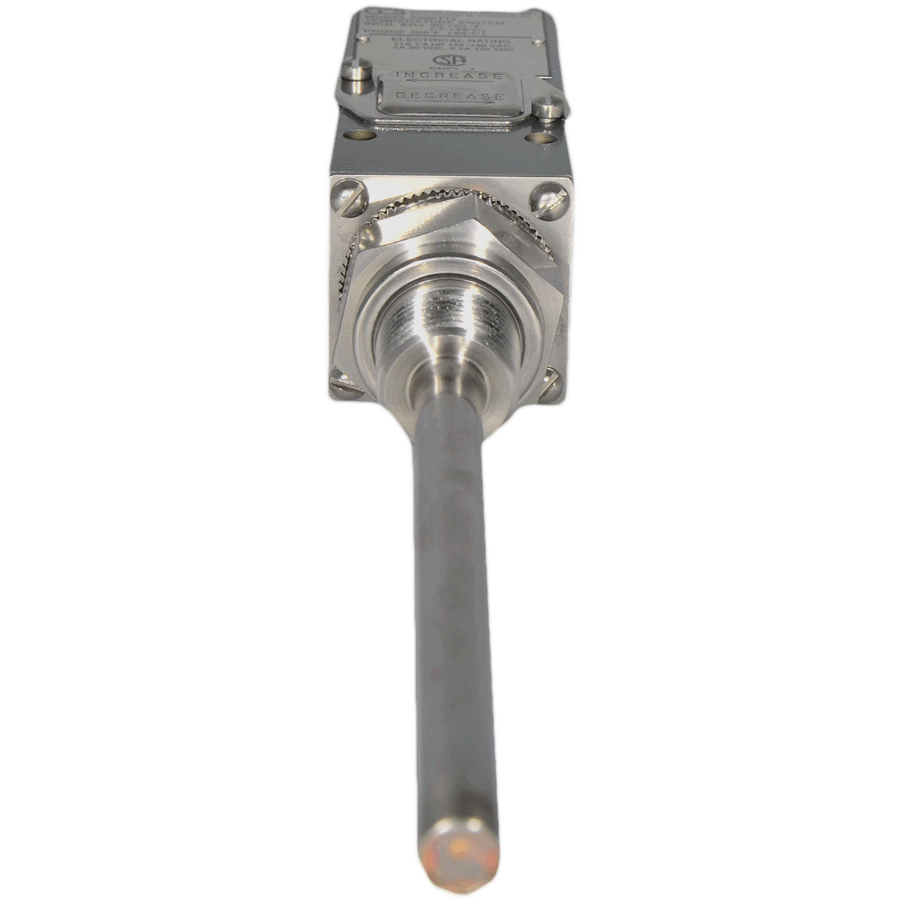

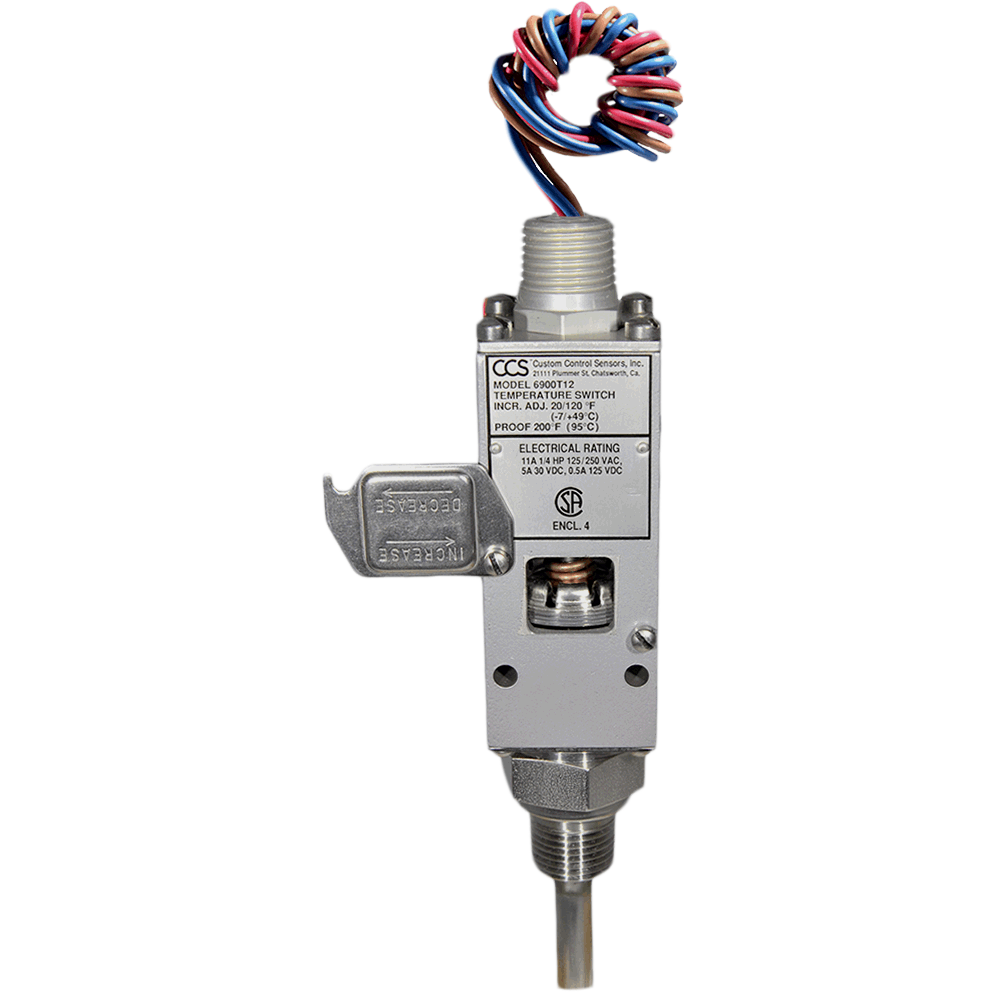

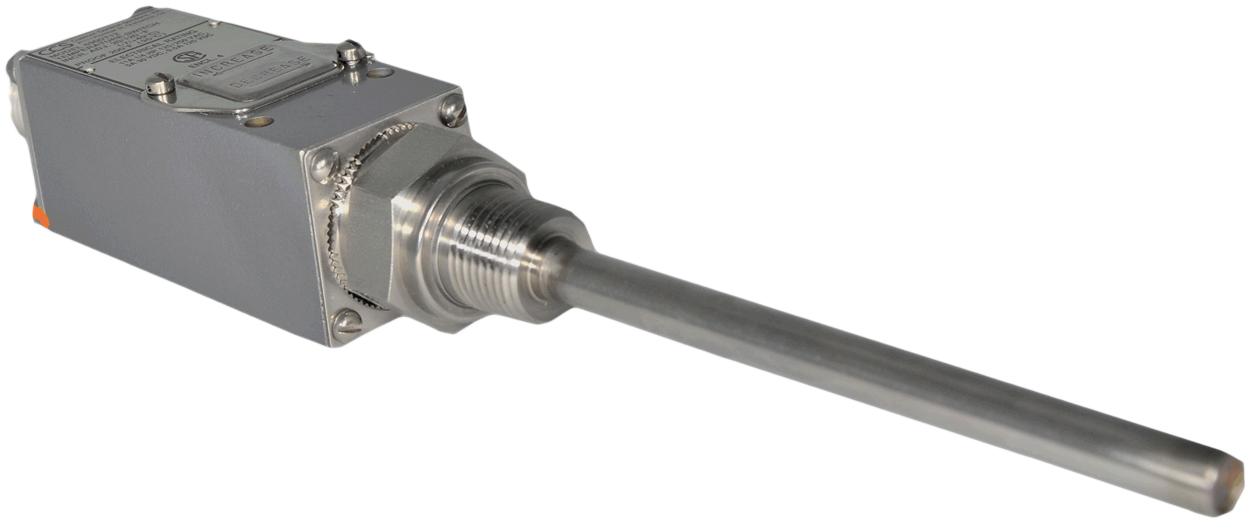

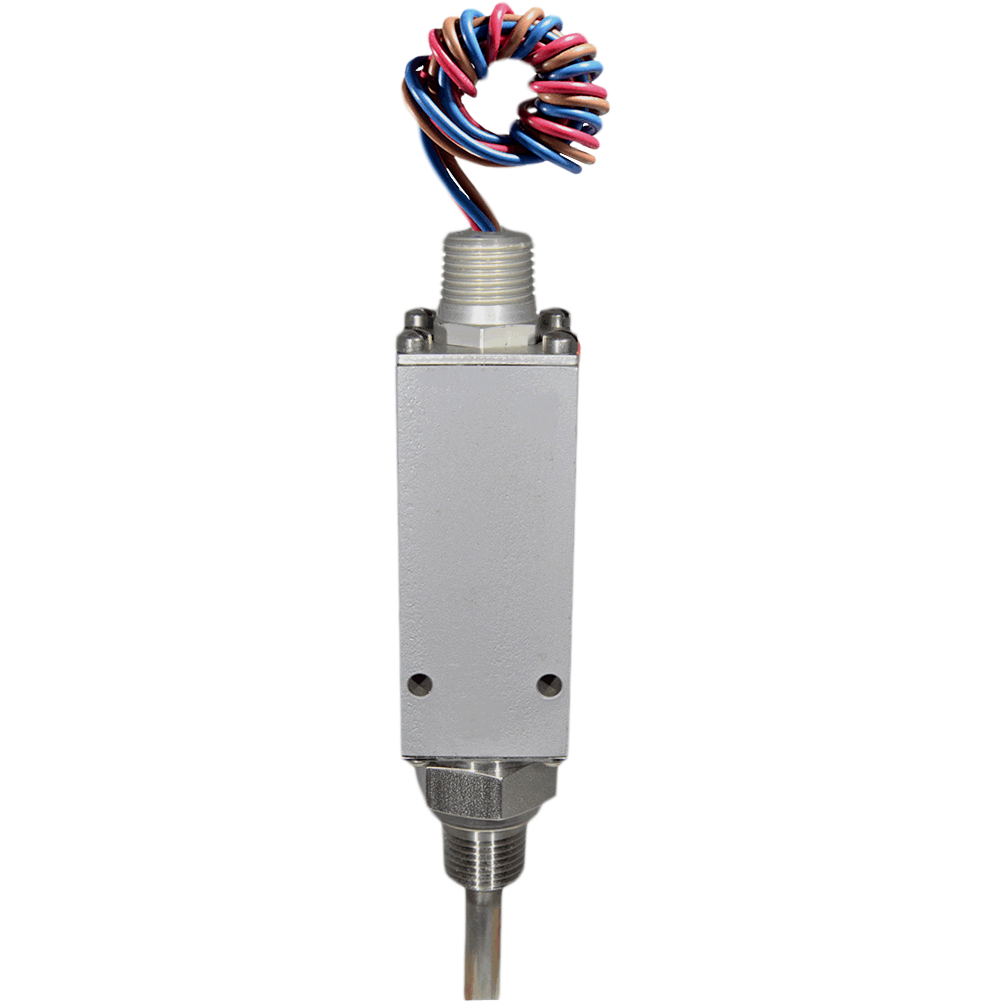

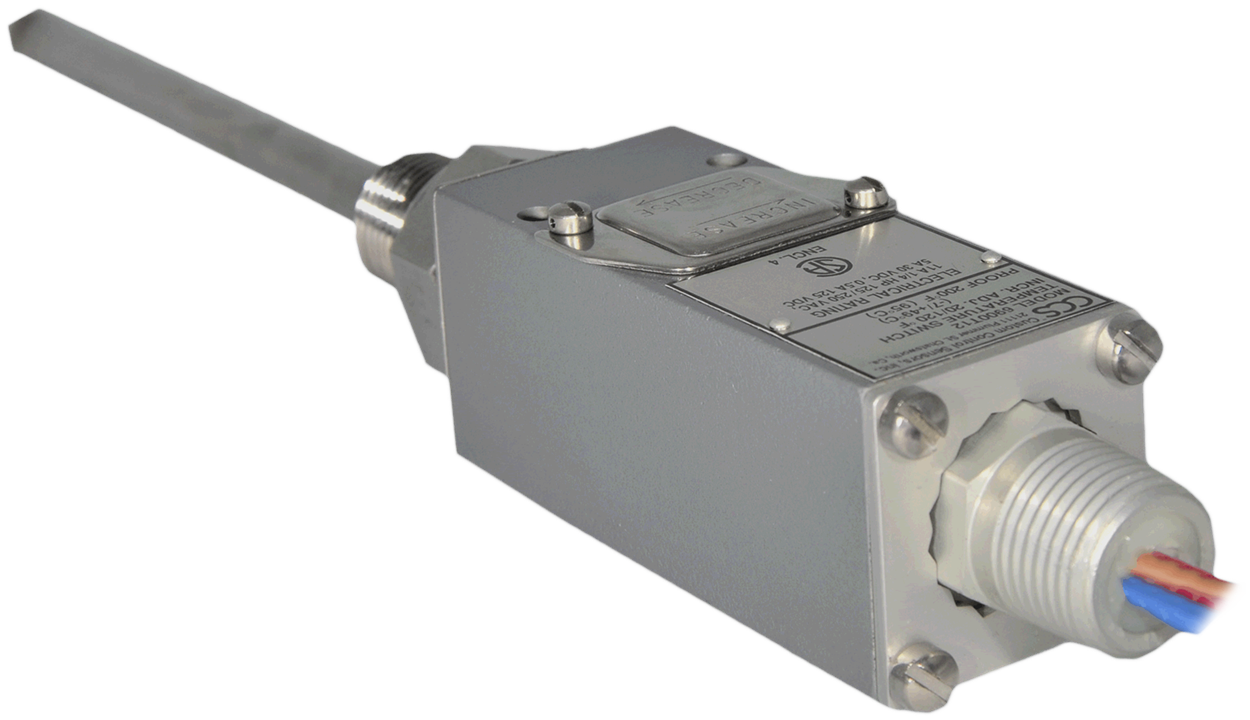

6900T Series Temperature Switch

Brand: Custom Control Sensors, LLC
Does not ship to OH, United States
The General-Purpose 6900TM Series is the most popular, all-around temperature pressure switch, DPDT with a stainless steel temperature probe and port fitting.

It is designed with high vibration and shock resistance utilizing Dual Snap® disc spring technology ensuring high accuracy and repeatability.

It comes with high over-temperature capabilities and still relatively compact in size to conveniently mount on panels.

NEMA 4X and IP66 rating is optimum for wet conditions. It meets the demand for all applications commercial, industrial and otherwise.
Features
  • Adjustable Set Point Range
    • Increasing
      • 20° to 405° F
      • -7° to 207° C
    • Decreasing
      • 0° to 398° F
      • -18° to 203° C
  • Deadband - Approximate
    • At Bottom of Range: 20° F, 11° C
    • At Top of Range: 5° F, 4° C
  • Probe Temperature - Maximum: 200° to 500° F, 93° to 260° C
  • Wetted Materials
    • Temperature Probe: 300 Stainless Steel
  • Relay: SPDT or DPDT
  • CSA, CE Mark, NEMA, General-Purpose, CRN
The General-Purpose 6900TM Series is the most popular, all-around temperature pressure switch, DPDT with a stainless steel temperature probe and port fitting.

It is designed with high vibration and shock resistance utilizing Dual Snap® disc spring technology ensuring high accuracy and repeatability.

It comes with high over-temperature capabilities and still relatively compact in size to conveniently mount on panels.

NEMA 4X and IP66 rating is optimum for wet conditions. It meets the demand for all applications commercial, industrial and otherwise.
Features
  • Adjustable Set Point Range
    • Increasing
      • 20° to 405° F
      • -7° to 207° C
    • Decreasing
      • 0° to 398° F
      • -18° to 203° C
  • Deadband - Approximate
    • At Bottom of Range: 20° F, 11° C
    • At Top of Range: 5° F, 4° C
  • Probe Temperature - Maximum: 200° to 500° F, 93° to 260° C
  • Wetted Materials
    • Temperature Probe: 300 Stainless Steel
  • Relay: SPDT or DPDT
  • CSA, CE Mark, NEMA, General-Purpose, CRN
Close

Specifications

Brand

Adjustment Type

  • Field Adjustable

Approvals & Certifications

  • CE
  • CRN - Canadian Registration Number
  • CRN - Alberta
  • CRN - British Columbia
  • CRN - Manitoba
  • CRN - N.W. Territories
  • CRN - Saskatchewan
  • CSA
  • LVD
  • PED
  • RoHS

Conduit Connection

  • M20 Explosion-proof

Deadband, Approximate - Bottom of Range

  • 11° C (52° F)
  • -7° C (20° F)

Deadband, Approximate - Top of Range

  • -15° C (5° F)
  • 4° C (39° F)

Electrical - Free Leads

  • 18" (45 cm) Free Leads
  • 18" (45 cm) Teflon Leadwire

Electrical Connectors

  • 1/2" NPT Male
  • 4-Blades. Confirms to DIN-43650

Electrical Contacts

  • Gold
  • Silver

Electrical Enclosure Certification

  • CSA Listed by Canadian Standard Association (CSA) Testing Laboratories (File LR22665) for Enclosure

Electrical Rating

  • 1 A at 125 Vac, 50/60 Hz
  • 11 A at 125/250 Vac

Enclosure, Body Material

  • Aluminum
  • Stainless Steel

Environmental Protection

  • IP54
  • IP66
  • NEMA 13
  • NEMA 4, 13 / IP54, 66

Maximum Sensor, Probe Temperature

  • 93° to 260° C (200° to 500° F)

NACE & NIST

  • NACE

NPT Connection

  • 1/2" NPT Male

O-Ring Material

  • None

Operating Temperature

  • -40° to 86° C (-40° to 187° F)

Proof Pressure

  • bar: 103.4
  • kPa: 10,342
  • psig: 1,500

Sensor, Probe Material

  • 300 Stainless Steel

Set Point - Decreasing

  • -18° to 203° C
  • -18° to 203° C (0° to 397° F)

Set Point - Increasing

  • -7° to 207° C
  • -7° to 207° C (20° to 405° F)

Standard Features

  • Weatherproof

Switch Type

  • DPDT
  • SPDT

System Pressure

  • bar: 86
  • kPa: 8,618
  • psig: 1,250
Close

Applications

  • Power Generation
  • Rail Car
  • Fluid Management
  • Manufacturing Process
  • Utilities, Water Treatment and Waste
  • Chemical Refining and Processing
  • Heavy Vehicles
  • Safety Systems
