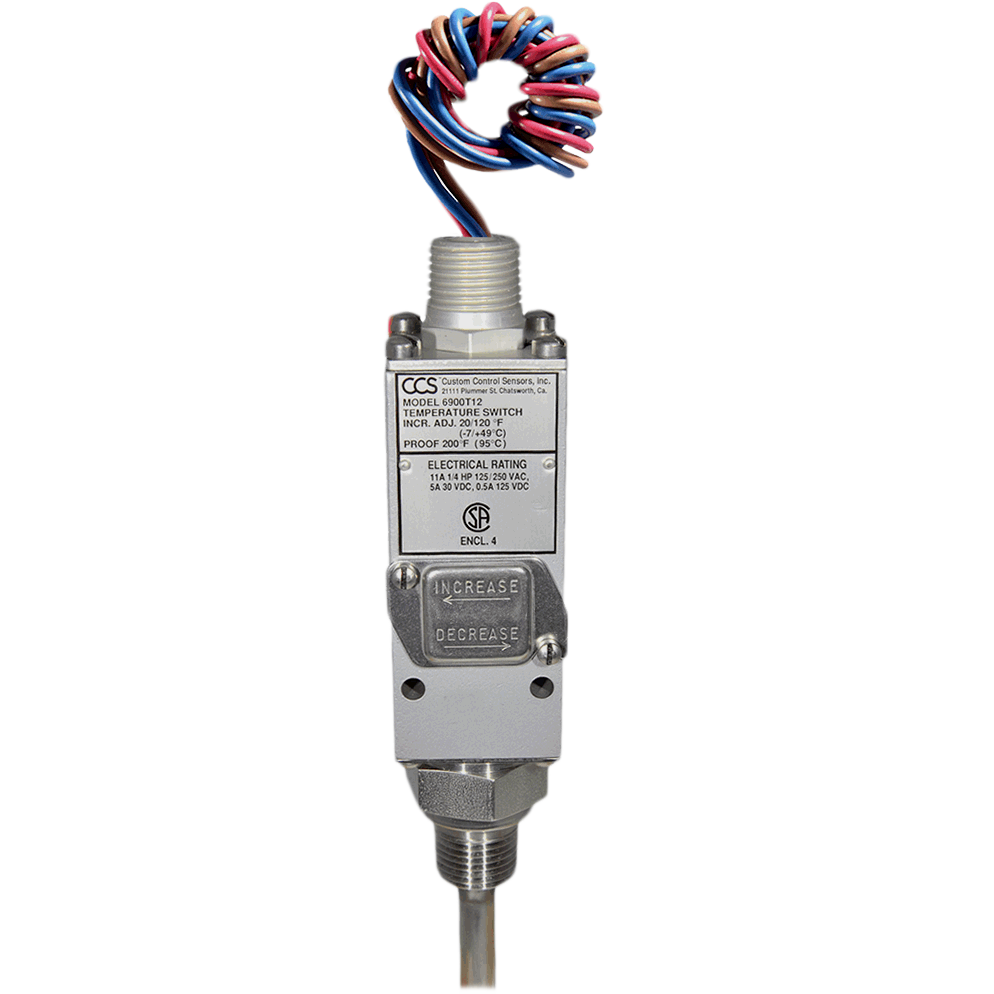

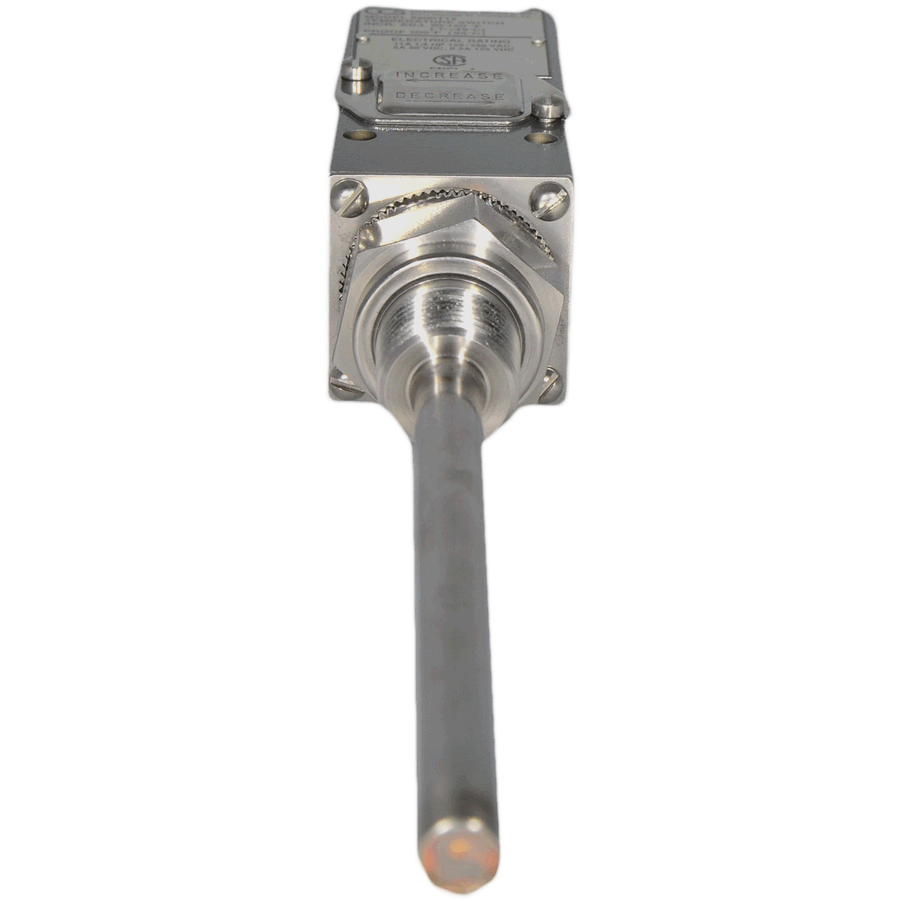

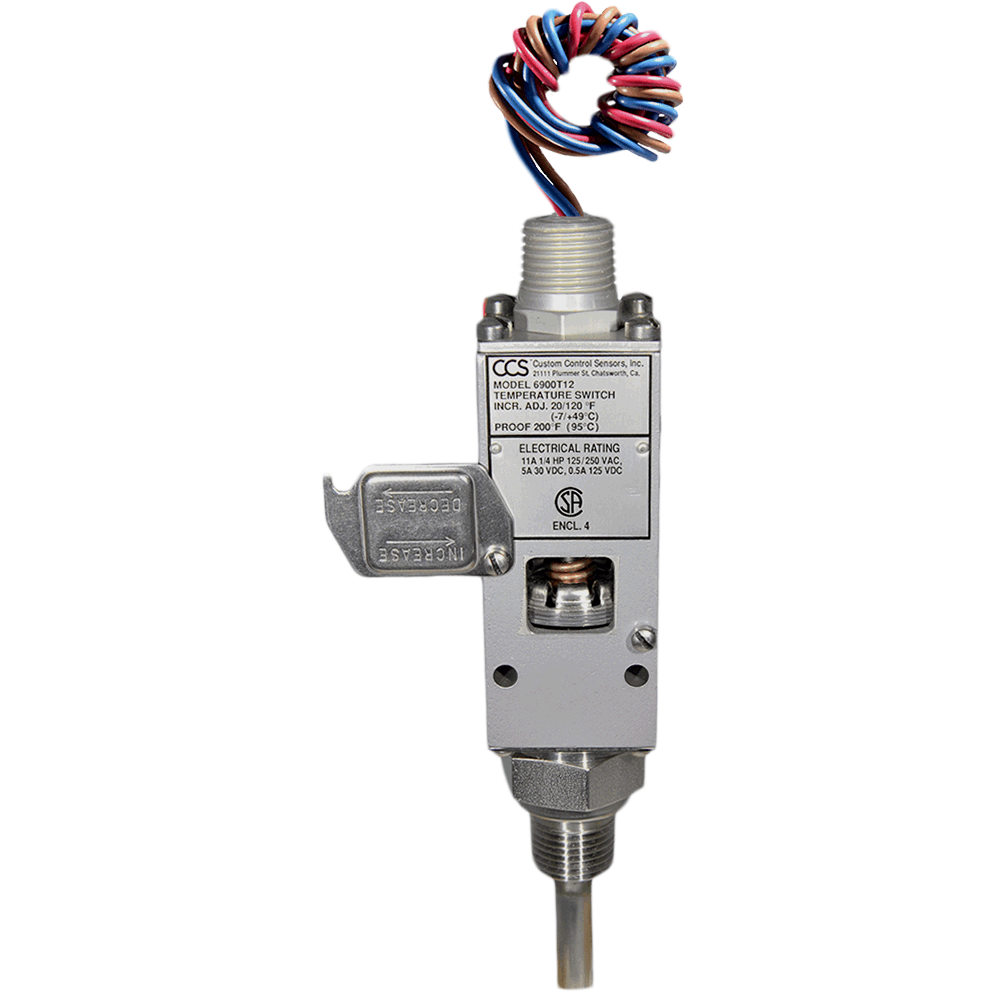

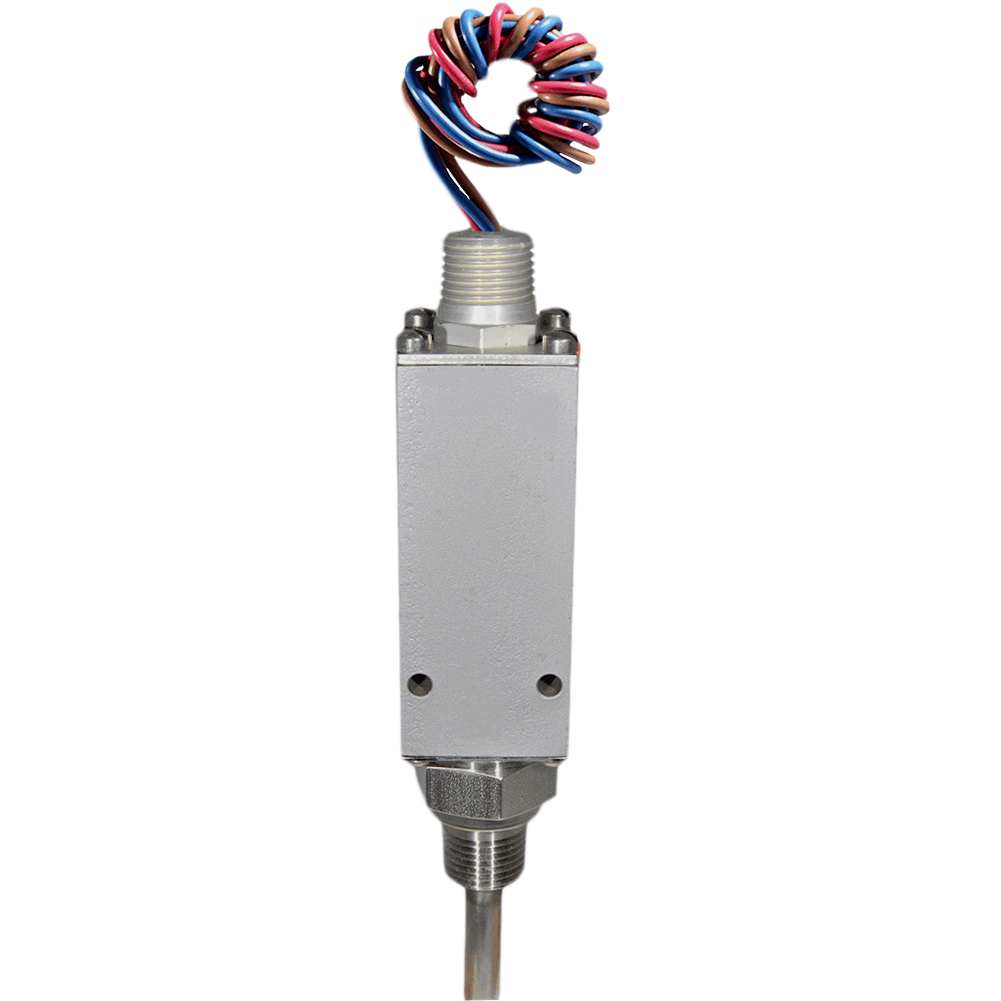

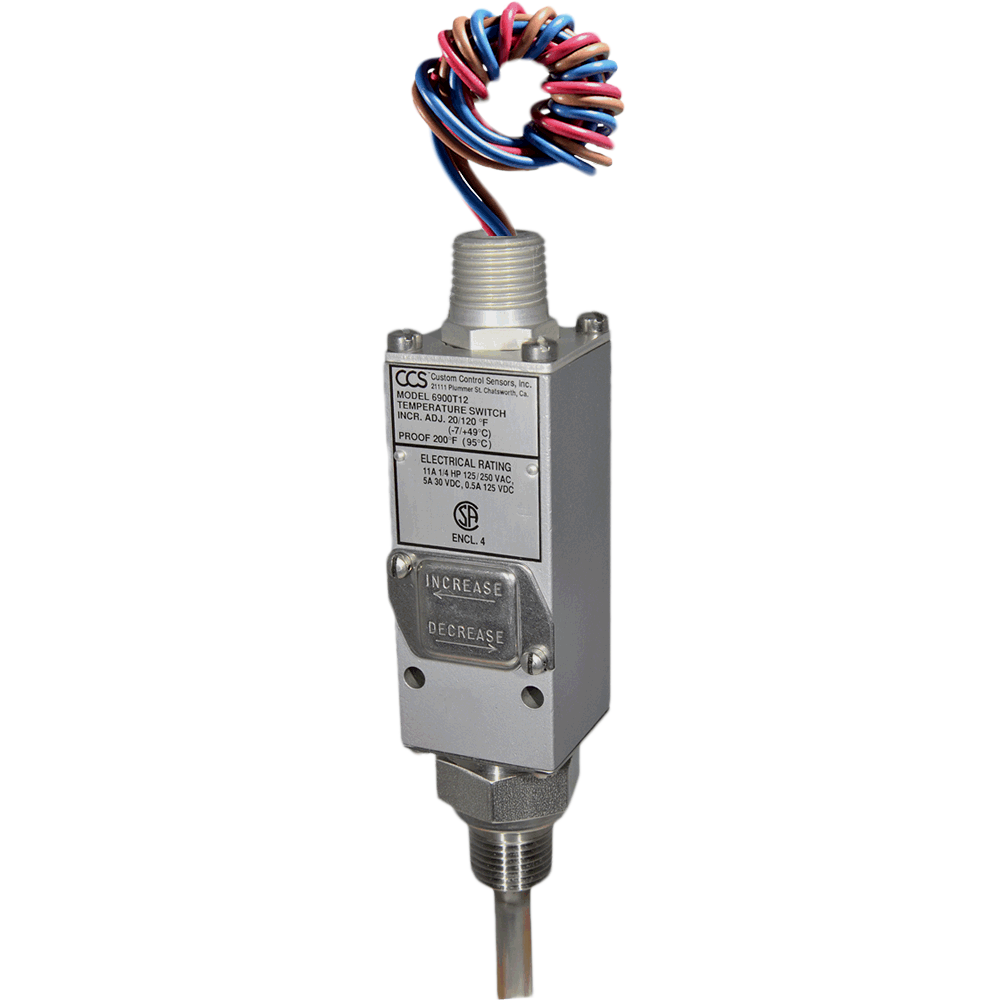

6900T Series Temperature Switch

Brand: Custom Control Sensors
The general purpose 6900TM Series is the most popular, all-around temperature pressure switch, DPDT with a stainless steel temperature probe and port fitting. It is designed with high vibration and shock resistance utilizing Dual Snap® disc spring technology ensuring high accuracy and repeatability. It comes with high over-temperature capabilities and still relatively compact in size to conveniently mount on panels.


NEMA 4X and IP66 rating is optimum for wet conditions. It meets the demand for all applications commercial, industrial and otherwise.
Features
  • Adjustable Set Point Range:
    • Increasing: 20° to 405° F, -7° to 207° C
    • Decreasing: 0° to 398° F, -18° to 203° C
  • Deadband: Approximately
    • At Bottom of Range: 20° F, 11° C
    • At Top of Range: 5° F, 4° C
  • Probe Temperature (Maximum): 200° to 500° F, 93° to 260° C
  • Wetted Materials:
    • Temperature Probe: 300 Stainless Steel
  • Relay: SPDT or DPDT
  • CSA, CE Mark, NEMA, General Purpose, CRN
show more
Images are representations only.
The general purpose 6900TM Series is the most popular, all-around temperature pressure switch, DPDT with a stainless steel temperature probe and port fitting. It is designed with high vibration and shock resistance utilizing Dual Snap® disc spring technology ensuring high accuracy and repeatability. It comes with high over-temperature capabilities and still relatively compact in size to conveniently mount on panels.


NEMA 4X and IP66 rating is optimum for wet conditions. It meets the demand for all applications commercial, industrial and otherwise.
Features
  • Adjustable Set Point Range:
    • Increasing: 20° to 405° F, -7° to 207° C
    • Decreasing: 0° to 398° F, -18° to 203° C
  • Deadband: Approximately
    • At Bottom of Range: 20° F, 11° C
    • At Top of Range: 5° F, 4° C
  • Probe Temperature (Maximum): 200° to 500° F, 93° to 260° C
  • Wetted Materials:
    • Temperature Probe: 300 Stainless Steel
  • Relay: SPDT or DPDT
  • CSA, CE Mark, NEMA, General Purpose, CRN
10 models matching criteria
6900T12
CCS DUAL-SNAP Temperature Switch, Non-Hazardous Area, 1/2" NPT 300 SST Direct Mount, SPDT, CSA, CE, CCC, EAC
8 In Stock
$803.95USD
$8.27 Shipping
6900T14
CCS DUAL-SNAP Temperature Switch, Non-Hazardous Area, 1/2" NPT 300 SST Direct Mount, SPDT, CSA, CE, CCC, EAC
8 - 9 weeks
$1,054.00USD
$8.27 Shipping
6900T14-7008
CCS DUAL-SNAP Temperature Switch, Non-Hazardous Area, 1/2" NPT 300 SST Direct Mount, SPDT, Gold Contacts, CSA, CE, CCC, EAC
45 - 60 days
6900T14-7090
CCS DUAL-SNAP Temperature Switch, Non-Hazardous Area, 1/2" NPT 300 SST Direct Mount, SPDT, 2m Free Leads, CSA, CE, CCC, EAC
45 - 60 days
6900T14-7092
CCS DUAL-SNAP Temperature Switch, Non-Hazardous Area, 1/2" NPT 300 SST Direct Mount, SPDT, Teflon Leads, CSA, CE, CCC, EAC
10 - 12 weeks
6900T16
CCS DUAL-SNAP Temperature Switch, Non-Hazardous Area, 1/2" NPT 300 SST Direct Mount, SPDT, CSA, CE, CCC, EAC
45 - 60 days
6900T18
CCS DUAL-SNAP Temperature Switch, Non-Hazardous Area, 1/2" NPT 300 SST Direct Mount, SPDT, CSA, CE, CCC, EAC
45 - 60 days
6900TM12
CCS DUAL-SNAP Temperature Switch, Non-Hazardous Area, 1/2" NPT 300 SST Direct Mount, DPDT, CSA, CE, CCC, EAC
45 - 60 days
6900TM14
CCS DUAL-SNAP Temperature Switch, Non-Hazardous Area, 1/2" NPT 300 SST Direct Mount, DPDT, CSA, CE, CCC, EAC
45 - 60 days
6900TM16
CCS DUAL-SNAP Temperature Switch, Non-Hazardous Area, 1/2" NPT 300 SST Direct Mount, DPDT, CSA, CE, CCC, EAC
45 - 60 days

6900T

Base Model

Process Connection

Output

Electrical Contacts

Enclosure Material

Paint

Typical Applications

  • Power Generation
  • Rail Car
  • Fluid Management
  • Manufacturing Process
  • Utilities, Water Treatment and Waste
  • Chemical Refining and Processing
  • Heavy Vehicles
  • Safety Systems
