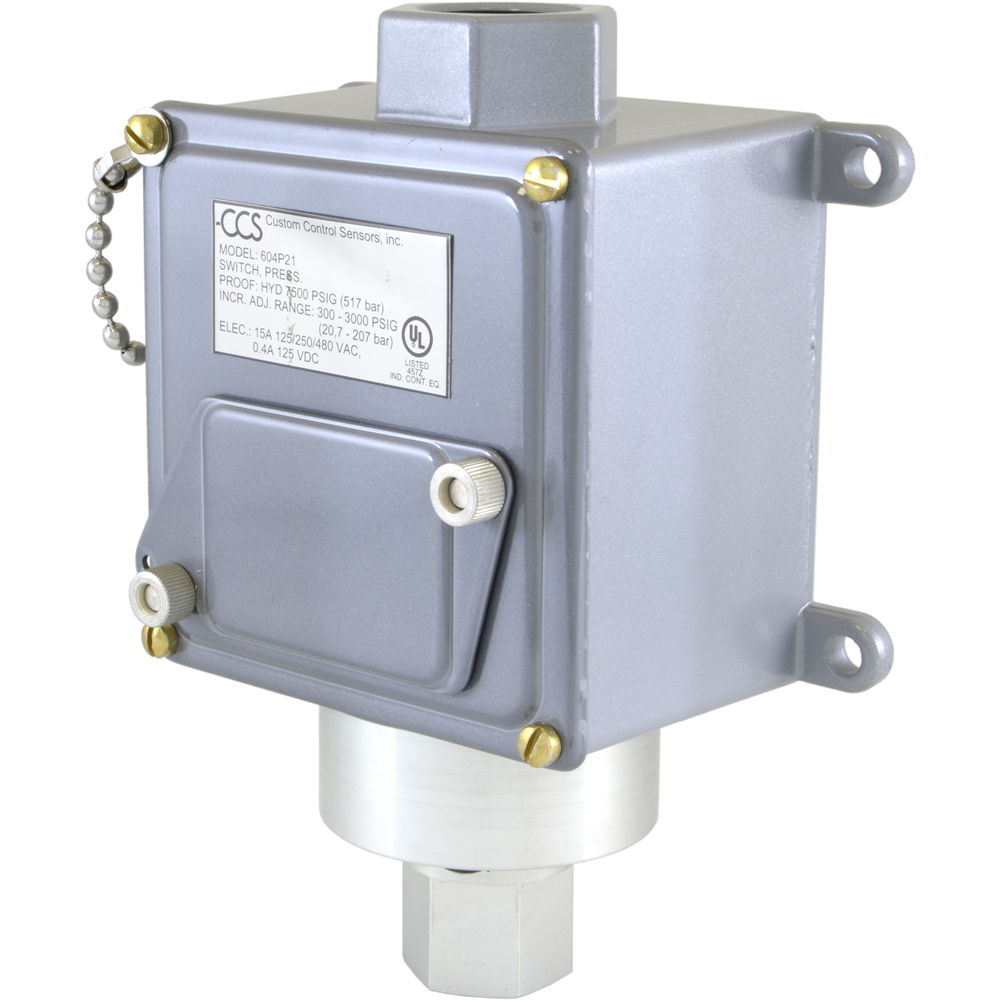

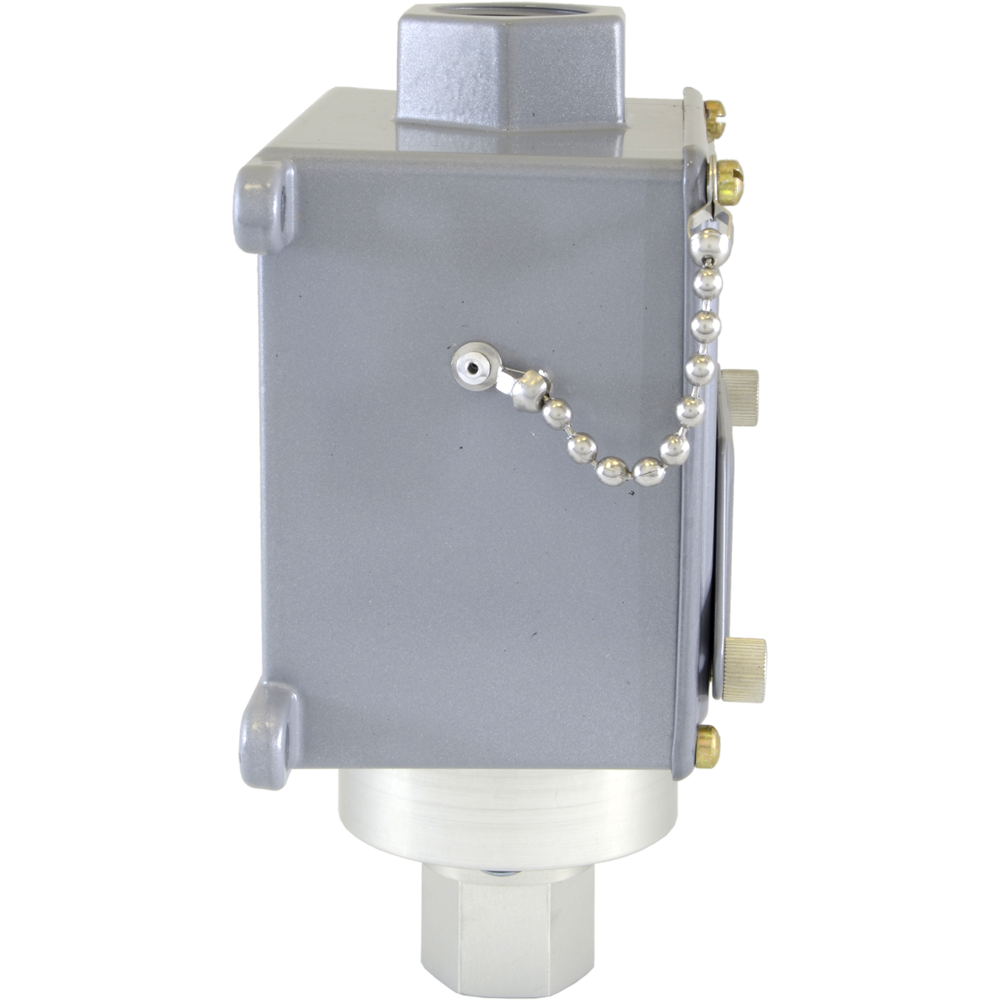

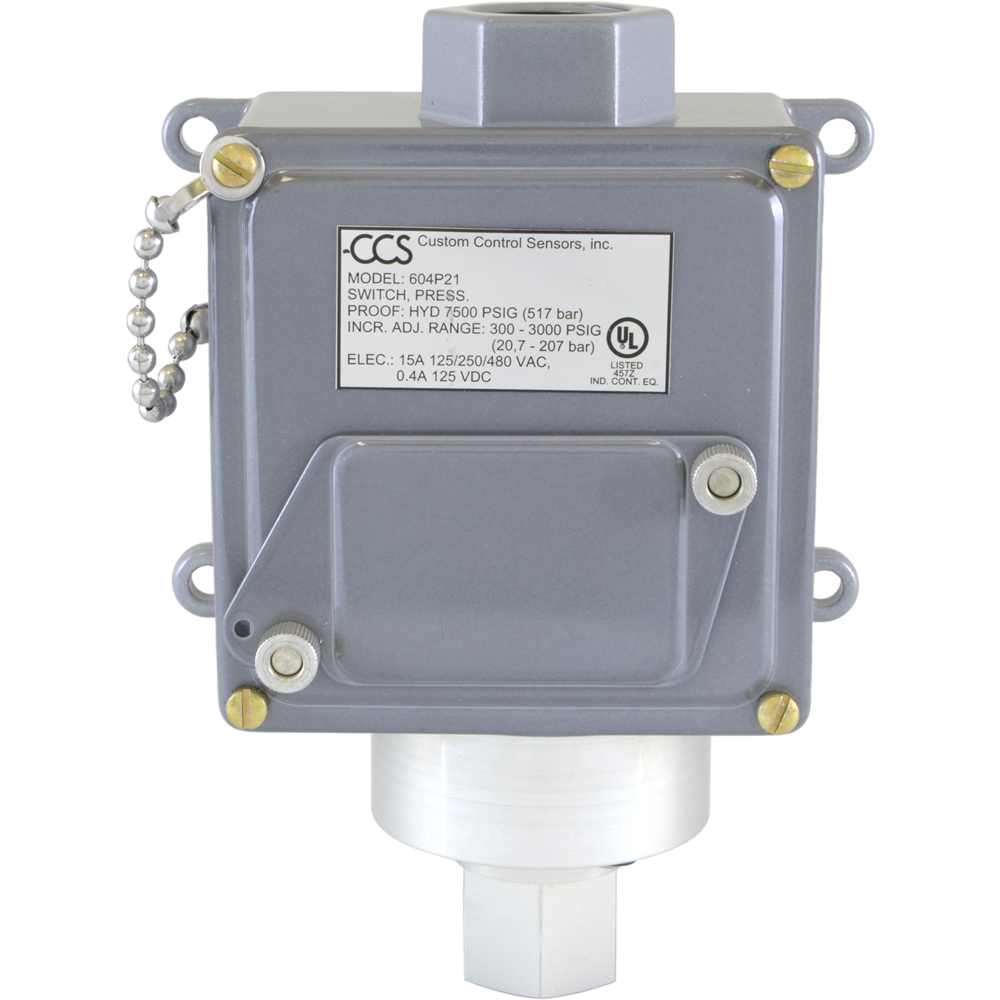

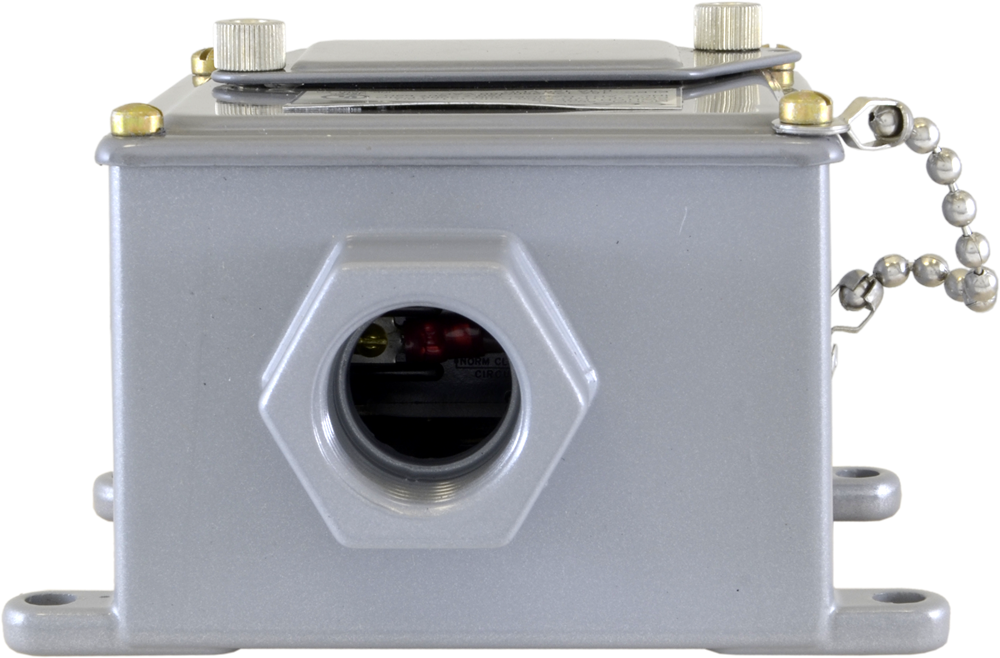

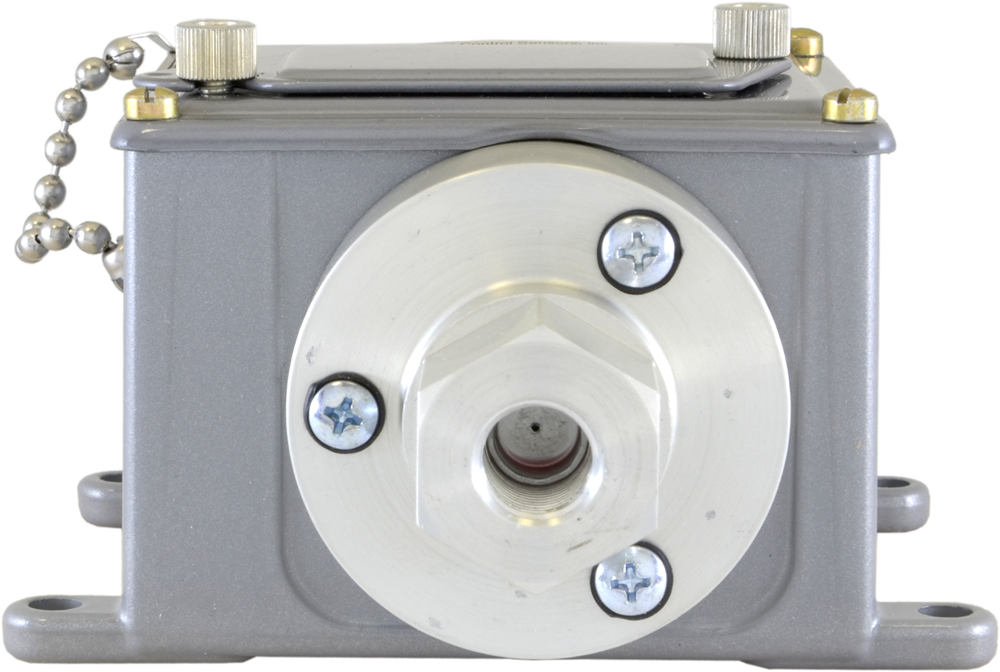

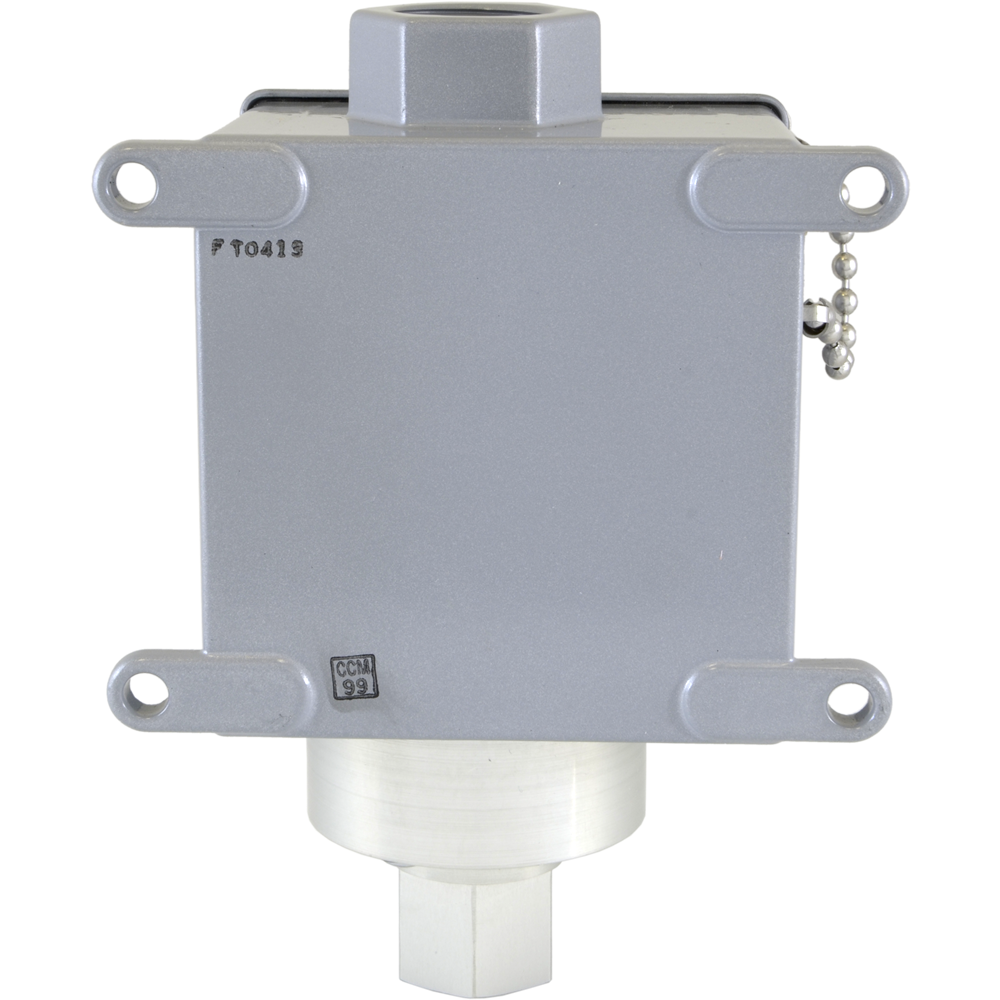

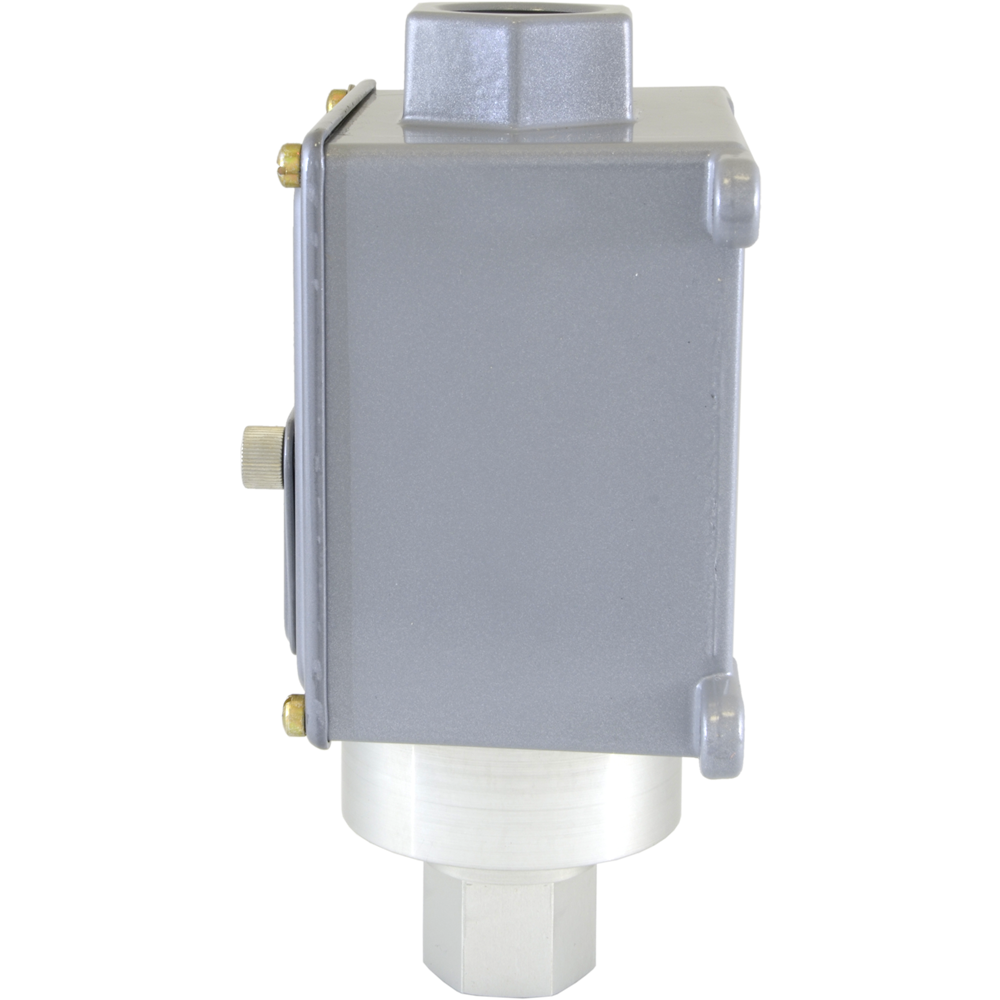

604P Series Pressure Switch

Brand: Custom Control Sensors
  • Adjustable Set Point Range:
    • Increasing: 20 to 5000 psig, 137.9 to 34,473.7 kPa, 1.4 to 345 bar
    • Decreasing: 10 to 4520 psig, 69.0 to 31,164.3 kPa, 0.68 to 312 bar
  • Deadband: Approximately 10 to 480 psi, 69.0 to 3309.4 kPa, 0.68 to 33.1 bar
  • System Pressure (Maximum): 2000 to 7500 psig, 13,789.51 to 51,710.6 kPa, 138 to 517 bar
  • Proof Pressure: 3000 to 10,000 psig, 20,684.27 to 68,947.5 kPa, 690 bar
  • Wetted Materials:
    • Pressure Port: 1/4" Female NPT Aluminum
    • Piston: 400 Stainless Steel
    • O-Ring: Buna N, Teflon
  • Relay: SPDT or DPDT
  • UL, CRN, CE Mark, General Purpose
show more
Images are representations only.
  • Adjustable Set Point Range:
    • Increasing: 20 to 5000 psig, 137.9 to 34,473.7 kPa, 1.4 to 345 bar
    • Decreasing: 10 to 4520 psig, 69.0 to 31,164.3 kPa, 0.68 to 312 bar
  • Deadband: Approximately 10 to 480 psi, 69.0 to 3309.4 kPa, 0.68 to 33.1 bar
  • System Pressure (Maximum): 2000 to 7500 psig, 13,789.51 to 51,710.6 kPa, 138 to 517 bar
  • Proof Pressure: 3000 to 10,000 psig, 20,684.27 to 68,947.5 kPa, 690 bar
  • Wetted Materials:
    • Pressure Port: 1/4" Female NPT Aluminum
    • Piston: 400 Stainless Steel
    • O-Ring: Buna N, Teflon
  • Relay: SPDT or DPDT
  • UL, CRN, CE Mark, General Purpose
20 models matching criteria
604P12
CCS DUAL-SNAP Piston Switch, Non-Hazardous Area, 1/4" NPT Aluminum Port, 400 SST Piston, Buna-N O-Ring, Teflon O-Ring, SPDT, Approvals: UL, CE, CRN, CCC, EAC
17 In Stock
$250.87USD
$8.27 Shipping
604P21
CCS DUAL-SNAP Piston Switch, Non-Hazardous Area, 1/4" NPT Aluminum Port, 400 SST Piston, Buna-N O-Ring, Teflon O-Ring, SPDT, Approvals: UL, CE, CRN, CCC, EAC
6 In Stock
$239.28USD
$8.27 Shipping
604P15
CCS DUAL-SNAP Piston Switch, Non-Hazardous Area, 1/4" NPT Aluminum Port, 400 SST Piston, Buna-N O-Ring, Teflon O-Ring, SPDT, Approvals: UL, CE, CRN, CCC, EAC
3 In Stock
$239.28USD
$8.27 Shipping
604PM15
CCS DUAL-SNAP Piston Switch, Non-Hazardous Area, 1/4" NPT Aluminum Port, 400 SST Piston, Buna-N O-Ring, Teflon O-Ring, DPDT, Approvals: UL, CE, CRN, CCC, EAC
1 In Stock
$447.10USD
$8.27 Shipping
604P31
CCS DUAL-SNAP Piston Switch, Non-Hazardous Area, 1/4" NPT Aluminum Port, 400 SST Piston, Buna-N O-Ring, Teflon O-Ring, SPDT, Approvals: UL, CE, CRN, CCC, EAC
5 - 7 weeks
$721.15USD
$8.27 Shipping
604PJ21
CCS DUAL-SNAP Piston Switch, Non-Hazardous Area, 1/4" NPT Aluminum Port, 400 SST Piston, Buna-N O-Ring, Teflon O-Ring, SPDT, Approvals: UL, CE, CSA, CRN, CCC, EAC
5 - 7 weeks
$971.20USD
$8.27 Shipping
604PM12
CCS DUAL-SNAP Piston Switch, Non-Hazardous Area, 1/4" NPT Aluminum Port, 400 SST Piston, Buna-N O-Ring, Teflon O-Ring, DPDT, Approvals: UL, CE, CRN, CCC, EAC
5 - 7 weeks
$995.21USD
$8.27 Shipping
604PM21
CCS DUAL-SNAP Piston Switch, Non-Hazardous Area, 1/4" NPT Aluminum Port, 400 SST Piston, Buna-N O-Ring, Teflon O-Ring, DPDT, Approvals: UL, CE, CRN, CCC, EAC
5 - 7 weeks
$995.21USD
$8.27 Shipping
604PM31
CCS DUAL-SNAP Piston Switch, Non-Hazardous Area, 1/4" NPT Aluminum Port, 400 SST Piston, Buna-N O-Ring, Teflon O-Ring, DPDT, Approvals: UL, CE, CRN, CCC, EAC
5 - 7 weeks
$995.21USD
$8.27 Shipping
604PA15
CCS DUAL-SNAP Piston Switch, Non-Hazardous Area, 1/4" NPT Aluminum Port, 400 SST Piston, Viton, Teflon
5 - 7 weeks
$1,081.32USD
$8.27 Shipping
604PJ15
CCS DUAL-SNAP Piston Switch, Non-Hazardous Area, 1/4" NPT Aluminum Port, 400 SST Piston, Buna-N O-Ring, Teflon O-Ring, SPDT, Approvals: UL, CE, CSA, CRN, CCC, EAC
5 - 7 weeks
$1,117.75USD
$8.27 Shipping
604PX21
CCS DUAL-SNAP Piston Switch, Non-Hazardous Area, 1/4" NPT Aluminum Port, 400 SST Piston, Buna-N O-Ring, Teflon O-Ring, Double Break, UL, CE, CRN, CCC, EAC
5 - 7 weeks
$1,338.81USD
$8.27 Shipping
604P692
CCS DUAL-SNAP Piston Switch, Non-Hazardous Area, 1/4" NPT Aluminum Port, 400 SST Piston, Special Piston, Restrictor & Seal
9 - 11 weeks
604P773
CCS DUAL-SNAP Piston Switch, Non-Hazardous Area, 1/4" NPT Aluminum Port, 400 SST Piston, Buna-N O-Ring, Teflon O-Ring
5 - 7 weeks
604PJ12
CCS DUAL-SNAP Piston Switch, Non-Hazardous Area, 1/4" NPT Aluminum Port, 400 SST Piston, Buna-N O-Ring, Teflon O-Ring, SPDT, Approvals: UL, CE, CSA, CRN, CCC, EAC
5 - 7 weeks
604PJ12-7038
CCS DUAL-SNAP Piston Switch, Non-Hazardous Area, 1/4" NPT SST Port & Piston, Buna-N O-Ring, Teflon O-Ring, SPDT, Approvals: UL, CE, CSA, CRN, CCC, EAC
5 - 7 weeks
604PJ21-7038
CCS DUAL-SNAP Piston Switch, Non-Hazardous Area, 1/4" NPT SST Port & Piston, Buna-N O-Ring, Teflon O-Ring, SPDT, Approvals: UL, CE, CSA, CRN, CCC, EAC
5 - 7 weeks
604PJ31
CCS DUAL-SNAP Piston Switch, Non-Hazardous Area, 1/4" NPT Aluminum Port, 400 SST Piston, Buna-N O-Ring, Teflon O-Ring, SPDT, Approvals: UL, CE, CSA, CRN, CCC, EAC
5 - 7 weeks
604PM21-7038
CCS DUAL-SNAP Piston Switch, Non-Hazardous Area, 1/4" NPT SST Port & Piston, Buna-N O-Ring, Teflon O-Ring, DPDT, Approvals: UL, CE, CRN, CCC, EAC
5 - 7 weeks
604PX12
CCS DUAL-SNAP Piston Switch, Non-Hazardous Area, 1/4" NPT Aluminum Port, 400 SST Piston, Buna-N O-Ring, Teflon O-Ring, Double Break, UL, CE, CRN, CCC, EAC
5 - 7 weeks

604P

Base Model

Process Connection

O-Ring

Output

Output

Output

Output

Electrical Contacts

Manual Reset

This Manual Reset option allows for automatic actuation on increasing pressure.

Agency Approvals

Paint
