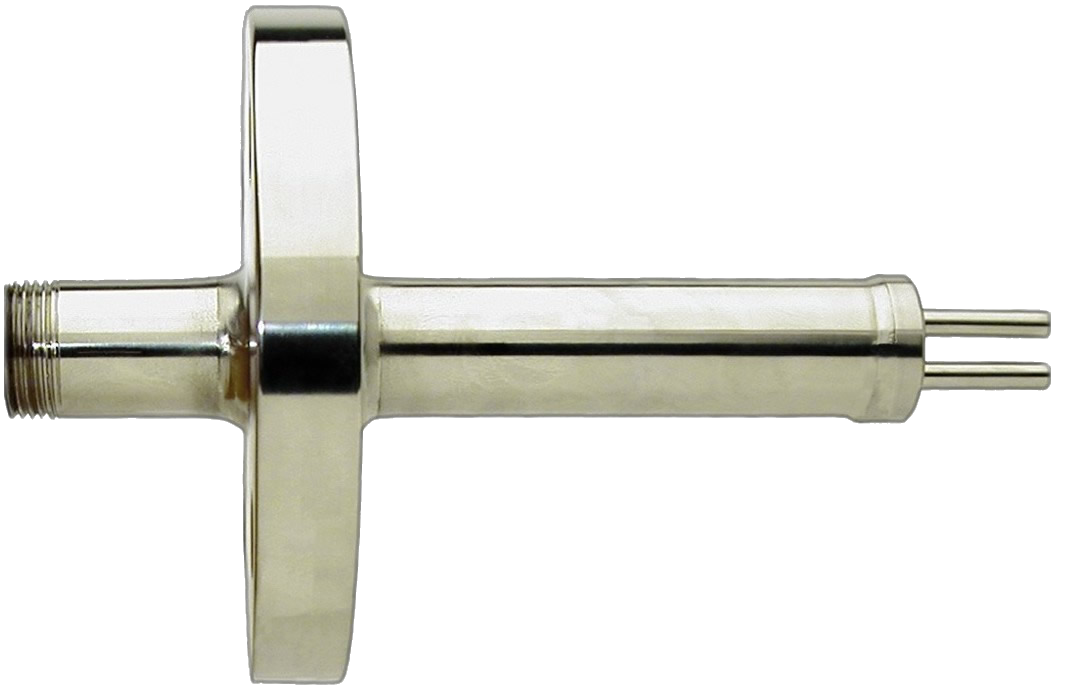

Kayden CLASSIC® 812 Spare Sensor, Flanged, P12 Series

Brand: Kayden Instruments
  • Replacement Sensor for Kayden CLASSIC 812 Series
  • Process Connection - Flanged
    • Raised Face or RTJ (Ring-Type Joint)
    • 1-1/2", 2", 3", 4"
    • ANSI Rating: 150#, 300#, 600#
  • Insertion 'U' Length
    • Available in 1/2" or 1 cm increments
    • Min. 2.5" to Max. 120" (6.0 - 305 cm)
  • Temperature Range (Sensor)
    • -45° to 200° C, -50° to 392° F
  • Adjustable Set Point Range
    • 0-254 feet/s, 0-77 meters/s
  • Materials of Construction (Sensor and Flange)
    • 316/316L Stainless Steel
    • Other Metals Available
  • Sensor Connection
    • Molex 8-Pin
  • Approvals (with Classic 812 Switch)
    • UL, FM, CSA, CRN, Single Seal, NACE
show more
Images are representations only.
  • Replacement Sensor for Kayden CLASSIC 812 Series
  • Process Connection - Flanged
    • Raised Face or RTJ (Ring-Type Joint)
    • 1-1/2", 2", 3", 4"
    • ANSI Rating: 150#, 300#, 600#
  • Insertion 'U' Length
    • Available in 1/2" or 1 cm increments
    • Min. 2.5" to Max. 120" (6.0 - 305 cm)
  • Temperature Range (Sensor)
    • -45° to 200° C, -50° to 392° F
  • Adjustable Set Point Range
    • 0-254 feet/s, 0-77 meters/s
  • Materials of Construction (Sensor and Flange)
    • 316/316L Stainless Steel
    • Other Metals Available
  • Sensor Connection
    • Molex 8-Pin
  • Approvals (with Classic 812 Switch)
    • UL, FM, CSA, CRN, Single Seal, NACE
198 models matching criteria
P12-RAA121A-I0025-M
KAYDEN® CLASSIC® 812 Series Thermal Flow, Level, Interface Sensor, 1" 150# RF High-Hub SST Flange, 2.5"U Length, 316 SST Sensor
In Stock 2 - 4 weeks
$1,000.00USD
$9.99 Shipping
P12-RAA121A-I0030-M
KAYDEN® CLASSIC® 812 Series Thermal Flow, Level, Interface Sensor, 1" 150# RF High-Hub SST Flange, 3"U Length, 316 SST Sensor
In Stock 2 - 4 weeks
$1,018.00USD
$9.99 Shipping
P12-RAA131A-I0060-M
KAYDEN® CLASSIC® 812 Series Thermal Flow, Level, Interface Sensor, 1-1/2" 150# RF High-Hub SST Flange, 6"U Length, 316 SST Sensor
In Stock 2 - 4 weeks
$1,028.00USD
$9.99 Shipping
P12-RAA121A-I0040-M
KAYDEN® CLASSIC® 812 Series Thermal Flow, Level, Interface Sensor, 1" 150# RF High-Hub SST Flange, 4"U Length, 316 SST Sensor
In Stock 2 - 4 weeks
$1,053.00USD
$9.99 Shipping
P12-RAA131A-I0025-M
KAYDEN® CLASSIC® 812 Series Thermal Flow, Level, Interface Sensor, 1-1/2" 150# RF High-Hub SST Flange, 2.5"U Length, 316 SST Sensor
In Stock 2 - 4 weeks
$1,055.00USD
$9.99 Shipping
P12-RAA121A-I0050-M
KAYDEN® CLASSIC® 812 Series Thermal Flow, Level, Interface Sensor, 1" 150# RF High-Hub SST Flange, 5"U Length, 316 SST Sensor
In Stock 2 - 4 weeks
$1,088.00USD
$9.99 Shipping
P12-RAA121A-I0055-M
KAYDEN® CLASSIC® 812 Series Thermal Flow, Level, Interface Sensor, 1" 150# RF High-Hub SST Flange, 5.5"U Length, 316 SST Sensor
In Stock 2 - 4 weeks
$1,105.00USD
$9.99 Shipping
P12-RAA131A-I0040-M
KAYDEN® CLASSIC® 812 Series Thermal Flow, Level, Interface Sensor, 1-1/2" 150# RF High-Hub SST Flange, 4"U Length, 316 SST Sensor
In Stock 2 - 4 weeks
$1,108.00USD
$9.99 Shipping
P12-RAA141A-I0030-M
KAYDEN® CLASSIC® 812 Series Thermal Flow, Level, Interface Sensor, 2" 150# RF SST Flange, 2.5"U Length, 316 SST Sensor
In Stock 2 - 4 weeks
$1,118.00USD
$9.99 Shipping
P12-RAA121A-I0060-M
KAYDEN® CLASSIC® 812 Series Thermal Flow, Level, Interface Sensor, 1" 150# RF High-Hub SST Flange, 6"U Length, 316 SST Sensor
In Stock 2 - 4 weeks
$1,123.00USD
$9.99 Shipping
P12-RAA131A-I0045-M
KAYDEN® CLASSIC® 812 Series Thermal Flow, Level, Interface Sensor, 1-1/2" 150# RF High-Hub SST Flange, 4.5"U Length, 316 SST Sensor
In Stock 2 - 4 weeks
$1,125.00USD
$9.99 Shipping
P12-RAA141A-I0035-M
KAYDEN® CLASSIC® 812 Series Thermal Flow, Level, Interface Sensor, 2" 150# RF SST Flange, 3.5"U Length, 316 SST Sensor
In Stock 2 - 4 weeks
$1,135.00USD
$9.99 Shipping
P12-RAA121A-I0065-M
KAYDEN® CLASSIC® 812 Series Thermal Flow, Level, Interface Sensor, 1" 150# RF High-Hub SST Flange, 6.5"U Length, 316 SST Sensor
In Stock 2 - 4 weeks
$1,140.00USD
$9.99 Shipping
P12-RAA141A-I0040-M
KAYDEN® CLASSIC® 812 Series Thermal Flow, Level, Interface Sensor, 2" 150# RF SST Flange, 4"U Length, 316 SST Sensor
In Stock 2 - 4 weeks
$1,153.00USD
$9.99 Shipping
P12-RAA141A-M0100-M
KAYDEN® CLASSIC® 812 Series Thermal Flow, Level, Interface Sensor, 2" 150# RF SST Flange, 10 cm U Length, 316 SST Sensor
In Stock 2 - 4 weeks
$1,153.00USD
$9.99 Shipping
P12-RAA122A-I0040-M
KAYDEN® CLASSIC® 812 Series Thermal Flow, Level, Interface Sensor, 1" 300# RF High-Hub SST Flange, 4"U Length, 316 SST Sensor
In Stock 2 - 4 weeks
$1,158.00USD
$9.99 Shipping
P12-RAA151A-I0030-M
KAYDEN® CLASSIC® 812 Series Thermal Flow, Level, Interface Sensor, 3" 150# RF SST Flange, 3"U Length, 316 SST Sensor
In Stock 2 - 4 weeks
$1,158.00USD
$9.99 Shipping
P12-RAA131A-I0055-M
KAYDEN® CLASSIC® 812 Series Thermal Flow, Level, Interface Sensor, 1-1/2" 150# RF High-Hub SST Flange, 5.5"U Length, 316 SST Sensor
In Stock 2 - 4 weeks
$1,160.00USD
$9.99 Shipping
P12-RAA141A-I0045-M
KAYDEN® CLASSIC® 812 Series Thermal Flow, Level, Interface Sensor, 2" 150# RF SST Flange, 4.5"U Length, 316 SST Sensor
In Stock 2 - 4 weeks
$1,170.00USD
$9.99 Shipping
P12-RAA141A-I0050-M
KAYDEN® CLASSIC® 812 Series Thermal Flow, Level, Interface Sensor, 2" 150# RF SST Flange, 5"U Length, 316 SST Sensor
In Stock 2 - 4 weeks
$1,188.00USD
$9.99 Shipping
P12-RAA121A-I0080-M
KAYDEN® CLASSIC® 812 Series Thermal Flow, Level, Interface Sensor, 1" 150# RF High-Hub SST Flange, 8"U Length, 316 SST Sensor
In Stock 2 - 4 weeks
$1,193.00USD
$9.99 Shipping
P12-RAA123A-I0040-M
KAYDEN® CLASSIC® 812 Series Thermal Flow, Level, Interface Sensor, 1" 600# RF High-Hub SST Flange, 4"U Length, 316 SST Sensor
In Stock 2 - 4 weeks
$1,193.00USD
$9.99 Shipping
P12-RAA151A-I0040-M
KAYDEN® CLASSIC® 812 Series Thermal Flow, Level, Interface Sensor, 3" 150# RF SST Flange, 4"U Length, 316 SST Sensor
In Stock 2 - 4 weeks
$1,193.00USD
$9.99 Shipping
P12-RAA131A-I0065-M
KAYDEN® CLASSIC® 812 Series Thermal Flow, Level, Interface Sensor, 1-1/2" 150# RF High-Hub SST Flange, 6.5"U Length, 316 SST Sensor
In Stock 2 - 4 weeks
$1,195.00USD
$9.99 Shipping
P12-RAA141A-I0055-M
KAYDEN® CLASSIC® 812 Series Thermal Flow, Level, Interface Sensor, 2" 150# RF SST Flange, 5.5"U Length, 316 SST Sensor
In Stock 2 - 4 weeks
$1,205.00USD
$9.99 Shipping

P12 CLASSIC® 812 Series Sensor

Sensor Material

Flange Material

Process Connection Flange Type

Process Connection Flange Type

Process Connection Flange Type

Flange Size & ANSI Rating

Select your desired ANSI size and pressure class.

Flange Size & ANSI Rating

Select your desired ANSI size and pressure class.

Flange Size & ANSI Rating

Select your desired ANSI size and pressure class.

Flange Size & ANSI Rating

Select your desired ANSI size and pressure class.

Flange Size & ANSI Rating

Select your desired ANSI size and pressure class.

Flange Size & ANSI Rating

Select your desired ANSI size and pressure class.

Insertion 'U' Length

Insertion 'U' Length

Insertion 'U' Length

Sensor Connection Type

Agency Approvals

Specifications

Approvals & Certifications

  • CRN - Canadian Registration Numbers 1", 1-1/2” Flanges , Approved for All Provinces & Territories Replacement Sensor for Kayden Classic 812-RAA Series

Flange Material

  • 316, 316L Stainless Steel
  • Other Exotic Metals Available

Flange Size - 1" (DN25)

  • 1" (DN25) - 150#
  • 1" (DN25) - 1500#
  • 1" (DN25) - 300#
  • 1" (DN25) - 600#
  • 1" (DN25) - 900#

Flange Size - 10" (DN250)

  • 10" (DN250) - 150#
  • 10" (DN250) - 1500#
  • 10" (DN250) - 300#
  • 10" (DN250) - 600#
  • 10" (DN250) - 900#

Flange Size - 1-1/2" (DN40)

  • 1-1/2" (DN40) - 150#
  • 1-1/2" (DN40) - 1500#
  • 1-1/2" (DN40) - 300#
  • 1-1/2" (DN40) - 600#
  • 1-1/2" (DN40) - 900#

Flange Size - 2" (DN50)

  • 2" (DN50) - 150#
  • 2" (DN50) - 1500#
  • 2" (DN50) - 300#
  • 2" (DN50) - 600#
  • 2" (DN50) - 900#

Flange Size - 3" (DN80)

  • 3" (DN80) - 150#
  • 3" (DN80) - 1500#
  • 3" (DN80) - 300#
  • 3" (DN80) - 600#
  • 3" (DN80) - 900#

Flange Size - 4" (DN100)

  • 4" (DN100) - 150#
  • 4" (DN100) - 1500#
  • 4" (DN100) - 300#
  • 4" (DN100) - 600#
  • 4" (DN100) - 900#

Flange Size - 5" (DN125)

  • 5" (DN125) - 150#
  • 5" (DN125) - 1500#
  • 5" (DN125) - 300#
  • 5" (DN125) - 600#
  • 5" (DN125) - 900#

Flange Size - 6" (DN150)

  • 6" (DN150) - 150#
  • 6" (DN150) - 1500#
  • 6" (DN150) - 300#
  • 6" (DN150) - 600#
  • 6" (DN150) - 900#

Flange Size - 8" (DN200)

  • 8" (DN200) - 150#
  • 8" (DN200) - 1500#
  • 8" (DN200) - 300#
  • 8" (DN200) - 600#
  • 8" (DN200) - 900#

Flange Type

  • Raised Face (RF)
  • RTJ - Ring Typical Joint

Insertion 'U' Length

  • Custom 'U' Lengths 2.5" to 120" (6.4 cm to 305 cm) Available in 1/2" (1.0 cm) Increments.

Operating Pressure - Sensor

  • Maximum

Operating Temperature - Sensor

  • -45° to 200° C (-50° to 392° F)

Response Time

  • Approximately 0.5 to 30 seconds

Sensor, Probe Connection Type

  • Molex 8-Pin

Sensor, Probe Style

  • Insertion

Wetted Materials

  • 316, 316L Stainless Steel
  • Other Metals Available
