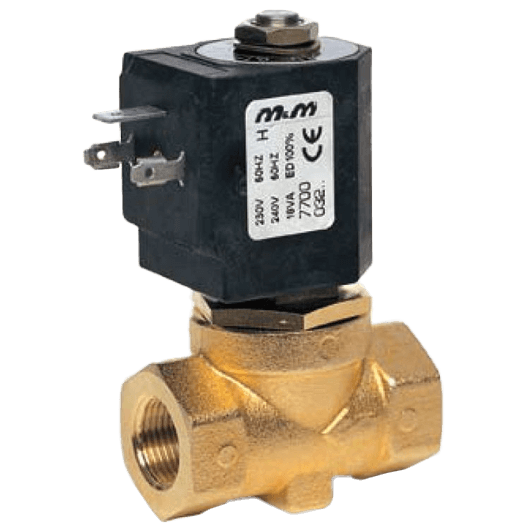

LD266 2/2-Way Pilot-Operated Latching Solenoid Valve

Brand: M&M International
Media: Water, Oil, Air
Media Temperature: -10° to 90° C (14° to 194° F)
Ambient temperature: -10° to 50° C (14° to 122° F)
Body Material: Brass (CW617N EN 12165)
Operator Material: Stainless Steel
Operator Seal Material: Foodgrade FKM
Diaphragm Material: NBR
Coil Power: 6 Vdc
Protection Class: IP 65 (With Connector and Gasket)
show more
Images are representations only.
Media: Water, Oil, Air
Media Temperature: -10° to 90° C (14° to 194° F)
Ambient temperature: -10° to 50° C (14° to 122° F)
Body Material: Brass (CW617N EN 12165)
Operator Material: Stainless Steel
Operator Seal Material: Foodgrade FKM
Diaphragm Material: NBR
Coil Power: 6 Vdc
Protection Class: IP 65 (With Connector and Gasket)

Specifications

Ambient Temperature Range

  • -10° to 50° C (15° to 122° F)

Approvals & Certifications

  • CE

BSP Connection

  • G 1/2" Female

Enclosure, Body Material

  • Brass (CW617N EN 12165)

Environmental Protection

  • IP65 (with Connector & Gasket)

Materials of Construction

  • Operator: Stainless Steel

Media

  • Air
  • Oil
  • Water

Power Requirement

  • Coil: 6 Vdc

Process Temperature

  • -10° to 90° C (14° to 194° F)

Seat/Seal Material

  • Seal: EPDM, Maximum
  • Seal: Food Grade FKM, Maximum
