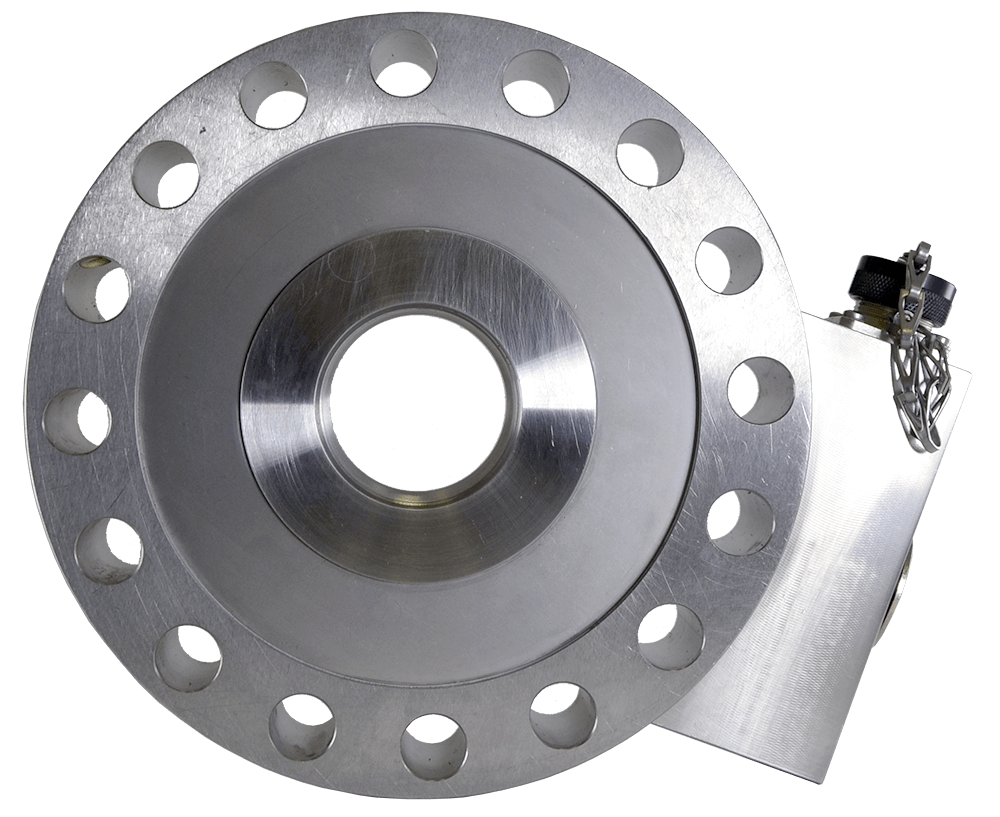

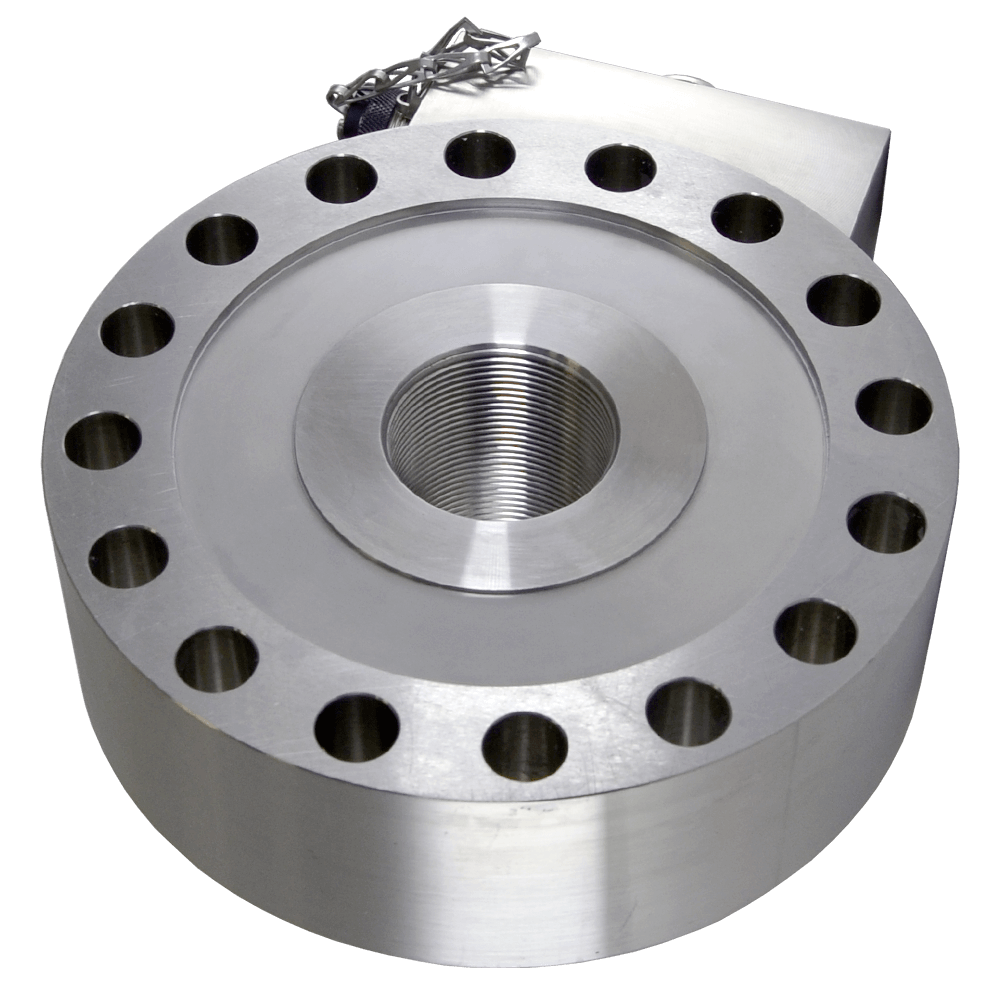

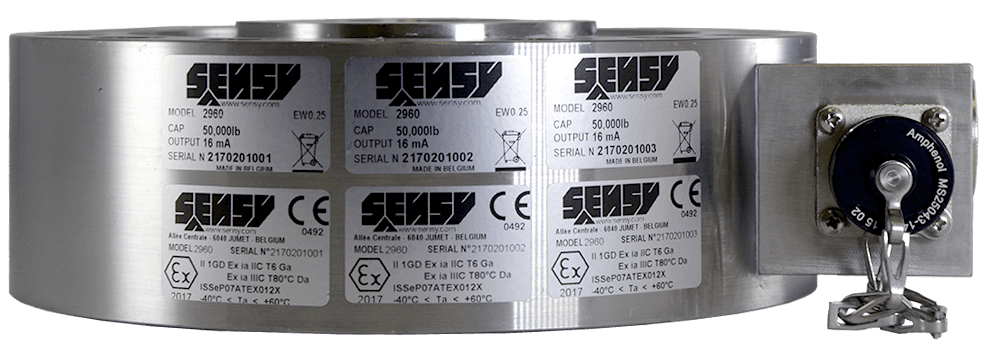

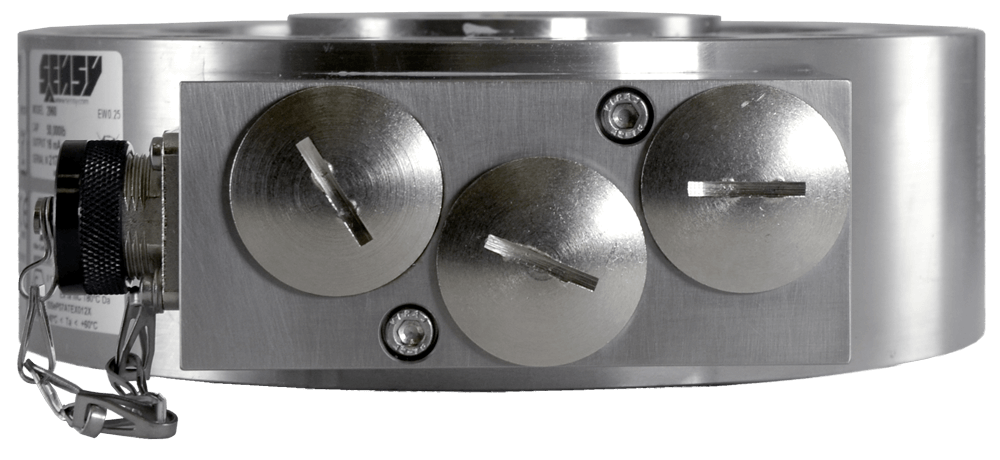

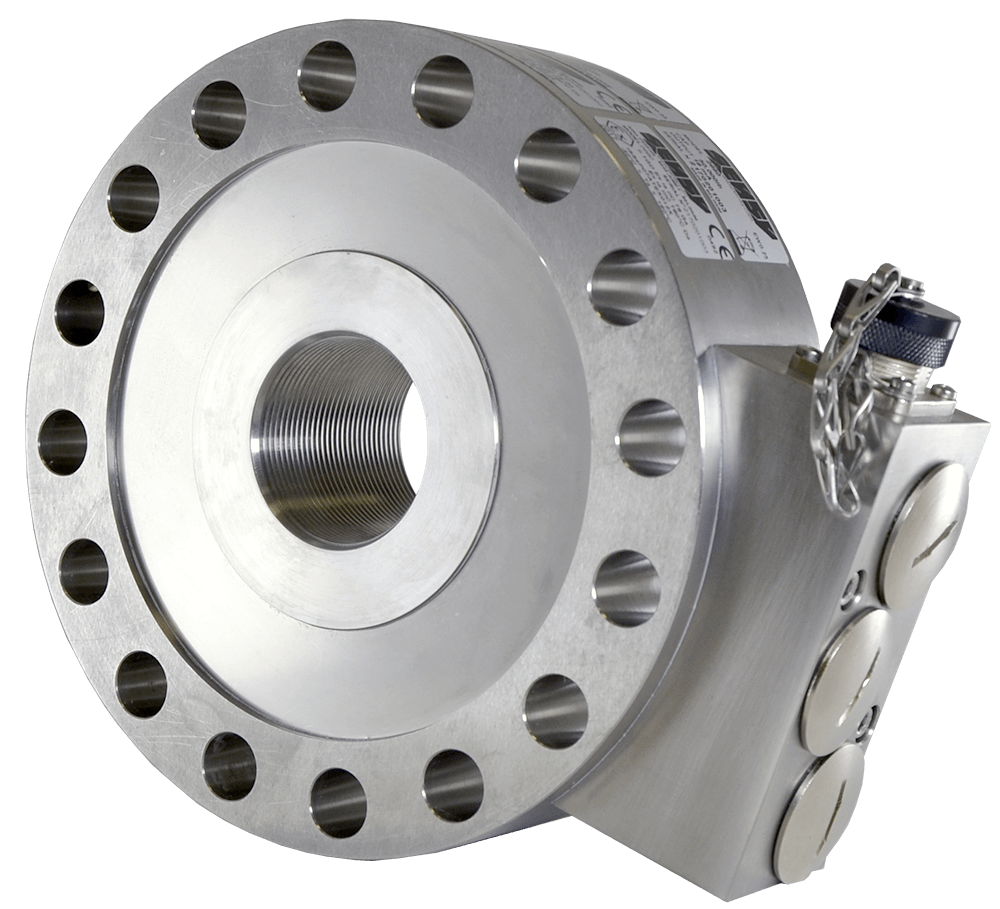

2960/2962/2965 Low Profile (Pancake) Load Cell

Brand: Sensy S.A.
Request Information
Favorite
Universal tension and compression load cells for industrial force measurements.
Features
  • Flat design
  • High stiffness – low deflection
  • Highly resistant to transverse forces
  • Protection IP 66
  • Complete range of mounting accessories available
  • Material: stainless steel (2960), Aluminum (2962), alloy steel (2965)
  • Available options (non exhaustive list):
    • High service temperature (up to 180° C)
    • Fatigue resistant
    • Amplified output (V or mA) and digital output signal (RS-232C, RS-485, USB)
    • ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80° C Da
show more
Universal tension and compression load cells for industrial force measurements.
Features
  • Flat design
  • High stiffness – low deflection
  • Highly resistant to transverse forces
  • Protection IP 66
  • Complete range of mounting accessories available
  • Material: stainless steel (2960), Aluminum (2962), alloy steel (2965)
  • Available options (non exhaustive list):
    • High service temperature (up to 180° C)
    • Fatigue resistant
    • Amplified output (V or mA) and digital output signal (RS-232C, RS-485, USB)
    • ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80° C Da
Close

Displaying prices & availability for Virginia, United States in USD. Change location or currency

58 models matching criteria
2960-20KN-0.1
SENSY Tension & Compression Load Cell, Capacity 20kN, 300% Breaking Load, IP66, CSA View More
  • Load Cell Capacity: 30,000lbf
  • Construction: Stainless Steel
  • Breaking Load: 300%
  • Maximum Operating Load: 150%
  • Accuracy Class: 0.1%
  • Cable Length: 6m
  • Output Signal (Sensitivity): 16 mA
  • Protection: IP66
  • Included Options:
    • EX-C6-ROND-CSA
      • 4-20mA output, Exi, 2 wires, rond case
      • CSA certified by SIRA

    • K-CABLE PET 4X0.25
      • Polyethylene cable IGUS 4 conductors

    • S-CAPACITE SPECIALE
      • Capacity 30,000lbs

    • S-SPECIAL
      • Bore 1/4"


8 - 10 weeks
2965-200KN-0.25
SENSY Tension & Compression Load Cell, Capacity 200kN, 300% Breaking Load, IP66 View More
  • Load Cell Capacity: 200 kN
  • Construction: Nickelplated Steel
  • Breaking Load: 300%
  • Maximum Operating Load: 150%
  • Accuracy Class: 0.25
  • Cable Length: 6m
  • Output Signal (Sensitivity): ±2mV/V
  • Protection: IP66
  • CAble Length: 6 m
Out of Stock
2712-10KN-0.1
SENSY Load Cell, 2712, 10 kN, 0.1 Accuracy, 300% Breaking Load, 3m Cable, IP 65. Output 2.038 mV/V View More
  • Tension and Compression Load Cell
  • Capacity: 10kN
  • Accuracy Class: 0.1%
  • Breaking Load: 300%
  • Maximum Operating Load: 125%
  • Cable Length: 3m
  • Protection: IP65
  • Output Signal 2.038 mV/V
2 - 5 weeks
Non-Cancellable / Non-Refundable
2960-FORC000135 -10°C
SENSY Compression Pancake Cell, 50klb Capacity, 300% Breaking Load, Integrated Load Button, IP66 View More
  • Load Cell Capacity: 50klb
  • Breaking Load: 300%
  • Maximum Operating Load: 150%
  • Accuracy Class: 0.25%
  • Protection: IP66
  • Output Signal (sensitivity): 16 mA
  • Integrated Option:
    • ​Integrated load button

  • Included Options:
    • B-AMPHE No Cable: Amphenol MS3102E-14S-6P - no cable
    • EX-C6-CSA: 4-20mA output, 2-wires. CSA CA/US Class 1 Div1 Certified
    • W-BT-40 CP-10: TR -40°C Comp. -10°C

8 - 9 weeks
Non-Cancellable / Non-Refundable
2960-FORC000135 -40°C
SENSY Compression Pancake Cell, 50klb Capacity, 300% Breaking Load, Integrated Load Button, IP66 View More
  • Load Cell Capacity: 50klb
  • Breaking Load: 300%
  • Maximum Operating Load: 150%
  • Accuracy Class: 0.25%
  • Protection: IP66
  • Output Signal (sensitivity): 16 mA
  • Integrated Option:
    • ​Integrated load button

  • Included Options:
    • B-AMPHE No Cable: Amphenol  MS3102E-14S-6P - no cable
    • EX-C6-CSA: 4-20mA output, 2-wires. CSA CA/US Class 1 Div1 Certified
    • W-BT-40 CP-40: TR -40°C comp. -40°C

8 - 9 weeks
Non-Cancellable / Non-Refundable
2960-FORC000135-10 NO CABLE
SENSY Compression Pancake Cell, 50klb Capacity, 300% Breaking Load, Integrated Load Button, IP66 View More
  • Load Cell Capacity: 50klb
  • Breaking Load: 300%
  • Maximum Operating Load: 150%
  • Accuracy Class: 0.25%
  • Protection: IP66
  • Output Signal (sensitivity): 16 mA
  • Integrated Option:
    • ​Integrated load button

  • Included Options:
    • B-AMPHE No Cable: Amphenol  MS3102E-14S-6P - no cable
    • EX-C6-CSA: 4-20mA output, 2-wires. CSA CA/US Class 1 Div1 Certified
    • W-BT-40 CP-10: TR -40°C Comp. -10°C

8 - 9 weeks
Non-Cancellable / Non-Refundable
2960-FORC000135-40 NO CABLE
SENSY Compression Pancake Cell, 50klb Capacity, 300% Breaking Load, Integrated Load Button, IP66 View More
  • Load Cell Capacity: 50klb
  • Breaking Load: 300%
  • Maximum Operating Load: 150%
  • Accuracy Class: 0.25%
  • Protection: IP66
  • Output Signal (sensitivity): 16 mA
  • Integrated Option:
    • ​Integrated load button

  • Included Options:
    • B-AMPHE No Cable: Amphenol MS3102E-14S-6P - no cable
    • EX-C6-CSA: 4-20mA output, 2-wires. CSA CA/US Class 1 Div1 Certified
    • W-BT-40 CP-40: TR -40°C Comp. -40°C

8 - 9 weeks
Non-Cancellable / Non-Refundable
2960-FORC000161
SENSY Annular Cell, 5000 lbs Capacity, 1" 1/4 bore, 300% Breaking Load, 4-20mA output, CSA View More
  • Load Cell Capacity: 5000 lbs
  • Breaking Load: 300%
  • Maximum Operating Load: 150%
  • Accuracy Class: 0.25%
  • Protection: IP66
  • Output Signal (sensitivity): 16 mA
  • Cable Length: 6m
  • Integrated Options:
    • EX-C6-ROND-CSA
      • 4-20mA output, Exi, 2 wires, rond case
      • CSA certified by SIRA

    • S-SPECIAL
      • 1"1/4 bore
      • K-CABLE PET 4X0.25
        • Polyethylene cable IGUS 4 conductors



Out of Stock
2960-FORC000178
SENSY Annular Cell, 50,000 lbs Capacity, 1"bore, 300% Breaking Load, 16mA output, 6m Cable, CSA View More
  • Load Cell Capacity: 50,000 lbs
  • Breaking Load: 300%
  • Maximum Operating Load: 150%
  • Accuracy Class: 0.25%
  • Protection: IP66
  • Output Signal (sensitivity): 16 mA
  • Cable Length: 6m
  • Included Options:
    • BD49-TR-M12-I-A2
      • Housing for amplifier +M12 stainless steel conn.

    • EX-C6-CSA
      • 4-20mA output, 2 wires
      • CSA CA/US Class 1 Div1 Certified

    • S-SPECIAL
      • 1" bore - Height 54mm

    • W-BT-40 CP -40
      • TR -40°C Comp. -40°C


10 - 12 weeks
5195-10MN
SENSY Load Cell Compression Washer, Capacity 10MN, 300% Breaking Load, IP65, 0.3% Acc, 12m Cable View More
  • Load Cell Capacity: 10 MN (meganewton)
  • Construction: Nickle Plated Steel
  • Breaking Load: 300%
  • Maximum Operating Load: 150%
  • Accuracy Class: 0.3%
  • Cable Length: 12m
  • Output Signal (Sensitivity): +/- 1.5m V/V
  • Protection: IP65
  • Included Options: ​E-SGA-ETAL
    • Specific Calibration

4 - 5 weeks
Non-Cancellable / Non-Refundable
Show More Models (47)
Close
Close

Specifications

Brand

Accuracy

  • 1,000 D

Approvals & Certifications

  • CE
  • CSA
  • IECEx
  • Intrinsic Safety Ex II 1 GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80° C Da

Cable Length

  • 10 to 39 feet (3 to 12 metres)

Communication

  • RS-232C, RS-485

Enclosure, Body Material

  • Alloy Steel (2965)
  • Aluminum (2962)
  • Stainless Steel (2960)

Environmental Protection

  • IP66

Excitation Voltage

  • 10 Vdc

Insulation Resistance

  • > 5,000 megaohms

Linearity

  • Linearity Error: < ± 0.10 % (Class 0.1) to < ± 0.25 % (Class 0.25) of Full Scale

Load Limit

  • 150 % of Full Scale

Operating Temperature

  • Optional High Service Temperature: 180° C (356° F)

Repeatability

  • Repeatability Error: < ± 0.03 % (Class 0.25) < ± 0.1 % (Class 0.1) of Full Scale

Resistance

  • Input/Output: 702 ± 2 ohms

Sensitivity

  • < ± 0.3 %
  • 2 mV/V

Service Temperature

  • -30° to 70° C (-22° to 158° F)

Static Lateral Force

  • 50 % of Full Scale

Storage Temperature

  • -50° to 85° C (-58° to 185° F)

Temperature Coefficient

  • < ± 0.035 % of Full Scale/10° C (18° F)
  • < ± 0.05 % of Full Scale/10° C (18° F)

Zero Balance

  • ± 0.02 mV/V
